921015 - Ariens Deluxe 27" Track Snow Blower, Briggs & Stratton (SN: 000101 & Above) Cables And Controls Parts Diagram

Deluxe 27" Track Snow Blower, Briggs & Stratton

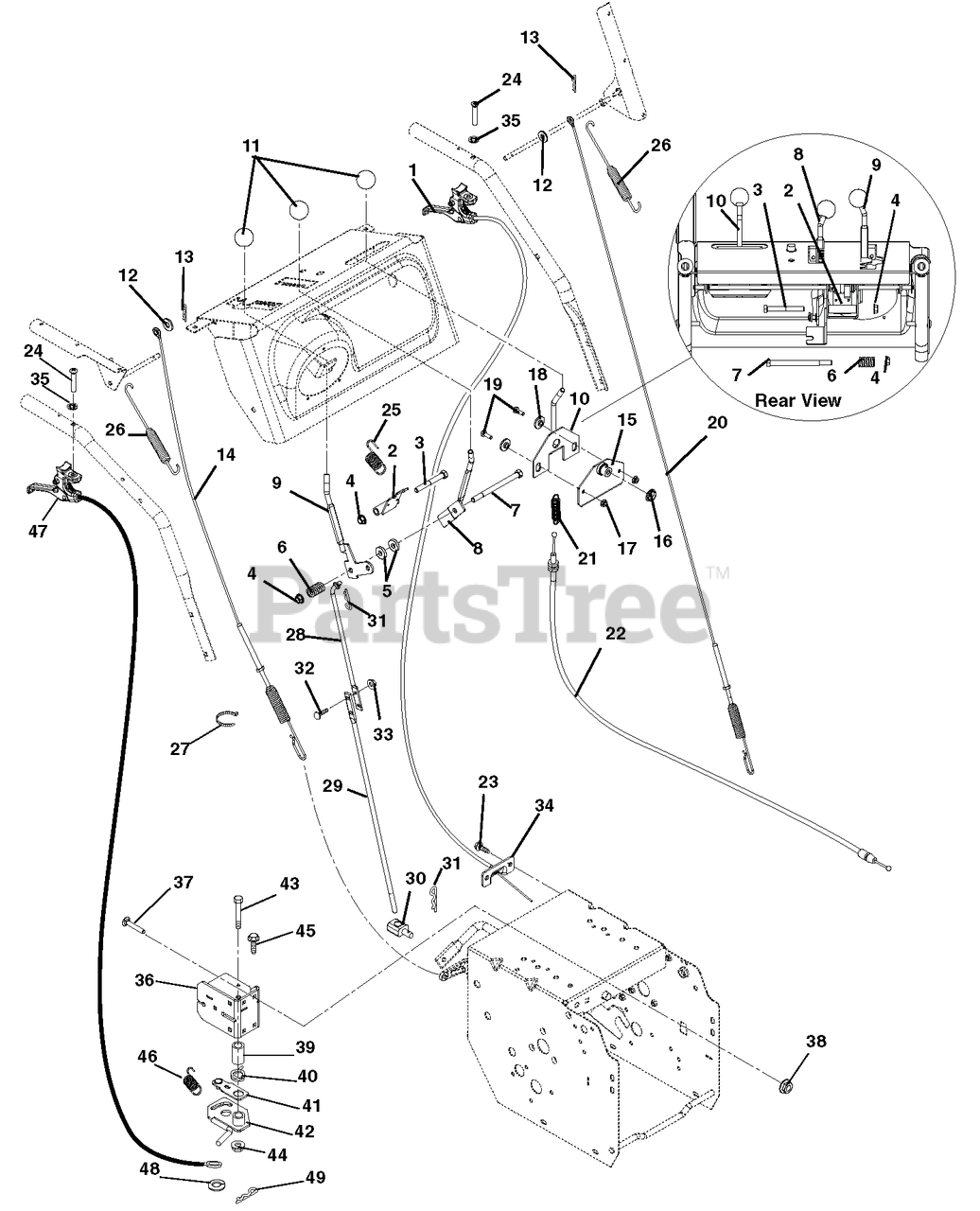

Cables And Controls Parts Diagram

  • Title

1

Ariens 06900302

CABLE-TRIGGER-REMOTE WHEEL-DEL

Note: (921012, 013, 020)

$58.99

$

In Stock, only 4 left!

0

2

Ariens 00356900

ARM, INTERLOCK

$40.99

$

Usually ships in 4-12 days

0

3

Ariens 05957800

@BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 19

0

4

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

Note: (921013, 016, 017, 018, 020, 306, 307, 311, 312)

$2.99

$

In Stock, Qty 20+

0

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

Note: (921012, 015, 305)

$2.99

$

In Stock, Qty 20+

0

6

Ariens 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, Qty 8

0

7

Ariens 05957700

@BLT-HEX .38-16X5.00 GR5 YWZC
(Superseded to 05901927)

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 00379100

CONTROL, DEFLECTOR

Note: (921013, 016, 017, 018, 020, 306, 307, 311, 312)

$43.99

$

Usually ships in 4-12 days

0

9

Ariens 00396900

LEVER, SHIFT

$52.99

$

In Stock, only 1 left!

0

10

Ariens 00180300

LEVER, CHUTE CONTROL

Note: (921017, 018)

$49.99

$

In Stock, only 1 left!

0

11

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

Note: (921017, 018)

$10.99

$

In Stock, only 1 left!

0

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

Note: (921012, 015, 305)

$10.99

$

In Stock, only 1 left!

0

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

Note: (921013, 016, 020, 306, 307, 311, 312)

$10.99

$

In Stock, only 1 left!

0

12

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

13

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

14

Ariens 06900312

CABLE, ATTACHMENT

$37.99

$

In Stock, only 3 left!

0

15

Ariens 00184800

MOUNT, CHUTE CONTROL

Note: (921017, 018)

$59.99

$

Usually ships in 4-12 days

0

16

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

Note: (921017, 018)

$2.49

$

In Stock, Qty 7

0

17

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (921017, 018)

$1.49

$

In Stock, Qty 8

0

18

Ariens 05500004

BSHG-FLG .265X.448X.243X1.00

Note: (921017, 018)

$3.99

$

In Stock, only 1 left!

0

19

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

Note: (921017, 018)

$1.49

$

In Stock, Qty 12

0

20

Ariens 06900301

CABLE, TRACTION - DELUXE

$22.99

$

In Stock, only 2 left!

0

21

Ariens 08310900

SG-TENS .048X.44X1.75 WLD 9

Note: (921017, 018)

$6.49

$

In Stock, Qty 8

0

22

Ariens 06900407

CABLE, CHUTE LOCK

Note: (921017, 018)

$37.99

$

In Stock, only 2 left!

0

23

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (921012, 013, 020)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06100007

SCR-MCH .25-20X1.50 OVAL HD
(Superseded to 06100236)

Note: (921012, 013, 014, 015, 016, 020, 311, 312)

$3.99

$

In Stock, only 1 left!

0

25'

Ariens 08337000

SPRING-EXT .047X.438X1.45

$6.49

$

In Stock, Qty 10

0

26

Ariens 08300017

SG-TENS .056X.60X4.40

$6.49

$

In Stock, Qty 13

0

27

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

28

Ariens 03917000

ROD, SHIFT-UPPER

$32.99

$

Usually ships in 4-12 days

0

29

Ariens 03917100

ROD, SHIFT-LOWER

$26.99

$

Usually ships in 4-12 days

0

30

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$8.49

$

In Stock, Qty 7

0

31

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

32

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

33

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

34

Ariens 00956051

BRACKET, CABLE MOUNT

Note: (921012, 013, 020)

$38.99

$

Usually ships in 4-12 days

0

35

Ariens 06305200

WSHR-LK-INT .250 TH TYA

Note: (921012, 013, 014, 015, 016, 020, 311, 312)

$3.49

$

Usually ships in 4-12 days

0

36

Ariens 03293951

BRACKET, HEIGHT ADJUSTER

Note: (921014, 015, 016, 311, 312)

$23.99

$

Usually ships in 4-12 days

0

37

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (921014, 015, 016, 311, 312)

$1.49

$

Usually ships in 4-12 days

0

38

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (921014, 015, 016, 311, 312)

$1.49

$

In Stock, Qty 8

0

39

Ariens 05500106

BSHG-SLV .385X.500X1.045

Note: (921014, 015, 016, 311, 312)

$1.99

$

In Stock, Qty 20+

0

40

Ariens 08300015

SG-TORS .067X.88

Note: (921014, 015, 016, 311, 312)

$2.49

$

In Stock, Qty 5

0

41

Ariens 03376200

ARM, OVERTRAVEL

Note: (921014, 015, 016, 311, 312)

$11.99

$

Usually ships in 4-12 days

0

42

Ariens 03294000

LOCK, HEIGHT ADJUSTER

Note: (921014, 015, 016, 311, 312)

$11.99

$

Usually ships in 4-12 days

0

43

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

Note: (921014, 015, 016, 311, 312)

$1.99

$

In Stock, only 3 left!

0

44

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

Note: (921014, 015, 016, 311, 312)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (921014, 015, 016, 311, 312)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 08300103

SPRING-EXT .047 X .438 X 1.85

Note: (921014, 015, 016, 311, 312)

$2.49

$

In Stock, Qty 16

0

47

Ariens 06900331

CABLE, TRACK REMOTE

Note: (921014, 015, 016, 311, 312)

$37.99

$

Usually ships in 4-12 days

0

48

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (921014, 015, 016, 311, 312)

$0.99

$

In Stock, only 3 left!

0

49

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

Note: (921014, 015, 016, 311, 312)

$0.99

$

In Stock, Qty 5

0
