921024 - Ariens Deluxe 24" Snow Blower, Ariens AX 254cc engine (SN: 100000 - 149999) Friction Drive Parts Diagram

Deluxe 24" Snow Blower, Ariens AX 254cc engine

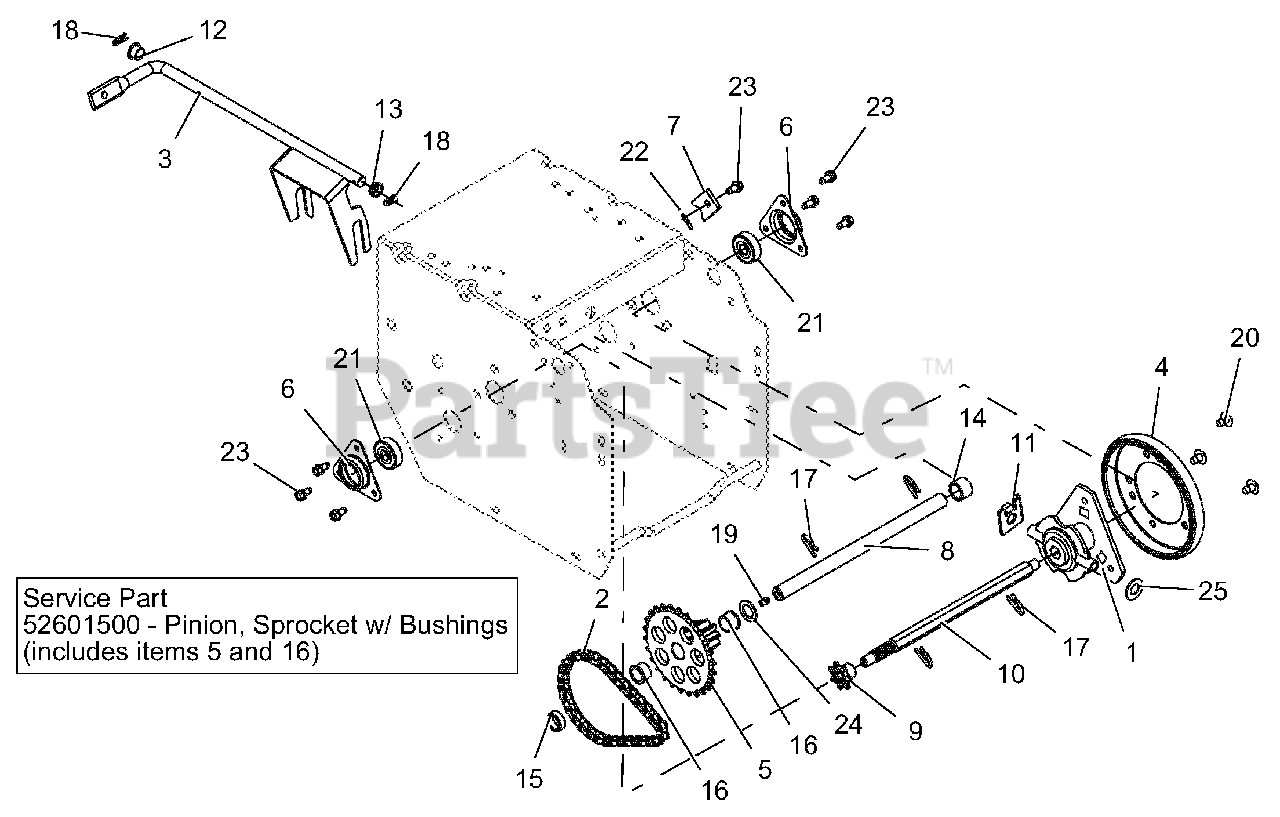

Friction Drive Parts Diagram

  • Title

1

Ariens 00383100

CARRIER, DRIVE DISK

$120.99

$

In Stock, Qty 5

0

2

Ariens 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, only 1 left!

0

3

Ariens 04655300

WELDMENT, SHIFT FORK

$46.99

$

Usually ships in 4-12 days

0

4

Ariens 00170800

FRICTION, DISC
(Superseded to 09475300)

$36.99

$

In Stock, Qty 11

0

5

Ariens 00190600

PINION & SPROCKET

$

$

Not available

6

Ariens 00383000

FLANGE, BEARING

$13.99

$

In Stock, only 2 left!

0

7

Ariens 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

8

Ariens 00657900

SHAFT, PINION

$31.99

$

In Stock, only 2 left!

0

9

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 04149500

SHAFT, HEX W/SPLINE

$31.99

$

In Stock, only 3 left!

0

11

Ariens 04671900

BRACKET, FORMED - SHIFT FORK

$19.99

$

In Stock, only 3 left!

0

12

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

13

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 9

0

14

Ariens 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, only 2 left!

0

15

Ariens 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 2 left!

0

16

Ariens 05500111

BSHG-FLG .625X.750X.500X.875

$2.49

$

In Stock, Qty 20+

0

17

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 19

0

18

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

19

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

20

Ariens 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

21

Ariens 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

22

Ariens 05800205

@PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 12

0

25

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0
