921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Brush Drive Unit Parts Diagram

28" Power Brush, Subaru

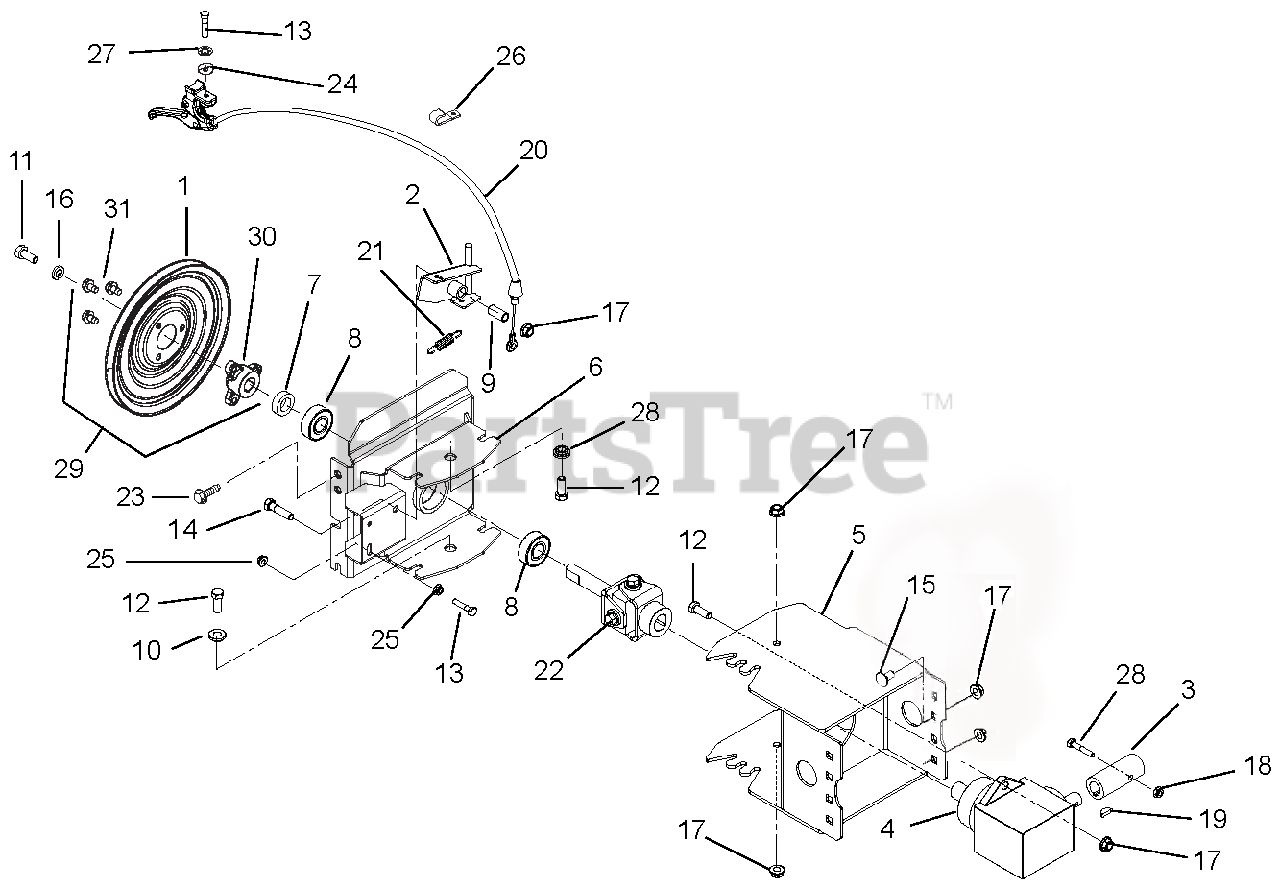

Brush Drive Unit Parts Diagram

  • Title

1

Gravely 00268951

PULLEY,SPIN FORM SINGLE GROOVE

$63.99

$

Usually ships in 4-12 days

0

2

Gravely 00262251

ARM, PIVOT LOCK

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 00297800

HUB, COUPLING

$59.99

$

Usually ships in 4-12 days

0

4

Gravely 02499300

GEAR BOX ASSEMBLY

$416.99

$

Usually ships in 4-12 days

0

5

Gravely 53216200

ADAPTER WITH DECAL,BRUSH FRAME

$125.99

$

Usually ships in 4-12 days

0

6

Gravely 03295351

ADAPTER, FRAME-20000 SERIES

$171.99

$

Usually ships in 4-12 days

0

7

Gravely 03634600

SPACER .755X1.250X.370

$8.49

$

In Stock, only 2 left!

0

8

Gravely 05412000

BRG-BALL .750X1.781X.61

$15.99

$

In Stock, Qty 20+

0

9

Gravely 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05515800

BSHG-FLG .406X.88X.270X.140

$9.99

$

In Stock, Qty 8

0

11

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

12

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

14

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

16

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

17

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 13

0

19

Gravely 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 13

0

20

Gravely 06900324

CABLE, REMOTE BRUSH LOCK
(Superseded to 06900517)

$58.99

$

In Stock, only 2 left!

0

21

Gravely 08300029

SG-TENS .06X.46X2.00

$6.49

$

Usually ships in 4-12 days

0

22

Gravely 53216300

U-JOINT ASSY

$211.99

$

Usually ships in 4-12 days

0

23

Gravely 07414400

SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.99

$

In Stock, Qty 12

0

24

Gravely 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, only 4 left!

0

25

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06909400

J-CLAMP

$3.99

$

In Stock, only 4 left!

0

27

Gravely 06305200

WSHR-LK-INT .250 TH TYA

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

29

Gravely 52001800

PULLEY WITH HUB

Note: (Includes items 1, 30, 31)

$73.99

$

In Stock, only 1 left!

0

30

Gravely 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.99

$

Usually ships in 4-12 days

0

31

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0
