921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Brush Head Parts Diagram

28" Power Brush, Subaru

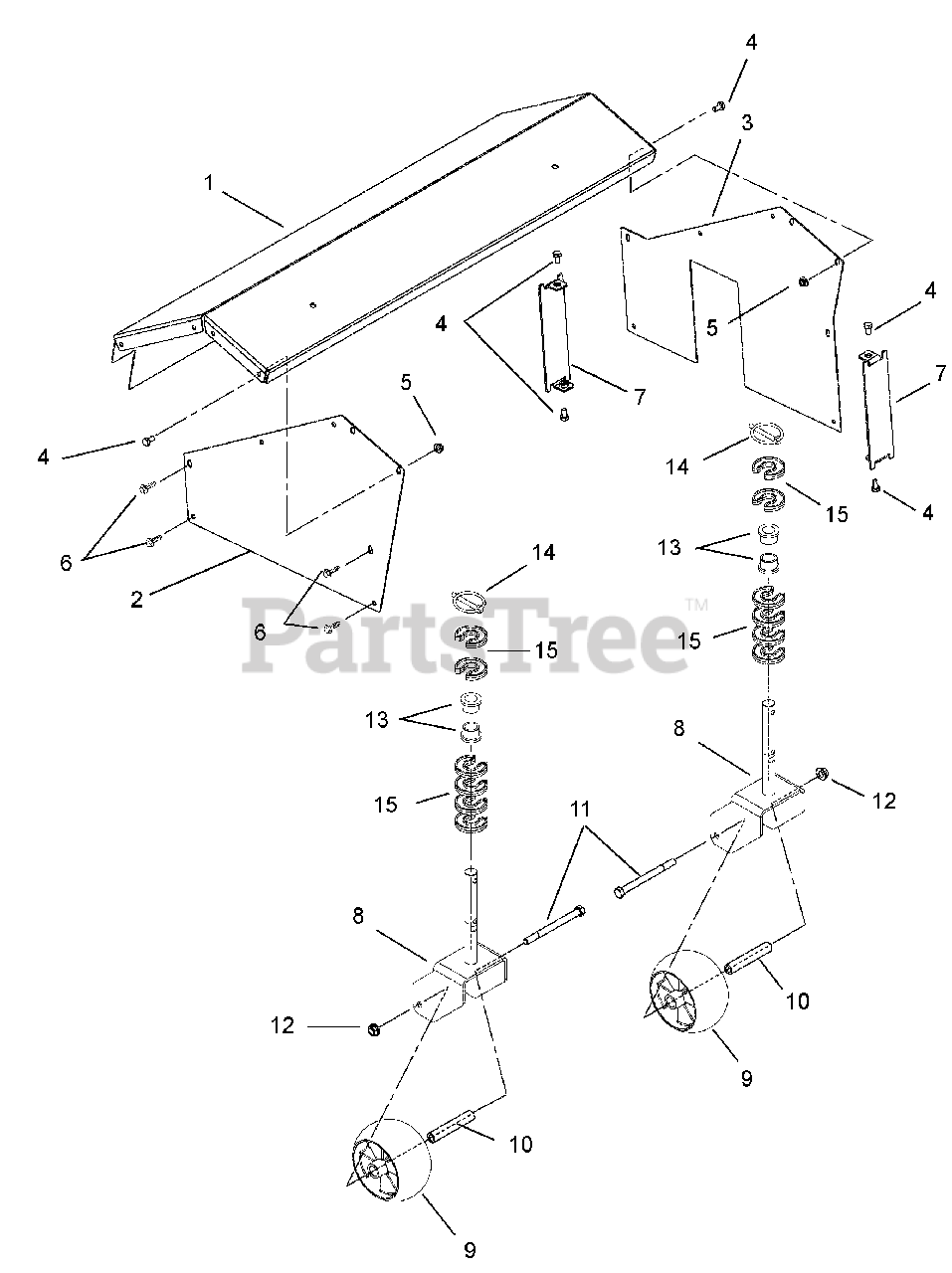

Brush Head Parts Diagram

  • Title

1

Gravely 53216100

Cover with Decals, 28" Brush

$

$

Not available

2

Gravely 00258159

Cover, Right Hand Side – Brush

$50.99

$

Usually ships in 4-12 days

0

3

Gravely 00256659

Cover, Left Hand Side – Brush

$50.99

$

Usually ships in 4-12 days

0

4

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

5

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

6

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00267451

Cover, End

$16.99

$

Usually ships in 4-12 days

0

8

Gravely 03278500

Fork, Caster

$

$

Not available

9

Gravely 03905900

Wheel, Anti-Scalp

$10.99

$

In Stock, Qty 20+

0

10

Gravely 00188000

Spacer, Caster Wheel

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 05970400

Bolt, Hex .38-16 x 4.50 Grade 5
(Superseded to 05901938)

$4.99

$

Usually ships in 4-12 days

0

12

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03985500

Bushing, Flange .75 x .75 x 1.0

$5.99

$

In Stock, Qty 11

0

14

Gravely 06700204

Pin, Lynch .25 x 1.25
(Superseded to 06700226)

$3.99

$

In Stock, Qty 18

0

15

Gravely 03265100

Clip, HOC Fixed

$3.49

$

In Stock, Qty 20+

0
