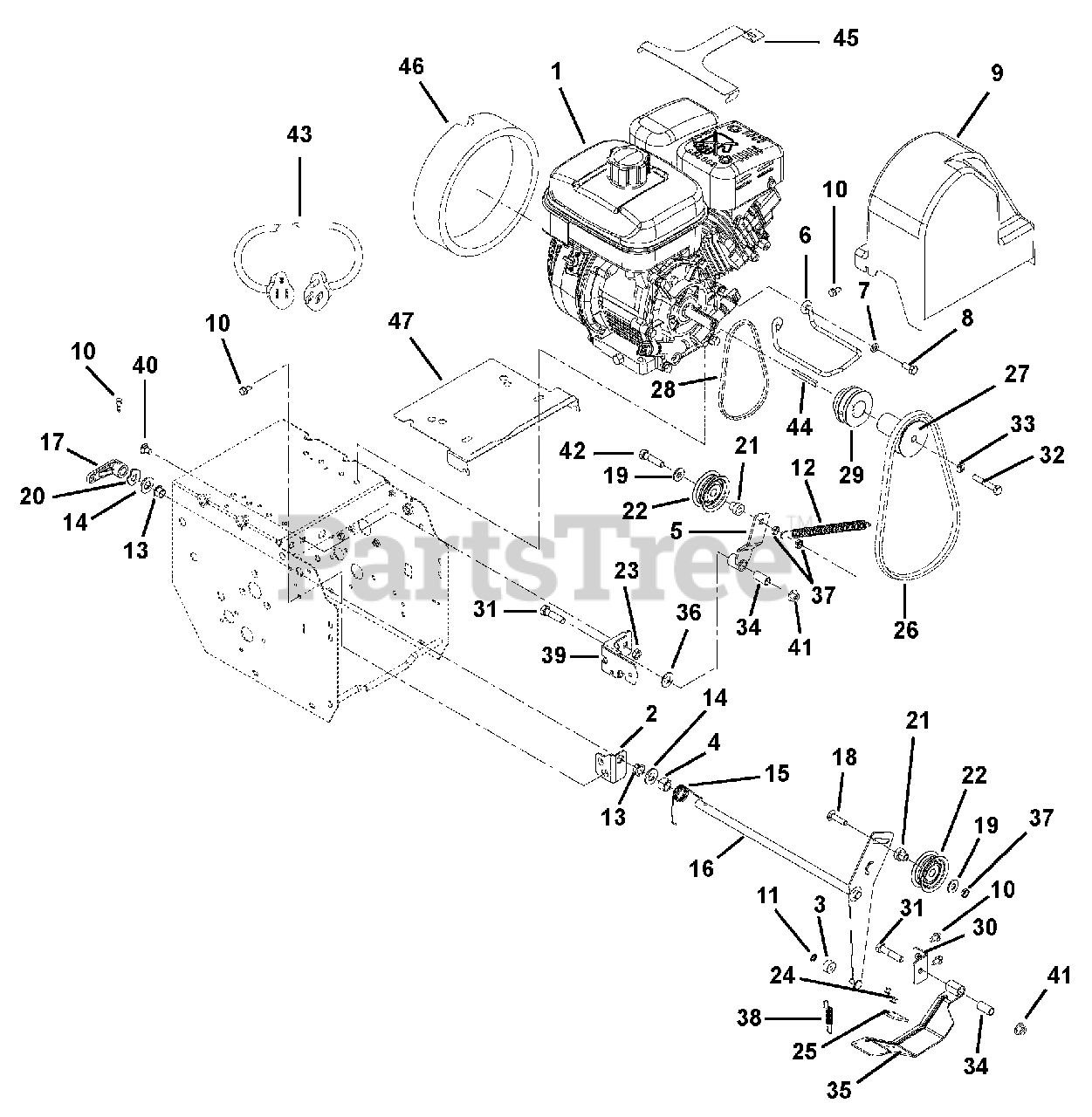

921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Engine And Belt Drive Parts Diagram

28" Power Brush, Subaru

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 08200611

Engine, 6HP Subaru EX17

$

$

Not available

Gravely 21547200

Plug, Spark

$3.49

$

In Stock, Qty 6

0

2

Gravely 00495051

Bracket, Mount- Idler Arm

$12.99

$

Usually ships in 4-12 days

0

3

Gravely 05500820

Bushing, Sleeve

$2.49

$

In Stock, only 2 left!

0

4

Gravely 05500107

Bushing, Sleeve

$1.49

$

In Stock, only 3 left!

0

5

Gravely 00493600

Weldment, Traction Idler Arm

$16.99

$

Usually ships in 4-12 days

0

6

Gravely 03731800

Belt Finger

$17.99

$

Usually ships in 4-12 days

0

7

Gravely 06307400

Washer, Locking .312 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

8

Gravely 05947300

Bolt, Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04209900

Belt Cover

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 07400034

Screw, Tapping .25-20 x .50 Hex Washer Head, Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05717600

Ring, Retaining-External .250 x .010

$0.99

$

In Stock, Qty 17

0

12

Gravely 08316400

Spring, Extension
(Superseded to 08300538)

$11.99

$

In Stock, Qty 11

0

13

Gravely 05500026

Bushing, Polyliner .50 Split

$2.99

$

In Stock, Qty 20+

0

14

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 08300326

Spring, Torsion

$3.49

$

In Stock, only 1 left!

0

16

Gravely 00495100

Weldment, Attachment Idler Arm

$

$

Not available

17

Gravely 01987100

Arm, Clutch - Attachment

$17.99

$

Usually ships in 4-12 days

0

18

Gravely 06200008

Bolt-Round Head Square Short Neck .31-18 x 1.25 Grade 5
(Superseded to 06200310)

$1.49

$

In Stock, only 1 left!

0

19

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

20

Gravely 06400005

Washer, Wave .50 x .75 x .015, .13 Free Height

$2.99

$

In Stock, Qty 10

0

21

Gravely 01213100

Spacer, Bearing

$3.49

$

In Stock, Qty 6

0

22

Gravely 02457400

Idler
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

23

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06800028

Rivet-Pop .187 (included with item 35)
(Superseded to 06800140)

Note: (included with item 35)

$0.99

$

In Stock, Qty 10

0

25

Gravely 00180500

Brake Pad (included with item 35)

Note: (included with item 35)

$10.99

$

In Stock, only 4 left!

0

26

Gravely 07238500

V-Belt HA, Attachment

$28.99

$

In Stock, only 3 left!

0

27

Gravely 00493400

Sheave, Attachment Drive
(Superseded to 52006600)

$52.99

$

In Stock, only 1 left!

0

28

Gravely 07200111

V-Belt 3L, Traction

$21.99

$

In Stock, Qty 20+

0

29

Gravely 00187900

Pulley, Traction

$51.99

$

Usually ships in 4-12 days

0

30

Gravely 00495251

Bracket, Mount- Brake

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

32

Gravely 05901401

Bolt, Hex .31-24 x 1.75 Grade 5
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

33

Gravely 06307400

Washer, Locking .312 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

34

Gravely 05500106

Bushing, Sleeve

$1.99

$

In Stock, Qty 9

0

35

Gravely 52000500

Brake Arm W/Pad

$22.99

$

In Stock, only 3 left!

0

36

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06500011

Nut, Locking Center Jam .31-18
(Superseded to 06500913)

$0.99

$

In Stock, Qty 9

0

38

Gravely 08300104

Spring, Extension

$3.49

$

In Stock, Qty 9

0

39

Gravely 00657051

Weldment, Frame Bracket

$30.99

$

Usually ships in 4-12 days

0

40

Gravely 06212200

Bolt, Round Head Square Short Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06542000

Nut, Top Flange Lock .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

42

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

43

Gravely 02483100

Cord, Extension 120V

$34.99

$

In Stock, only 4 left!

0

44

Gravely 06606100

Key - SQ, 0.188 x 0.75 x 0.188

$3.99

$

In Stock, only 1 left!

0

45

Gravely 04258451

Guard, Snow - Subaru EX17

$28.99

$

Usually ships in 4-12 days

0

46

Gravely 03972500

Foam Cover, Recoil - Subaru

$20.99

$

Usually ships in 4-12 days

0

47

Gravely 03880851

Baffle, Water

$64.99

$

Usually ships in 4-12 days

0
