921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Friction Drive Parts Diagram

28" Power Brush, Subaru

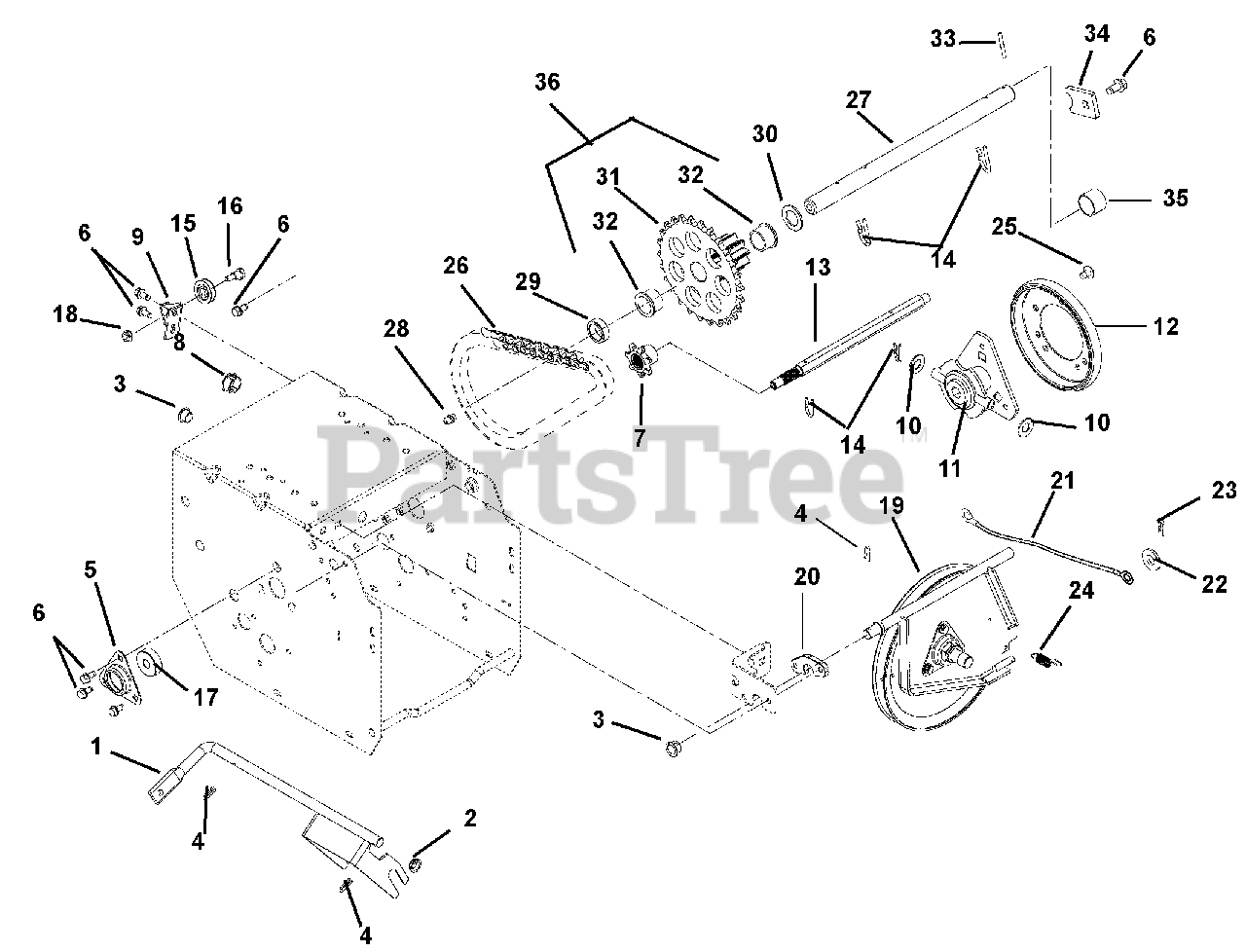

Friction Drive Parts Diagram

  • Title

1

Gravely 00494051

WELDMENT, SHIFT FORK

$84.99

$

Usually ships in 4-12 days

0

2

Gravely 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, only 2 left!

0

3

Gravely 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 15

0

4

Gravely 06944800

CLIP, SPRING

$1.49

$

In Stock, only 3 left!

0

5

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 07500023

PLUG, HOLE - .875" NYLON

Note: (017, 018, 023, 304, 307, 308, 309, 311)

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$5.49

$

In Stock, only 2 left!

0

10

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00383100

CARRIER, DRIVE DISK

$120.99

$

In Stock, only 2 left!

0

12

Gravely 00170800

FRICTION, DISC
(Superseded to 30310700)

$39.99

$

In Stock, Qty 20+

0

13

Gravely 04149500

SHAFT, HEX W/SPLINE

$31.99

$

Usually ships in 4-12 days

0

14

Gravely 06714500

PIN, SPRING CLIP

$2.99

$

In Stock, Qty 20+

0

15

Gravely 07300120

SHEAVE-4.50X1.127X1.30 ENGINE

$

$

Not available

16

Gravely 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 05435200

BRG-BALL .437X1.375X.437

$10.99

$

In Stock, Qty 20+

0

18

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

19

Gravely 52100200

PLATE, SWING - ASSEMBLY

$128.99

$

Usually ships in 4-12 days

0

20

Gravely 05500113

SPACER, SWING GATE

$6.49

$

In Stock, only 2 left!

0

21

Gravely 06900313

CABLE, TRACTION - TRACTOR

$16.99

$

In Stock, only 1 left!

0

22

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 1 left!

0

25

Gravely 07400009

SCR-TAP SERRDHDTX .31-18X.50BP
(Superseded to 07411500)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 02466200

CHAIN - #41, 32 PITCHES

$8.49

$

In Stock, Qty 10

0

27

Gravely 00657900

SHAFT, PINION

$31.99

$

In Stock, only 1 left!

0

28

Gravely 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 20+

0

29

Gravely 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, only 1 left!

0

30

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 00190600

PINION & SPROCKET

Note: (included in item 36)

$

$

Not available

32

Gravely 05500111

BSHG-FLG .625X.750X.500X.875

Note: (included in item 36)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 05800205

PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

In Stock, only 2 left!

0

34

Gravely 00503500

TAB, ANTI ROTATION

$5.49

$

In Stock, only 2 left!

0

35

Gravely 05500029

SPACER, .635X.880X.611

$2.99

$

In Stock, only 2 left!

0

36

Gravely 52601500

PINION & SPROCKET W/BUSHINGS

Note: (includes items 31 and 32)

$46.99

$

Usually ships in 4-12 days

0
