921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Handlebars And Controls Parts Diagram

28" Power Brush, Subaru

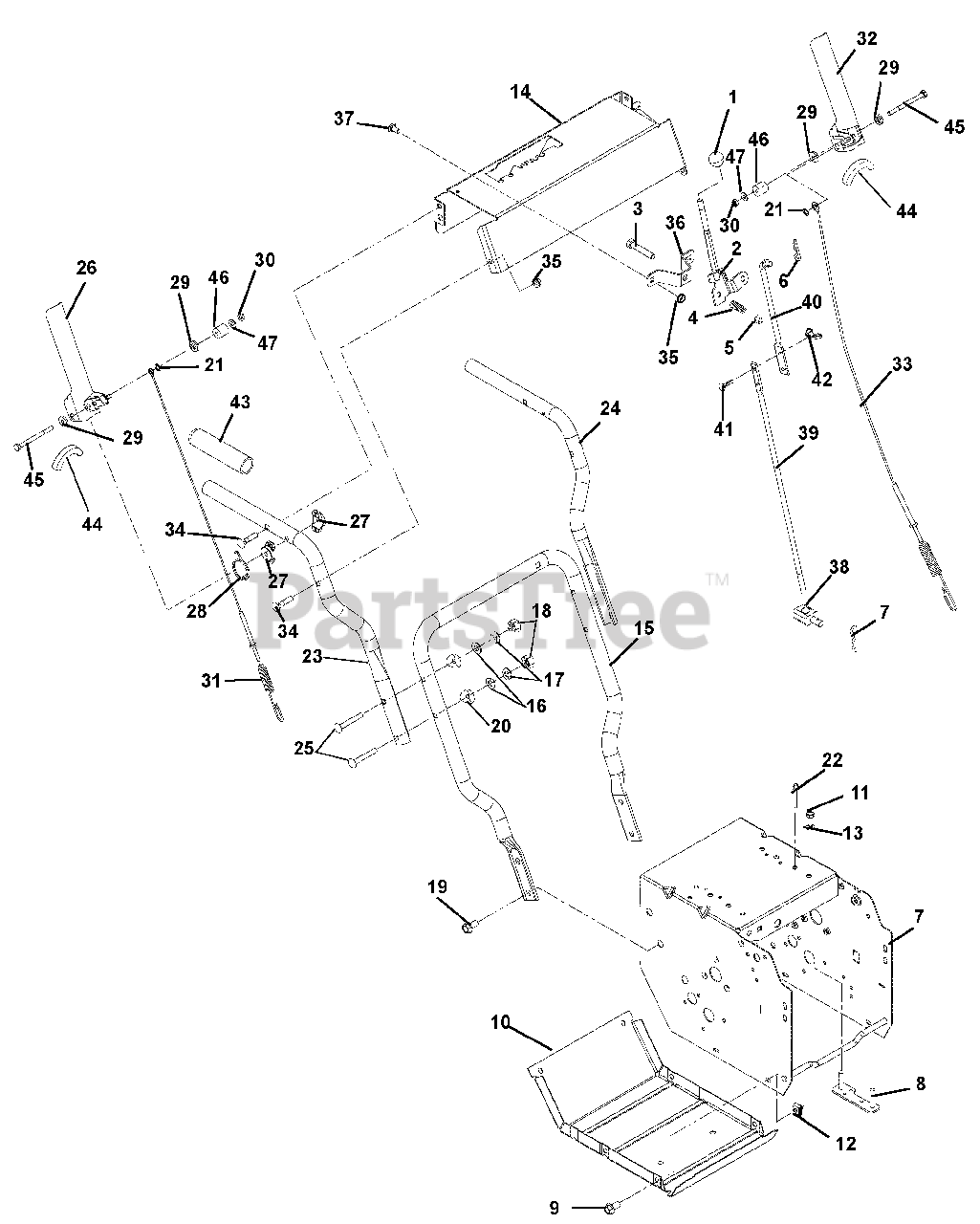

Handlebars And Controls Parts Diagram

  • Title

1

Gravely 07533500

KNOB,BALL -BLACK 1.47" .375-16

$10.99

$

In Stock, only 4 left!

0

2

Gravely 03247900

WMT, SHIFT LEVER

$92.99

$

Usually ships in 4-12 days

0

3

Gravely 05963300

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, only 3 left!

0

5

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00492259

WELDMENT, FRAME

$

$

Not available

8

Gravely 00188400

STRAP, ENGINE BOLT-WELDMENT

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 00492359

COVER, BOTTOM

$49.99

$

In Stock, only 2 left!

0

11

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

12

Gravely 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

14

Gravely 52000800

CONTROL PANEL W/DECAL - BRUSH

$

$

Not available

15

Gravely 00494451

HANDLEBAR, LOWER - COMPACT

$94.99

$

Usually ships in 4-12 days

0

16

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

19

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 4 left!

0

20

Gravely 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, only 4 left!

0

21

Gravely 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 7

0

22

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, Qty 5

0

23

Gravely 03785151

HANDLEBAR, UPPER-RH 920 BRUSH

$

$

Not available

24

Gravely 00656351

HANDLEBAR, UPPER - LH COMP/DEL

$38.99

$

Usually ships in 4-12 days

0

25

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, Qty 12

0

26

Gravely 00656251

HANDLEBAR, UPPER - RH COMP/DEL

$87.99

$

In Stock, only 1 left!

0

27

Gravely 05500040

SPACER, HANDLEBAR

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 08300026

SPRING, TORSION

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 00399300

BSHG, FLG .266X.42X.150 PM

$4.49

$

In Stock, Qty 7

0

30

Gravely 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 6

0

31

Gravely 06900303

CABLE, ATTACHMENT, COMPACT

$26.99

$

In Stock, only 2 left!

0

32

Gravely 00398151

PADDLE, CLUTCH - LH COMPACT

$42.99

$

In Stock, only 2 left!

0

33

Gravely 06900304

CABLE, TRACTION - COMPACT

$27.99

$

In Stock, only 4 left!

0

34

Gravely 06200009

BLT-RDHDXLSQNK .31-18X1.5 G5YZ
(Superseded to 06119100)

$

$

Not available

35

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 00398451

BRACKET, SHIFT MOUNT

$

$

Not available

37

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$8.49

$

In Stock, only 2 left!

0

39

Gravely 00656600

ROD, SHIFT - LOWER
(Superseded to 00656667)

$21.99

$

Usually ships in 4-12 days

0

40

Gravely 00494800

ROD, SHIFT - UPPER
(Superseded to 00494867)

$35.99

$

Usually ships in 4-12 days

0

41

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 13

0

43

Gravely 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, only 2 left!

0

44

Gravely 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.99

$

In Stock, Qty 9

0

45

Gravely 05965300

BLT-HEX .25-20X3.25 YWZC

$2.49

$

In Stock, Qty 12

0

46

Gravely 00589800

BSHG, SLV .266 X .750 X .750

$3.99

$

Usually ships in 4-12 days

0

47

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0
