921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Handlebars And Controls Parts Diagram

28" Power Brush, Subaru

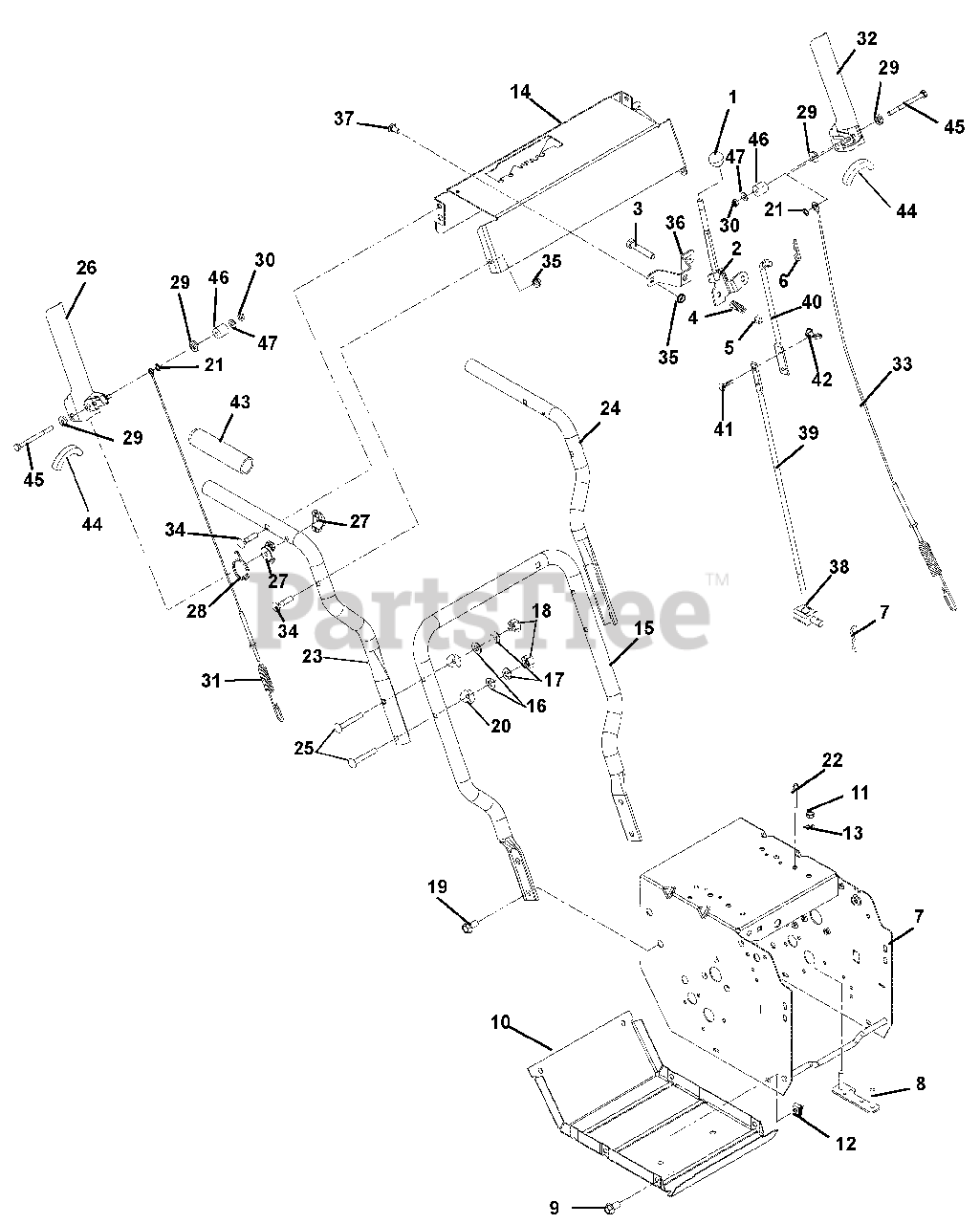

Handlebars And Controls Parts Diagram

  • Title

1

Gravely 07533500

Knob, Ball-Black 1.47, .375-16

$9.99

$

In Stock, only 4 left!

0

2

Gravely 03247900

Weldment, Shift Lever

$90.99

$

Usually ships in 4-12 days

0

3

Gravely 05963300

Bolt, Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, Qty 12

0

4

Gravely 08335700

Spring, Compression

$9.49

$

Usually ships in 4-12 days

0

5

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 17

0

7

Gravely 00492259

Weldment, Frame

$

$

Not available

8

Gravely 00188400

Strap, Engine Bolt Weldment

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 05900019

Bolt, Hex Washer Head .25-20 x .75 Grade 5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00492359

Cover Bottom

$48.99

$

Usually ships in 4-12 days

0

11

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

12

Gravely 07009000

Nut, Retainer .25-20 x .56

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06307400

Washer, Locking .31 x .097 Heavy
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

14

Gravely 52000800

Control Panel with Decals

$

$

Not available

15

Gravely 00494451

Handlebar, Lower

$92.99

$

Usually ships in 4-12 days

0

16

Gravely 06435700

Washer, Flat Steel .38 x .845 x .83
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

17

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06530200

Nut, Locking Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

19

Gravely 07028500

Bolt Serrated Hex Flange Washer Head .38-16 x .75 Grade 5
(Superseded to 07001824)

$1.49

$

In Stock, only 2 left!

0

20

Gravely 07500005

Spacer, Handlebar

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 05717600

Ring, Retaining, External .25 x .010

$0.99

$

In Stock, Qty 17

0

22

Gravely 06800028

Rivet-Pop, .187
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

23

Gravely 03785151

Handlebar, Upper RH

$

$

Not available

24

Gravely 00656351

Handlebar, Upper LH

$37.99

$

Usually ships in 4-12 days

0

25

Gravely 06221600

Bolt, Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 00656251

Paddle, Clutch - RH

$85.99

$

In Stock, only 2 left!

0

27

Gravely 05500040

Bushing

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 08300026

Spring, Torsion

$5.99

$

Usually ships in 4-12 days

0

29

Gravely 00399300

Bushing, Flange

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 06530900

Nut, Jam Nylon .250-20 With Nylon Locking Type Insert

$0.99

$

In Stock, Qty 9

0

31

Gravely 06900303

Cable, Attachment

$20.99

$

In Stock, only 2 left!

0

32

Gravely 00398151

Paddle, Clutch - LH

$39.99

$

In Stock, only 4 left!

0

33

Gravely 06900304

Cable, Traction

$25.99

$

In Stock, Qty 11

0

34

Gravely 06200009

Bolt, Round Head Square Extra Long Neck .31-18 x 1.50 Grade 5
(Superseded to 06119100)

$

$

Not available

35

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 00398451

Bracket, Shift Mount

$

$

Not available

37

Gravely 06212200

Bolt, Round Head Square Short Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 00386700

Pivot, Shift Rod

$7.99

$

Usually ships in 4-12 days

0

39

Gravely 00656600

Rod, Shift Lower
(Superseded to 00656667)

$20.99

$

Usually ships in 4-12 days

0

40

Gravely 00494800

Rod, Shift Upper
(Superseded to 00494867)

$34.99

$

Usually ships in 4-12 days

0

41

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

43

Gravely 07518700

Handle Grip
(Superseded to 07500239)

$3.99

$

Usually ships in 4-12 days

0

44

Gravely 07500103

Edging, Clutch Paddle 2.00"

$3.49

$

Usually ships in 4-12 days

0

45

Gravely 05965300

Bolt, Hex .25-20 x 3.25

$1.99

$

Usually ships in 4-12 days

0

46

Gravely 00589800

Bushing, Sleeve

$3.99

$

In Stock, only 1 left!

0

47

Gravely 06437300

Washer, Flat, Steel .281 x .62 x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0
