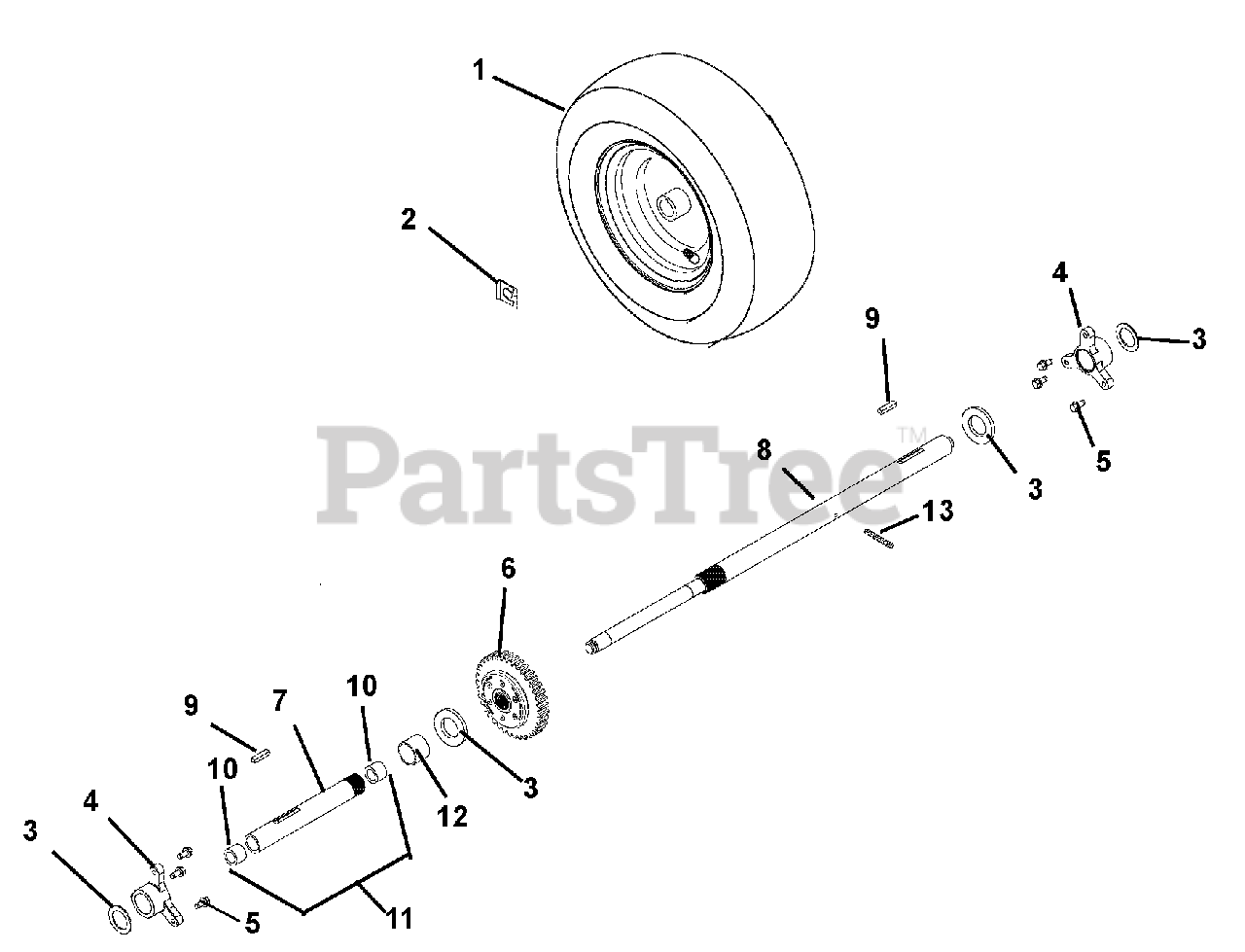

921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Wheels And Axles Parts Diagram

28" Power Brush, Subaru

Wheels And Axles Parts Diagram

  • Title

1

Gravely 07100227

TIRE/WHEEL,RH 15X5.00-6 REMOTE

$123.99

$

In Stock, only 2 left!

0

Gravely 07100228

TIRE/WHEEL,LH 15X5.00-6 REMOTE

$125.99

$

In Stock, only 1 left!

0

Gravely 07100726

TIRE, 15X5.00-6 K478

$62.99

$

Usually ships in 4-12 days

0

2

Gravely 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

3

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 05500829

BUSHING, AXLE

$10.99

$

In Stock, only 2 left!

0

5

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00866000

DIFFERENTIAL, AUTOMATIC
(Superseded to 05013000)

$201.99

$

In Stock, only 2 left!

0

7

Gravely 00865900

AXLE, SHORT - DIFFERENTIAL
(Superseded to 52101200)

$116.99

$

In Stock, only 1 left!

0

8

Gravely 00865800

AXLE, LONG - DIFFERENTIAL

$171.99

$

Usually ships in 4-12 days

0

9

Gravely 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05500002

SPACER, .875X1.125X.551

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 52101200

AXLE, DIFFERENTIAL W/BUSHINGS

Note: (Includes 7 and 10)

$116.99

$

In Stock, only 1 left!

0

12

Gravely 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, only 2 left!

0

13

Gravely 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 9

0
