921026 - Gravely 28" Power Brush, Subaru (SN: 000101 - 034999) Wheels And Axles Parts Diagram

28" Power Brush, Subaru

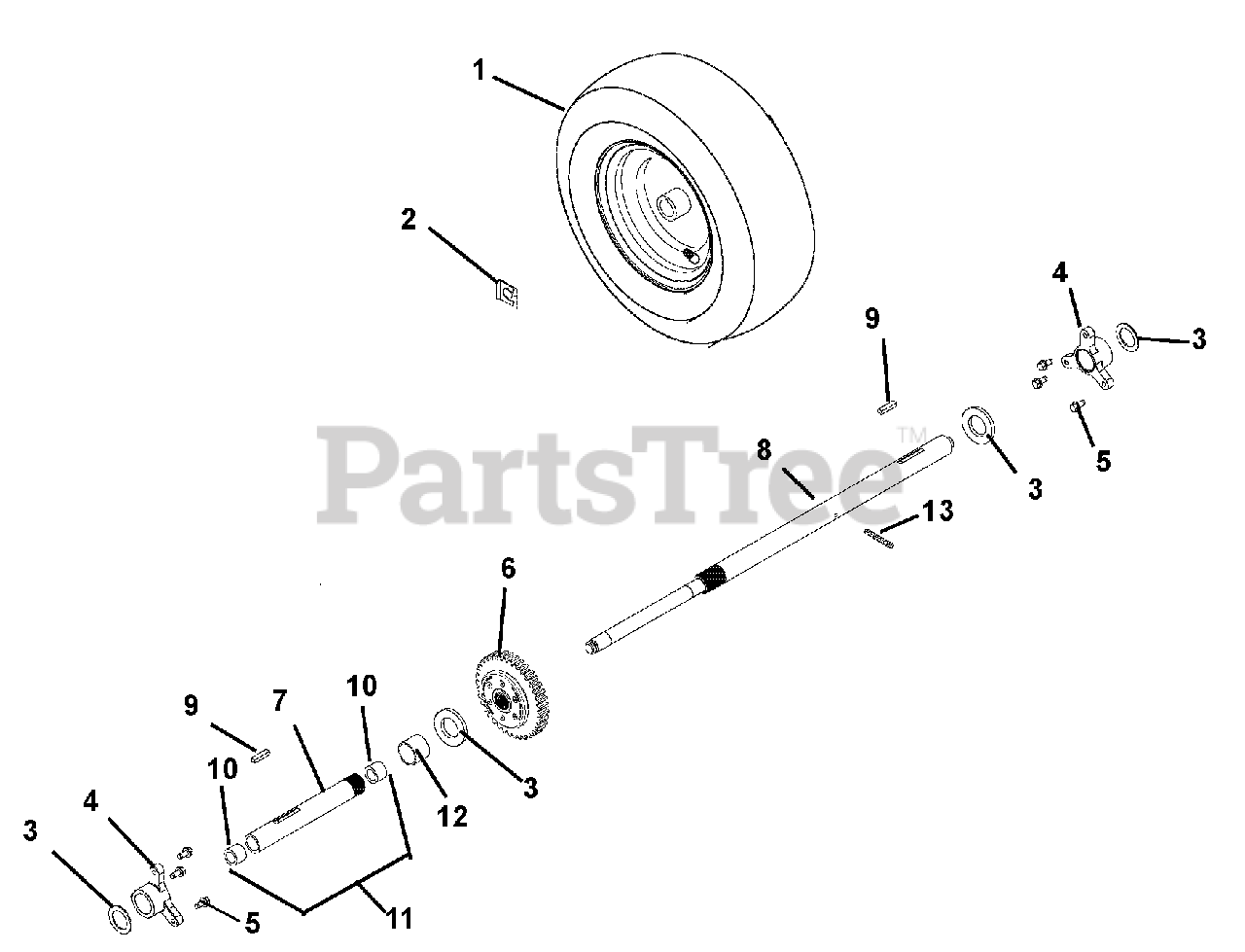

Wheels And Axles Parts Diagram

  • Title

1

Gravely 07100227

Tire/Wheel Assembly RH 15 x 5.00 - 6 Remote

$111.99

$

In Stock, only 3 left!

0

Gravely 07100228

Tire/Wheel Assembly LH 15 x 5.00 - 6 Remote

$113.99

$

Usually ships in 4-12 days

0

Gravely 07100726

Tire, 15 x 5.00 - 6 K478

$69.99

$

In Stock, only 1 left!

0

2

Gravely 05700001

Clip, Snap

$2.49

$

In Stock, only 3 left!

0

3

Gravely 06436300

Washer, Flat Steel 1.010 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 16

0

4

Gravely 05500829

Bushing, Axle

$9.49

$

In Stock, Qty 17

0

5

Gravely 07400034

Screw, Tapping Hex Washer Head .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00866000

Differential Assembly
(Superseded to 05013000)

$193.99

$

In Stock, only 3 left!

0

7

Gravely 00865900

Axle, Short - Differential
(Superseded to 52101200)

$93.99

$

Usually ships in 4-12 days

0

8

Gravely 00865800

Axle, Long - Differential

$168.99

$

Usually ships in 4-12 days

0

9

Gravely 06600002

Key Rectangular .25 x .188 x 1.00

$2.49

$

In Stock, Qty 20+

0

10

Gravely 05500002

Bushing, Sleeve Bronze

$9.99

$

Usually ships in 4-12 days

0

11

Gravely 52101200

Axle, Differential with Bushings (Includes 7 and 10)

Note: (Includes 7 and 10)

$93.99

$

Usually ships in 4-12 days

0

12

Gravely 05500122

Bushing, Sleeve

$3.99

$

In Stock, Qty 5

0

13

Gravely 05800300

Pin, Roll .188 x 1.25

$0.99

$

In Stock, only 4 left!

0
