921026 - Gravely 28" Power Brush, Subaru (SN: 040000 - 041999) Brush Drive Unit Parts Diagram

28" Power Brush, Subaru

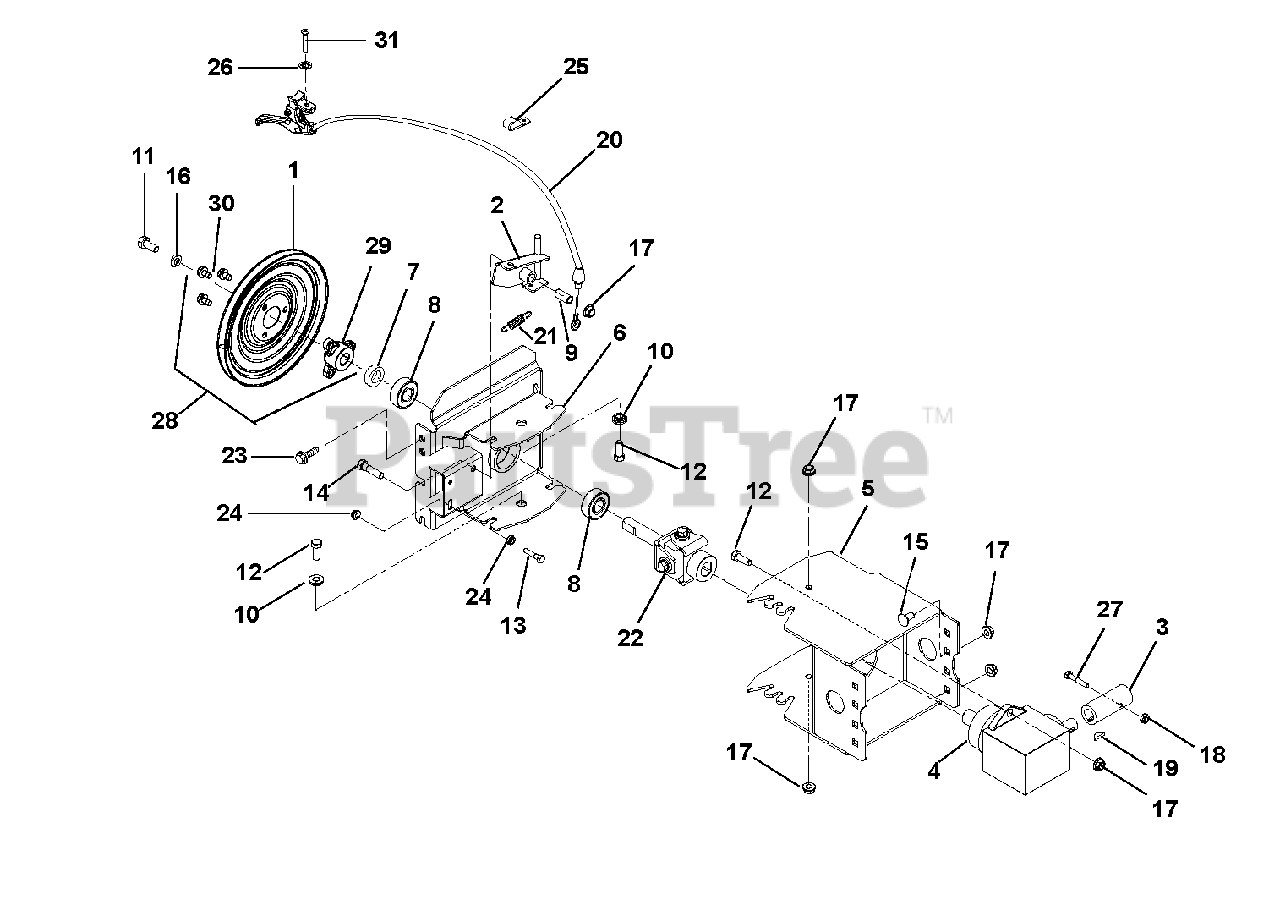

Brush Drive Unit Parts Diagram

  • Title

1

Gravely 00268951

Pulley, Attachment (Included in item 28)

Note: (Included in item 28)

$62.99

$

In Stock, only 1 left!

0

2

Gravely 00262251

Arm, Pivot Lock

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 00297800

Hub, Coupling

$58.99

$

Usually ships in 4-12 days

0

4

Gravely 02499300

Gear Box Assembly

$408.99

$

Usually ships in 4-12 days

0

5

Gravely 53216200

Adapter with Decal, Brush Frame

$122.99

$

Usually ships in 4-12 days

0

6

Gravely 03295351

Adapter, Broom Frame

$168.99

$

Usually ships in 4-12 days

0

7

Gravely 03634600

Spacer

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 05412000

Bearing

$13.99

$

In Stock, Qty 20+

0

9

Gravely 05500106

Bushing, Sleeve

$1.99

$

In Stock, Qty 9

0

10

Gravely 05515800

Bushing, Flange

$9.49

$

In Stock, Qty 9

0

11

Gravely 05947300

Bolt, Hex .31-24 x .75
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05952500

Bolt, Hex .25-20 x 1.50
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

14

Gravely 05958500

Bolt, Hex .38-16 x 1.75
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

15

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

16

Gravely 06307400

Washer, Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

17

Gravely 06542000

Nut Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

18

Gravely 06543500

Nut Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

19

Gravely 06600300

Key, Woodruff .188 x .75 x .313 SAE 9

$1.49

$

In Stock, Qty 7

0

20

Gravely 06900517

Cable, Remote Brush Lock

$52.99

$

In Stock, only 3 left!

0

21

Gravely 08300029

Spring

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 53216300

Universal Joint Assembly

$193.99

$

Usually ships in 4-12 days

0

23

Gravely 07414400

Screw, Tapping Hex Washer Head Thread Rolling .31-18 x .75
(Superseded to 07400127)

$1.49

$

In Stock, only 2 left!

0

24

Gravely 06530100

Nut, Locking Serrated Flange .25-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

25

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 11

0

26

Gravely 06305200

Washer, Lock, Internal .250

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 05964700

Bolt, Hex .25-20 x 1.75
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

28

Gravely 52001800

Pulley Assembly (Includes Items 1, 29, 30)

Note: (Includes Items 1, 29, 30)

$67.99

$

Usually ships in 4-12 days

0

29

Gravely 00268901

Hub, Pulley (Included in item 28)

Note: (Included in item 28)

$9.49

$

In Stock, only 2 left!

0

30

Gravely 07411500

Screw, Tapping Hex Washer Head Thread Rolling .31-18 x .50 (Included in item 28)
(Superseded to 07400124)

Note: (Included in item 28)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06100007

Screw, Machine Oval Head .25-20 x 1.50
(Superseded to 06100236)

$3.99

$

In Stock, only 4 left!

0
