921026 - Gravely 28" Power Brush, Subaru (SN: 040000 - 041999) Brush Frame Parts Diagram

28" Power Brush, Subaru

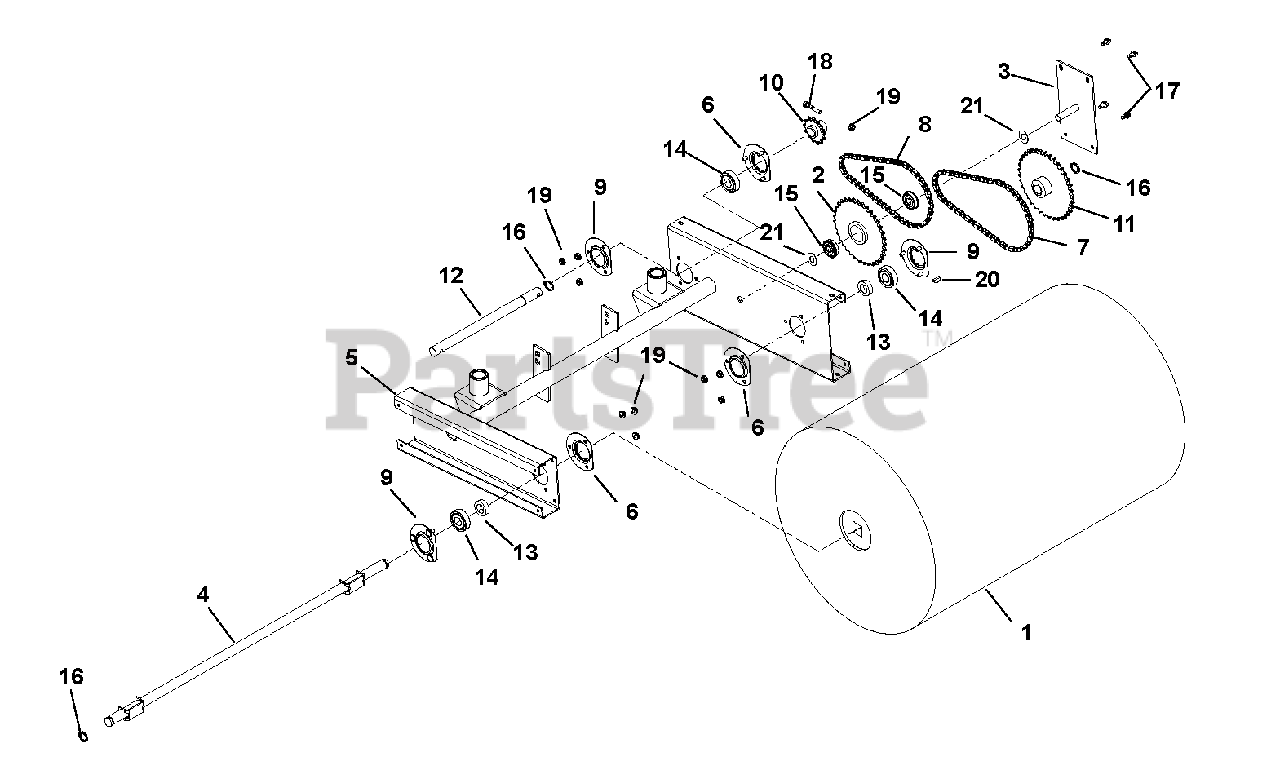

Brush Frame Parts Diagram

  • Title

1

Gravely 00180100

Brush, 18" Diameter x 28" Wide

$581.99

$

In Stock, only 1 left!

0

2

Gravely 00180600

Sprocket, Reduction Idler

$155.99

$

Usually ships in 4-12 days

0

3

Gravely 00180853

Mount, Reduction Idler

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 00181200

Shaft, Brush

$83.99

$

Usually ships in 4-12 days

0

5

Gravely 03278451

Frame, Brush

$198.99

$

Usually ships in 4-12 days

0

6

Gravely 01014200

Bearing Flange

$5.99

$

In Stock, only 3 left!

0

7

Gravely 00368500

Chain, Roller

$28.99

$

Usually ships in 4-12 days

0

8

Gravely 00386100

Chain, Roller

$28.99

$

Usually ships in 4-12 days

0

9

Gravely 00428700

Bearing Flange

$18.99

$

In Stock, only 1 left!

0

10

Gravely 02997400

Sprocket, Drive

$77.99

$

Usually ships in 4-12 days

0

11

Gravely 02997500

Sprocket, Driven

$125.99

$

Usually ships in 4-12 days

0

12

Gravely 02997600

Shaft, Transmission

$39.99

$

Usually ships in 4-12 days

0

13

Gravely 03634600

Spacer

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 05406300

Bearing

$25.99

$

In Stock, only 2 left!

0

15

Gravely 05480000

Bearing

$12.99

$

In Stock, only 3 left!

0

16

Gravely 05714600

Ring, Retaining, External .689 x .078

$2.49

$

In Stock, Qty 5

0

17

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 05964700

Bolt, Hex .25-20 x 1.75
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 11

0

20

Gravely 06600300

Key, Woodruff .188 x .75 x .313 SAE 9

$1.49

$

In Stock, Qty 7

0

21

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0
