921026 - Gravely 28" Power Brush, Subaru (SN: 040000 - 041999) Engine And Belt Drive Parts Diagram

28" Power Brush, Subaru

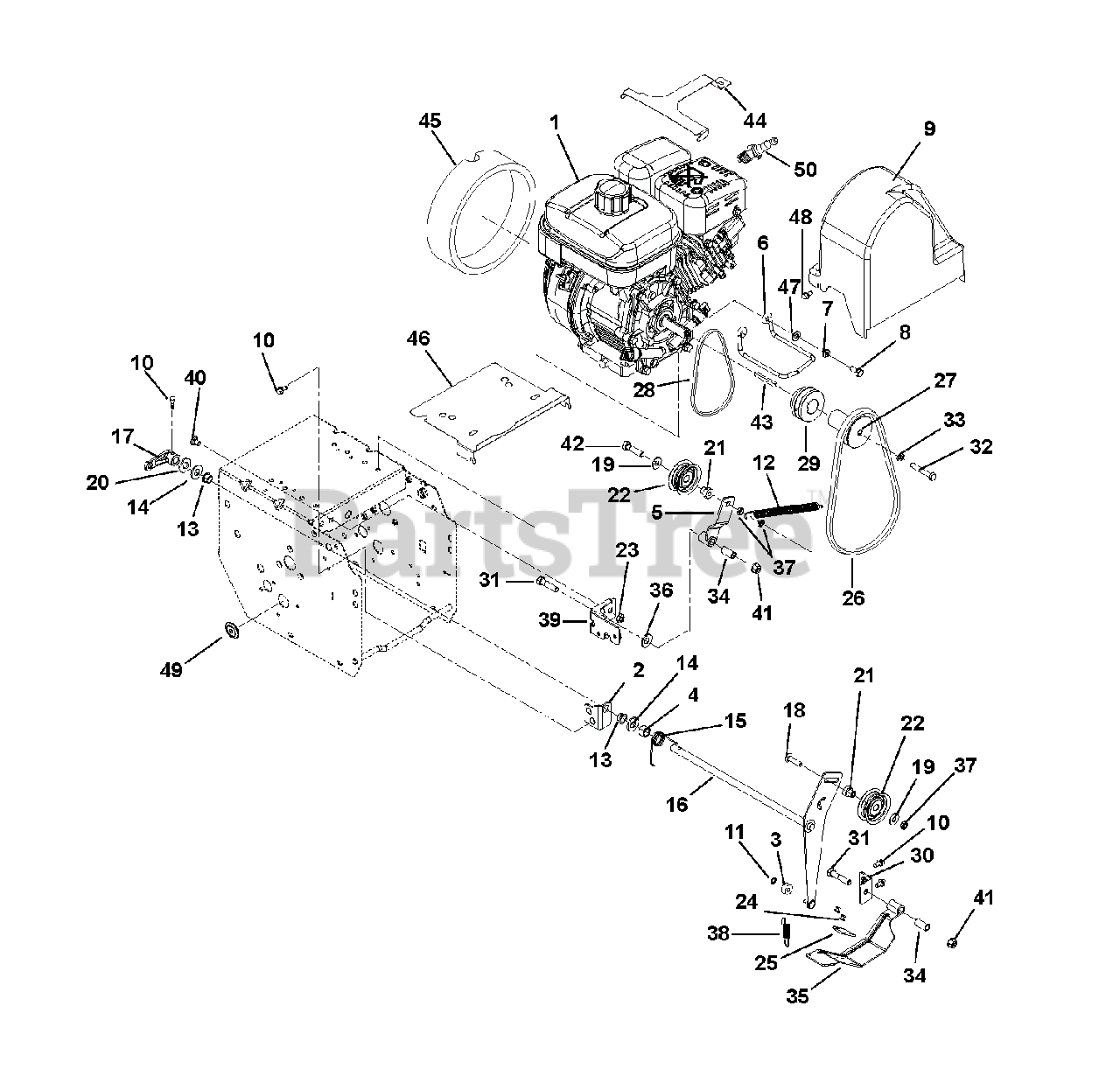

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 08200611

SUBARU EX17 120V ALL-SEASON

$

$

Not available

2

Gravely 00495051

BRACKET, MOUNT - IDLER ARM

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 05500037

BSHG,SLV .265 X .625 X .375
(Superseded to 05500820)

$2.49

$

In Stock, only 2 left!

0

4

Gravely 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00493600

WELDMENT, TRACTION IDLER ARM

$17.99

$

In Stock, only 1 left!

0

6

Gravely 03731800

BELT FINGER

$18.99

$

Usually ships in 4-12 days

0

7

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

8

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, Qty 5

0

9

Gravely 04209900

BELT COVER

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 7

0

12

Gravely 08300528

SPRING, EXTENSION
(Superseded to 08300538)

$15.99

$

In Stock, Qty 6

0

13

Gravely 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

14

Gravely 06425300

WSHR-FL-STL.531X1.00X.063 YWZC
(Superseded to 06401115)

$0.99

$

In Stock, Qty 16

0

15

Gravely 08300326

SG-TORS .075 X .955

$3.99

$

In Stock, only 1 left!

0

16

Gravely 00495167

WELDMENT, ATTACHMENT IDLER ARM
(Superseded to 04892167)

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

18

Gravely 06200124

BLT-RDHDSQSHNK.31-18X1.13 G5YZ
(Superseded to 06200334)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 11

0

21

Gravely 01213100

SPCR, BRG .315X.50X.688X.281

$3.99

$

In Stock, only 2 left!

0

22

Gravely 02457400

IDLER
(Superseded to 52007000)

$40.99

$

In Stock, Qty 10

0

23

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (Included with Item 35)

$1.49

$

In Stock, Qty 5

0

25

Gravely 00180500

PAD, BRAKE

Note: (Included with Item 35)

$10.99

$

In Stock, only 1 left!

0

26

Gravely 07238500

V-BELT, HA-RAW EDGE

$30.99

$

In Stock, Qty 11

0

27

Gravely 04502900

SHEAVE, AUGER DRIVE

$23.99

$

Usually ships in 4-12 days

0

28

Gravely 07200111

V-BELT, 3L-WRAPPED

$24.99

$

In Stock, Qty 9

0

29

Gravely 00187900

PULLEY, TRACTION

$79.99

$

Usually ships in 4-12 days

0

30

Gravely 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

In Stock, only 2 left!

0

31

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 05901401

BLT-HEX .31-24X1.75 GR5 YWZC
(Superseded to 05902007)

$3.49

$

In Stock, Qty 9

0

33

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 8

0

34

Gravely 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

35

Gravely 52000500

BRAKE ARM W/PAD

Note: (Includes Items 24 and 25)

$23.99

$

In Stock, only 2 left!

0

36

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 13

0

38

Gravely 08300104

SPRING-EXT .437 X .438 X 2.64

$3.99

$

In Stock, only 2 left!

0

39

Gravely 00657051

WELDMENT, FRAME BRACKET

$31.99

$

Usually ships in 4-12 days

0

40

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

42

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

43

Gravely 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 2 left!

0

44

Gravely 04258451

GUARD, SNOW-SUBARU EX17

$29.99

$

Usually ships in 4-12 days

0

45

Gravely 03972500

FOAM COVER, RECOIL-SUBARU

$36.99

$

Usually ships in 4-12 days

0

46

Gravely 03880851

BAFFLE,ENGINE,SMALL BLOCK

$65.99

$

Usually ships in 4-12 days

0

47

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

48

Gravely 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, Qty 19

0

49

Gravely 07500023

PLUG, HOLE - .875" NYLON

$1.99

$

Usually ships in 4-12 days

0

50

Gravely 21530400

PLUG, SPARK - TEC. SNO-THRO

$

$

Not available
