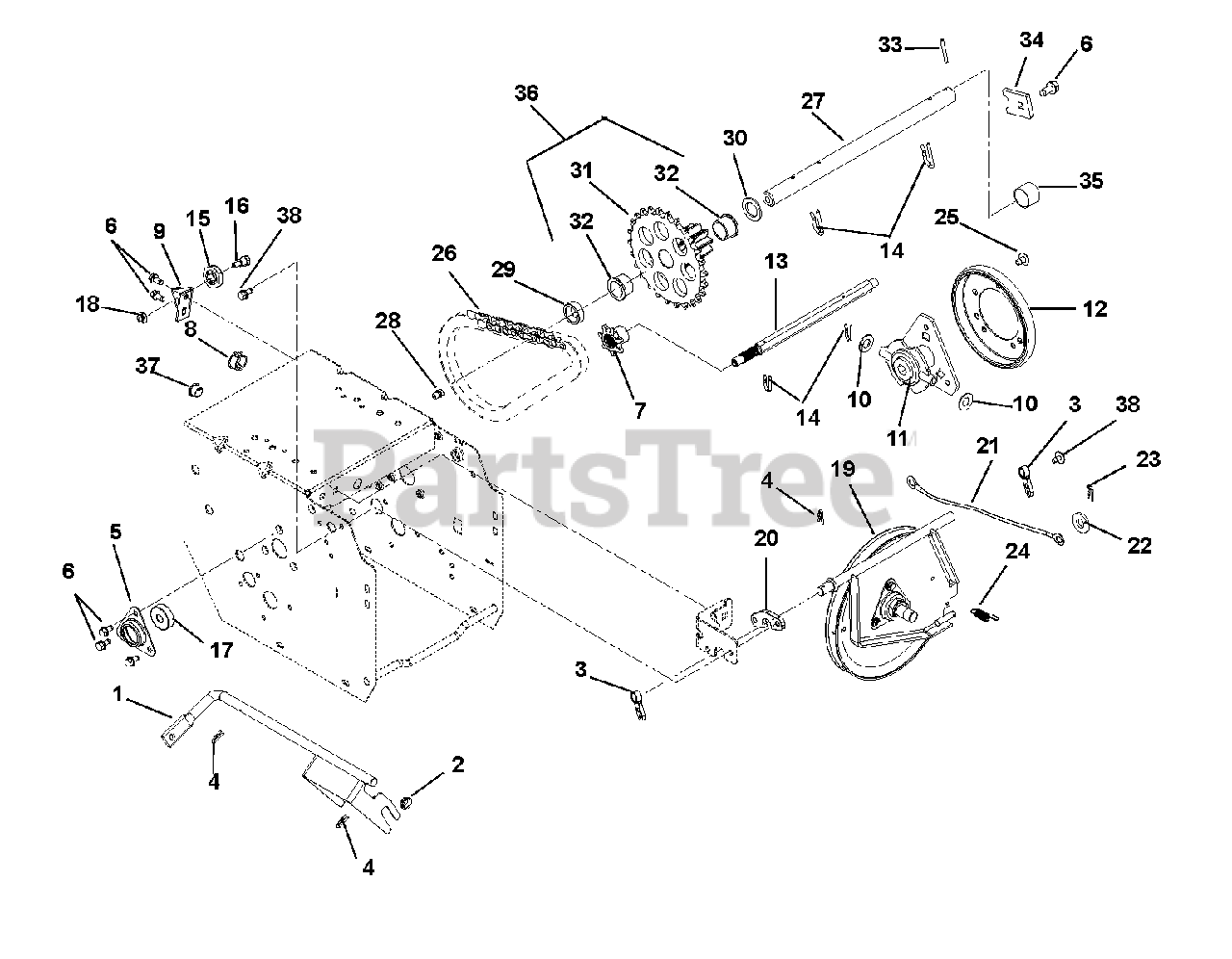

921026 - Gravely 28" Power Brush, Subaru (SN: 040000 - 041999) Friction Drive Parts Diagram

28" Power Brush, Subaru

Friction Drive Parts Diagram

  • Title

1

Gravely 00494051

Shift Fork

$82.99

$

Usually ships in 4-12 days

0

2

Gravely 05500028

Bushing, Polyliner

$2.49

$

In Stock, Qty 13

0

3

Gravely 03374500

Support Bushing, Swing Gate

$3.99

$

In Stock, Qty 7

0

4

Gravely 06944800

Clip, Spring

$0.99

$

In Stock, only 2 left!

0

5

Gravely 00383000

Flange, Bearing

$12.99

$

In Stock, only 2 left!

0

6

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 04092600

Sprocket, Pinion
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 07500023

Plug, Hole

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 00373051

Bracket, Cable Pulley

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 06439200

Washer, Flat Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00383100

Carrier, Friction Disc

$117.99

$

In Stock, Qty 11

0

12

Gravely 00170800

Friction Disc
(Superseded to 09475300)

$34.99

$

In Stock, Qty 20+

0

13

Gravely 04149500

Hex Shaft

$31.99

$

In Stock, only 1 left!

0

14

Gravely 06714500

Pin, Spring Clip

$1.99

$

In Stock, Qty 20+

0

15

Gravely 07300012

Pulley, Cable

$4.99

$

In Stock, only 4 left!

0

16

Gravely 07000021

Bolt, Shoulder
(Superseded to 07001737)

$3.99

$

In Stock, Qty 6

0

17

Gravely 05435200

Bearing

$9.49

$

In Stock, Qty 20+

0

18

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

19

Gravely 52105000

Plate, Swing Assembly

$79.99

$

In Stock, only 4 left!

0

20

Gravely 05500113

Spacer

$5.99

$

In Stock, only 1 left!

0

21

Gravely 06900313

Cable

$14.99

$

In Stock, only 2 left!

0

22

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

23

Gravely 06713500

Pin, Hair Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 16

0

24

Gravely 08300036

Spring

$2.49

$

In Stock, only 2 left!

0

25

Gravely 07400009

Screw, Tapping Serrated Round Head Torx .31-18 x .50
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 02466200

Chain, Roller

$5.99

$

In Stock, Qty 15

0

27

Gravely 00657900

Shaft, Pinion

$30.99

$

In Stock, only 1 left!

0

28

Gravely 07061300

Zerk, Fitting .25 x .125 Drive-In

$3.99

$

In Stock, Qty 15

0

29

Gravely 05500035

Bushing, Sleeve

$3.99

$

In Stock, Qty 9

0

30

Gravely 06436100

Washer, Flat Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 00190600

Sprocket/Gear (Included in Item 36)

Note: (Included in Item 36)

$

$

Not available

32

Gravely 05500111

Bushing, Flange (Included in Item 36)

Note: (Included in Item 36)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 05800205

Pin, Groove, Type E .125 x 1.00 Alloy

$2.99

$

Usually ships in 4-12 days

0

34

Gravely 00503500

Tab, Anti-Rotation

$4.99

$

In Stock, only 2 left!

0

35

Gravely 05500029

Spacer

$2.49

$

In Stock, Qty 9

0

36

Gravely 52601500

Sprocket/Gear w/Bushings (Includes Items 31 and 32)

Note: (Includes Items 31 and 32)

$45.99

$

Usually ships in 4-12 days

0

37

Gravely 05500026

Bushing, Polyliner

$2.99

$

In Stock, Qty 20+

0

38

Gravely 07414200

Screw, Tapping Hex Washer Thread Rolling .25 -20 x .75
(Superseded to 07400131)

$1.49

$

In Stock, Qty 11

0
