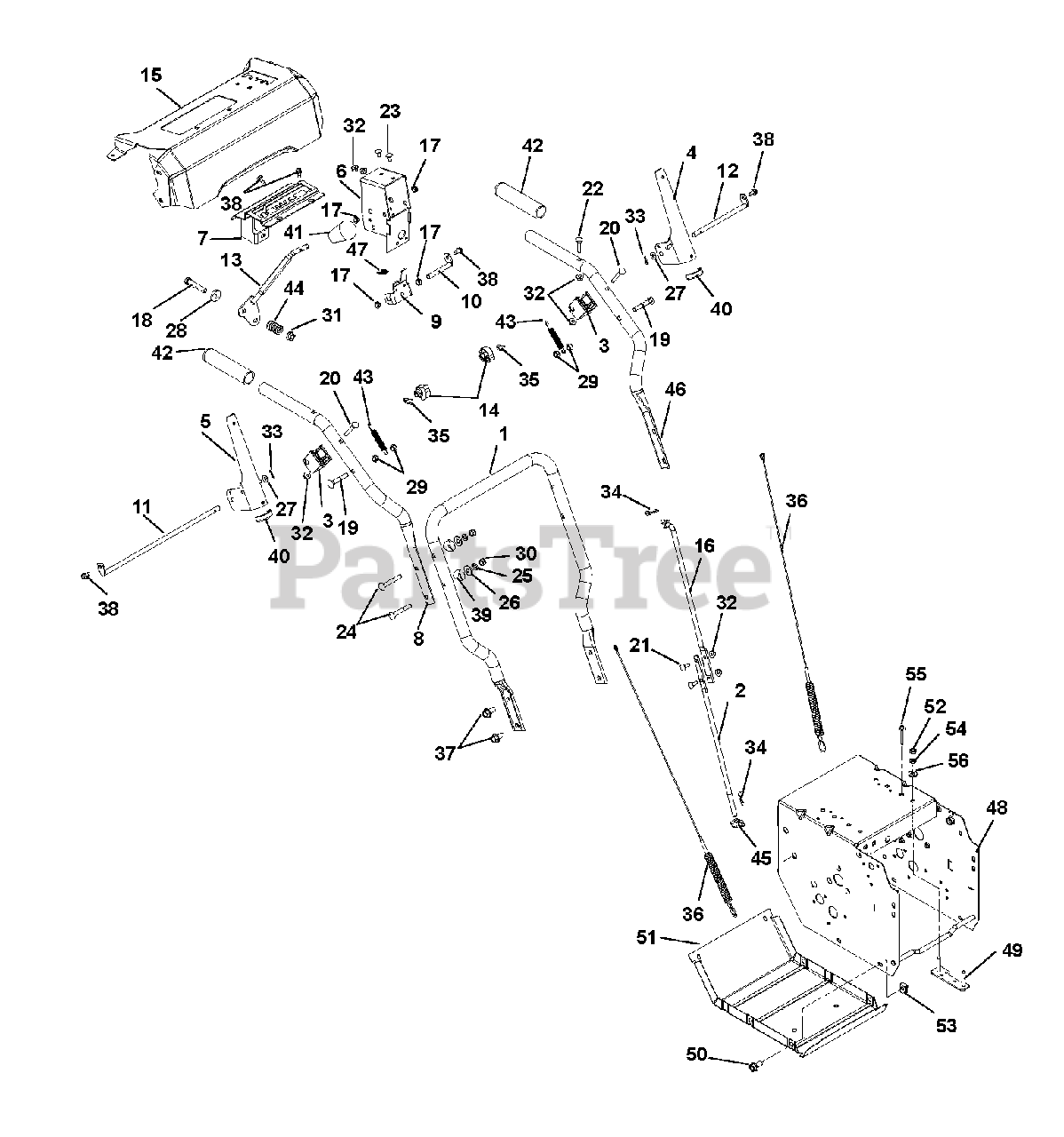

921026 - Gravely 28" Power Brush, Subaru (SN: 040000 - 041999) Handlebars And Controls Parts Diagram

28" Power Brush, Subaru

Handlebars And Controls Parts Diagram

  • Title

1

Gravely 00656151

Handlebar, Lower

$83.99

$

In Stock, only 1 left!

0

2

Gravely 00494967

Rod, Shift, Lower

$28.99

$

Usually ships in 4-12 days

0

3

Gravely 04310100

Clutch Paddle Block
(Superseded to 05193600)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 04310451

Clutch Handle, Left Hand

$28.99

$

Usually ships in 4-12 days

0

5

Gravely 04310551

Clutch Handle, Right Hand

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 04316651

Bracket, Interlock

$26.99

$

Usually ships in 4-12 days

0

7

Gravely 04317751

Detent Plate

$28.99

$

Usually ships in 4-12 days

0

8

Gravely 04318351

Handlebar, Upper, Right Hand

$37.99

$

Usually ships in 4-12 days

0

9

Gravely 04320400

Interlock Arm

$20.99

$

Usually ships in 4-12 days

0

10

Gravely 04320500

Rod, Pivot

$19.99

$

In Stock, only 1 left!

0

11

Gravely 04321500

Rod, Paddle Mount, Long

$19.99

$

Usually ships in 4-12 days

0

12

Gravely 04321600

Rod, Paddle Mount, Short

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 04321700

Lever, Shift
(Superseded to 04846700)

$16.99

$

Usually ships in 4-12 days

0

14

Gravely 04322100

Cam, Interlock

$3.99

$

In Stock, Qty 12

0

15

Gravely 52004600

Control Panel with Decal

$156.99

$

Usually ships in 4-12 days

0

16

Gravely 04334967

Rod, Shift, Upper
(Superseded to 04334900)

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 05500020

Bushing, Polyliner

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 05963300

Bolt, Hex .38-16 x 2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 11

0

19

Gravely 06200207

Bolt, Round Head Extra Long Square Neck .31-18 x 2.00

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 06209300

Bolt, Round Head Extra Long Square Neck .25-20 x 2.00

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06220100

Bolt, Round Head Extra Long Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 2 left!

0

23

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

24

Gravely 06221600

Bolt, Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 06307400

Washer, Lock .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

26

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, only 3 left!

0

27

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

28

Gravely 06444000

Washer, Flat Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

29

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 06530200

Nut, Locking Nylon .31-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

31

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 19

0

32

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

33

Gravely 06701900

Pin, Hair, Internal .06 x .18 x .77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

34

Gravely 06713500

Pin, Hair, Internal .08 x .18 x 1.18
(Superseded to 06700222)

$0.99

$

In Stock, Qty 15

0

35

Gravely 06714500

Pin, Spring Clip

$1.99

$

In Stock, Qty 20+

0

36

Gravely 06900439

Cable, Control

$28.99

$

In Stock, only 2 left!

0

37

Gravely 07028500

Bolt, Serrated Hex Flange Washer Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, only 2 left!

0

38

Gravely 07400034

Screw, Tapping Hex Washer Head Thread Rolling .25-20 x .50
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 07500005

Spacer, Handlebar

$1.49

$

Usually ships in 4-12 days

0

40

Gravely 07500103

Edging, Clutch Handle

$3.49

$

Usually ships in 4-12 days

0

41

Gravely 07500208

Knob
(Superseded to 07500224)

$9.99

$

Usually ships in 4-12 days

0

42

Gravely 07518700

Handle Grip
(Superseded to 07500239)

$3.99

$

Usually ships in 4-12 days

0

43

Gravely 08300527

Spring

$3.49

$

In Stock, only 2 left!

0

44

Gravely 08335700

Spring

$9.49

$

Usually ships in 4-12 days

0

45

Gravely 00386700

Pivot, Shift Rod

$7.99

$

Usually ships in 4-12 days

0

46

Gravely 04318451

Handlebar, Upper, Left Hand

$37.99

$

Usually ships in 4-12 days

0

47

Gravely 08337000

Spring

$5.99

$

In Stock, only 2 left!

0

48

Gravely 04456159

Frame

$150.99

$

Usually ships in 4-12 days

0

49

Gravely 00188400

Strap, Engine Bolt

$20.99

$

Usually ships in 4-12 days

0

50

Gravely 05900019

Bolt, Hex Washer Head .25-20 x .75
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

51

Gravely 00492353

Cover, Bottom

$

$

Not available

52

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

53

Gravely 07009000

Nut, Retainer .25-20 x .56

$1.49

$

In Stock, Qty 20+

0

54

Gravely 06307400

Washer, Lock .31 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

55

Gravely 06800028

Rivet, Pop .187
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

56

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0
