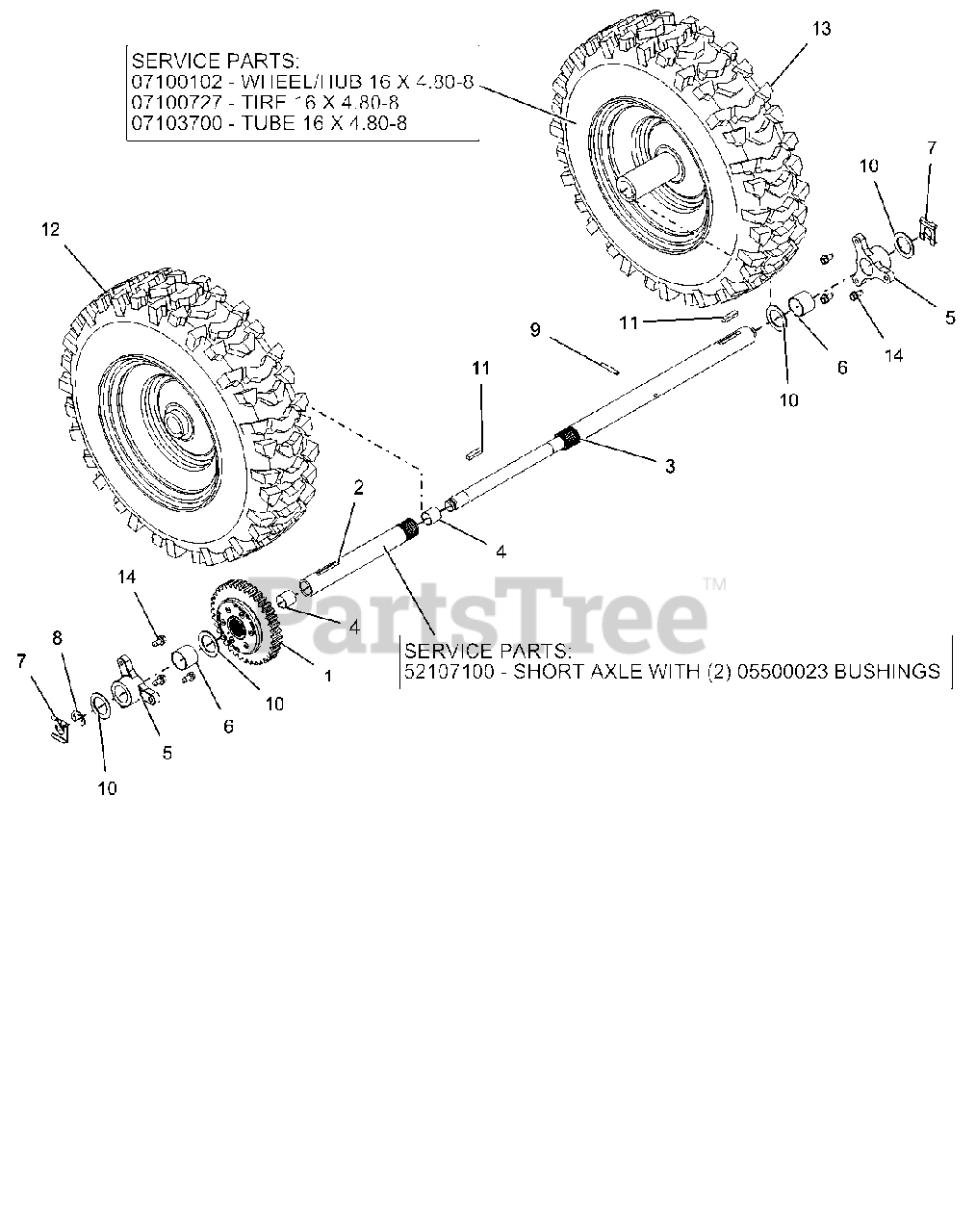

921026 - Gravely 28" Power Brush, Subaru (SN: 042000 - 054999) Wheels And Axle Parts Diagram

28" Power Brush, Subaru

Wheels And Axle Parts Diagram

  • Title

1

Gravely 00866000

DIFFERENTIAL, AUTOMATIC
(Superseded to 05013000)

$193.99

$

In Stock, only 3 left!

0

2

Gravely 52707100

SHORT AXLE

Note: SERVICE PART

$

$

Not available

2

Gravely 05500023

BUSHING

Note: SERVICE PART

$3.99

$

In Stock, Qty 19

0

2

Gravely 04753400

AXLE, SHORT - DIFFERENTIAL

$

$

Not available

3

Gravely 04753500

AXLE, LONG - DIFFERENTIAL

$72.99

$

Usually ships in 4-12 days

0

4

Gravely 05500023

BSHG, SLV .706 X .764 X .75 BRZ

$3.99

$

In Stock, Qty 19

0

5

Gravely 05500829

BSHG, AXLE

$9.49

$

In Stock, Qty 17

0

6

Gravely 05501219

BSHG, SLV 1.012 X 1.125 X .875

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 05700001

CLIP, SNAP - .625

$2.49

$

In Stock, only 3 left!

0

8

Gravely 05708300

RING, RETAINING-E .625X.042

$0.99

$

In Stock, only 4 left!

0

9

Gravely 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, only 4 left!

0

10

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062 YWZC
(Superseded to 06401132)

$1.49

$

In Stock, Qty 16

0

11

Gravely 06600002

KEY, RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0

12

Gravely 07100229

TIRE/WHEEL, RH 16X4.80-8 KEY
(Superseded to 07101201)

$113.99

$

Usually ships in 4-12 days

0

13

Gravely 07100102

WHEEL/HUB 16 X 4.80-8

Note: SERVICE PART

$59.99

$

Usually ships in 4-12 days

0

13

Gravely 07100727

TIRE 16 X 4.80-8

Note: SERVICE PART

$79.99

$

Usually ships in 4-12 days

0

13

Gravely 07103700

TUBE 16 X 4.80-8

Note: SERVICE PART

$14.99

$

In Stock, only 2 left!

0

13

Gravely 07100230

TIRE/WHEEL, LH 16X4.80-8 KEY
(Superseded to 07101202)

$113.99

$

Usually ships in 4-12 days

0

14

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
