921026 - Gravely 28" Power Brush, Subaru (SN: 056000 - 056999) Engine And Belt Drive Parts Diagram

28" Power Brush, Subaru

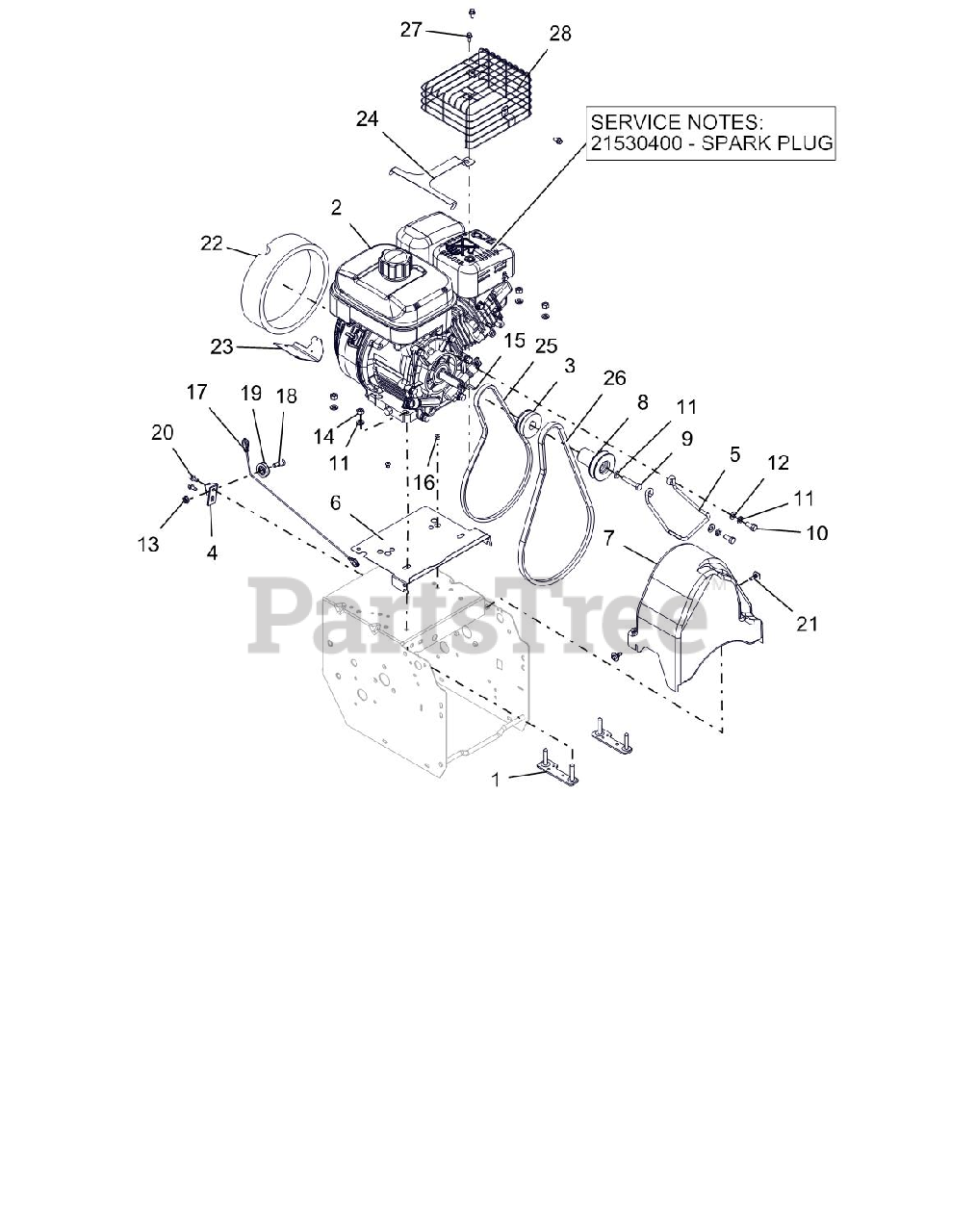

Engine And Belt Drive Parts Diagram

  • Title

1

Gravely 00188400

STRAP, ENGINE BOLT-WELDMENT

$20.99

$

Usually ships in 4-12 days

0

2

Gravely 21530400

PLUG, SPARK - TEC. SNO-THRO

Note: SERVICE PART

$

$

Not available

2

Gravely 08200611

SUBARU EX17 120V ALL-SEASON

$

$

Not available

3

Gravely 00187900

PULLEY, TRACTION

$51.99

$

Usually ships in 4-12 days

0

4

Gravely 00373051

BRACKET, CABLE PULLEY

$20.99

$

Usually ships in 4-12 days

0

5

Gravely 03731800

BELT FINGER

$17.99

$

Usually ships in 4-12 days

0

6

Gravely 04895151

BAFFLE, COMPACT

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 04209900

BELT COVER

$20.99

$

Usually ships in 4-12 days

0

8

Gravely 04502900

SHEAVE, AUGER DRIVE

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 05901401

BLT-HEX .31-24X1.75 GR5 YWZC
(Superseded to 05902007)

$2.99

$

In Stock, Qty 11

0

10

Gravely 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

12

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

13

Gravely 06500710

NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

14

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

15

Gravely 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

17

Gravely 06900504

CABLE, LOWER TRACTION (CMPCT)

$7.99

$

In Stock, only 1 left!

0

18

Gravely 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 6

0

19

Gravely 07300012

PULLEY, CABLE

$4.99

$

In Stock, only 4 left!

0

20

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.49

$

In Stock, only 2 left!

0

22

Gravely 03972500

FOAM COVER, RECOIL-SUBARU

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 04084100

BRACKET, SWITCH-SUBARU

$

$

Not available

24

Gravely 04258451

GUARD, SNOW-SUBARU EX17

$28.99

$

Usually ships in 4-12 days

0

25

Gravely 07200111

V-BELT, 3L-WRAPPED

$21.99

$

In Stock, Qty 20+

0

26

Gravely 07238500

V-BELT, HA-RAW EDGE

$28.99

$

In Stock, only 3 left!

0

27

Gravely 07001736

BLT-SERHFWH M6X1.0X12 8.8 CZ

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 04042300

GUARD,MUFFLER,SUBARU

$

$

Not available
