921026 - Gravely 28" Power Brush, Subaru (SN: 056000 - 056999) Reduction Drive Parts Diagram

28" Power Brush, Subaru

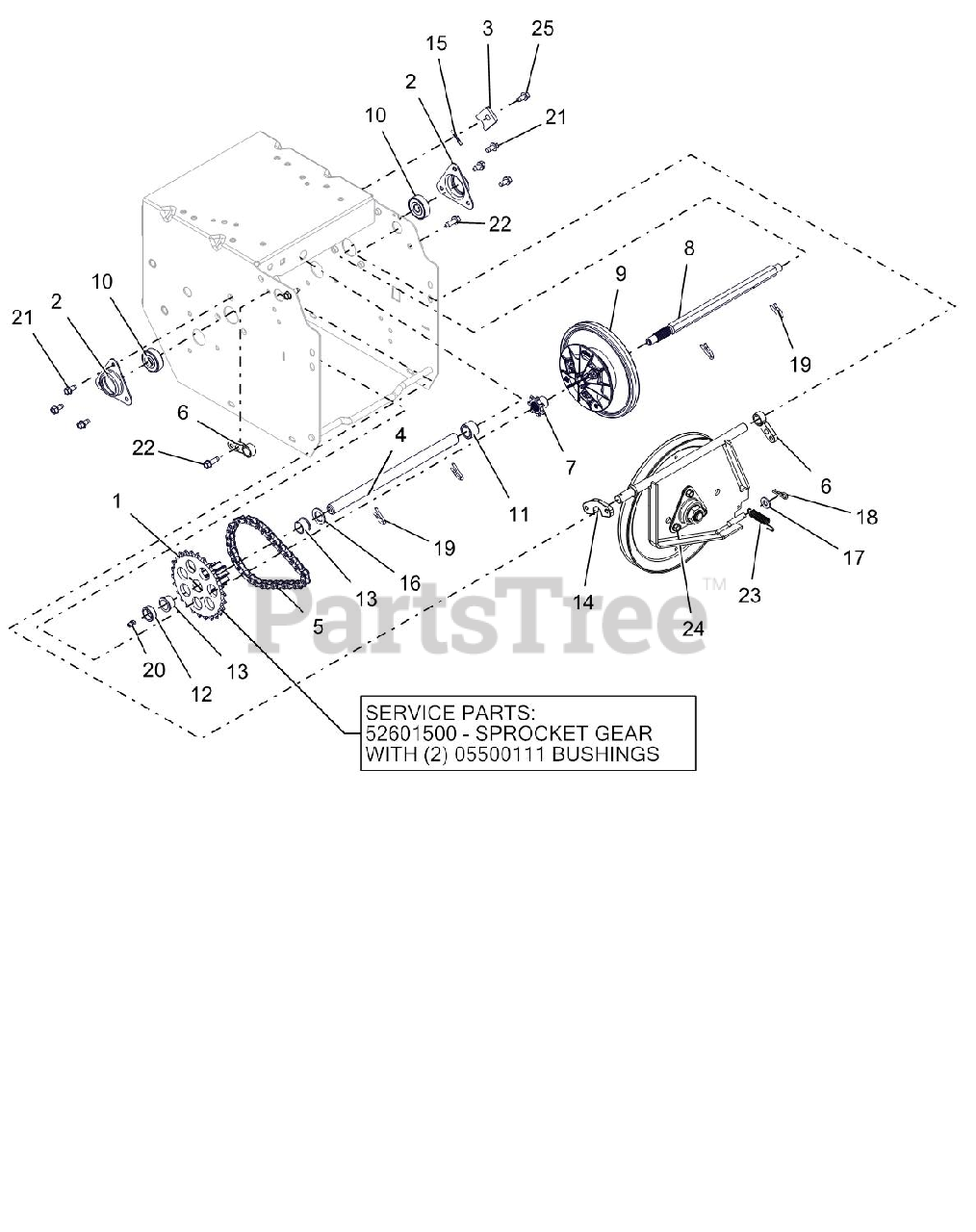

Reduction Drive Parts Diagram

  • Title

1

Gravely 05500111

BSHG-FLG .625X.750X.500X.875

Note: SERVICE PART

$1.49

$

In Stock, Qty 20+

0

1

Gravely 00190600

PINION & SPROCKET

$

$

Not available

1

Gravely 52601500

PINION & SPROCKET W/BUSHINGS

Note: SERVICE PART

$45.99

$

Usually ships in 4-12 days

0

2

Gravely 00383000

FLANGE, BEARING

$12.99

$

In Stock, only 2 left!

0

3

Gravely 00503500

TAB, ANTI ROTATION

$4.99

$

In Stock, only 2 left!

0

4

Gravely 00657900

SHAFT, PINION

$30.99

$

In Stock, only 1 left!

0

5

Gravely 02466200

CHAIN - #41, 32 PITCHES

$5.99

$

In Stock, Qty 15

0

6

Gravely 03374500

SUPPORT BUSHING, SWING GATE

$3.99

$

In Stock, Qty 7

0

7

Gravely 04092600

SPROCKET, PINION 7T W/SPLINE
(Superseded to 09478400)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 04149500

SHAFT, HEX W/SPLINE

$31.99

$

In Stock, only 1 left!

0

9

Gravely 04861600

DISC, FRICTION DRIVE-ASSEMBLY

$43.99

$

In Stock, Qty 20+

0

10

Gravely 05435200

BRG-BALL .437X1.375X.437

$9.49

$

In Stock, Qty 20+

0

11

Gravely 05500029

SPACER, .635X.880X.611

$2.49

$

In Stock, Qty 9

0

12

Gravely 05500035

BSHG-SLV, .635X.880X.305

$3.99

$

In Stock, Qty 9

0

13

Gravely 05500111

BSHG-FLG .625X.750X.500X.875

$1.49

$

In Stock, Qty 20+

0

14

Gravely 05500113

SPACER, SWING GATE

$5.99

$

In Stock, only 1 left!

0

15

Gravely 05800205

PIN-GRV .125X1.00 TP E ALLOY

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

18

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 16

0

19

Gravely 06714500

PIN, SPRING CLIP

$1.99

$

In Stock, Qty 20+

0

20

Gravely 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 15

0

21

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 07400111

SCR-TAP-PM .25-20X.75 TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 11

0

23

Gravely 08300036

SPRING, EXT. .043X.438X1.64

$2.49

$

In Stock, only 2 left!

0

24

Gravely 52105000

PLATE, SWING - ASSEMBLY

$79.99

$

In Stock, only 4 left!

0

25

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
