921026 - Gravely 28" Power Brush, Subaru (SN: 057000 & Above) Wheels And Axles Parts Diagram

28" Power Brush, Subaru

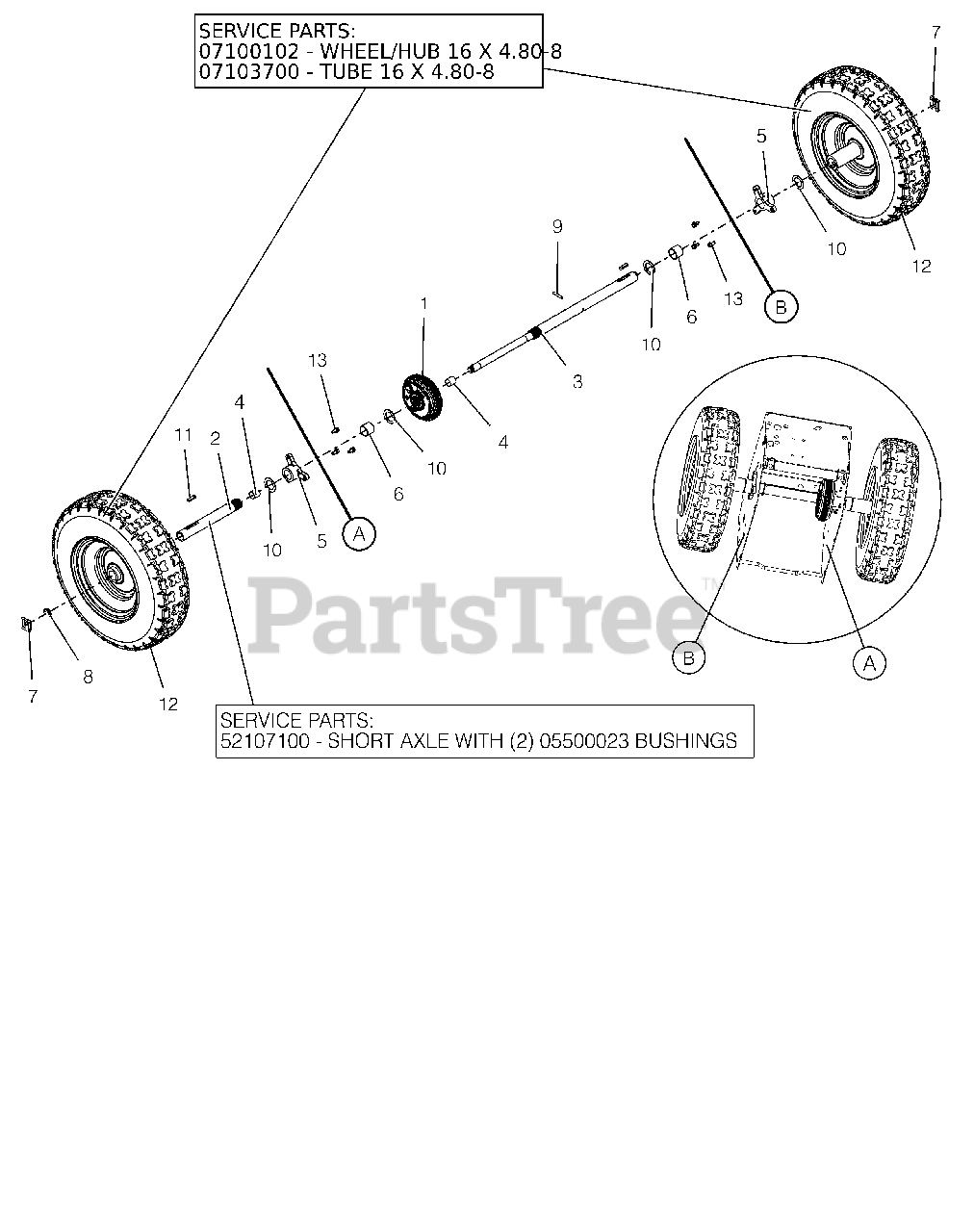

Wheels And Axles Parts Diagram

  • Title

1

Gravely 05013000

DIFFERENTIAL, AUTOMATIC

$201.99

$

In Stock, Qty 7

0

2

Gravely 52107100

KIT, SHORT AXLE W/BUSHINGS

$47.99

$

In Stock, only 2 left!

0

2

Gravely 52107100

KIT, SHORT AXLE W/BUSHINGS

Note: SERVICE PART

$47.99

$

In Stock, only 2 left!

0

2

Gravely 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

3

Gravely 04753500

AXLE, LONG - DIFFERENTIAL

$74.99

$

In Stock, only 2 left!

0

4

Gravely 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

5

Gravely 05500829

BUSHING, AXLE

$10.99

$

In Stock, only 2 left!

0

6

Gravely 05501219

BSHG-SLV, 1.012X1.125X.875

$3.99

$

In Stock, only 2 left!

0

7

Gravely 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

8

Gravely 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 15

0

9

Gravely 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 14

0

10

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 15

0

11

Gravely 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 11

0

12

Gravely 07101034

TIRE/WHEEL,16X4.80-8 POLAR TRK

$112.99

$

Usually ships in 4-12 days

0

12

Gravely 07100102

HUB, WHEEL - 16X4.8-8 DIFF

Note: SERVICE PART

$65.99

$

Usually ships in 4-12 days

0

12

Gravely 07103700

TUBE

Note: SERVICE PART

$15.99

$

In Stock, only 2 left!

0

13

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
