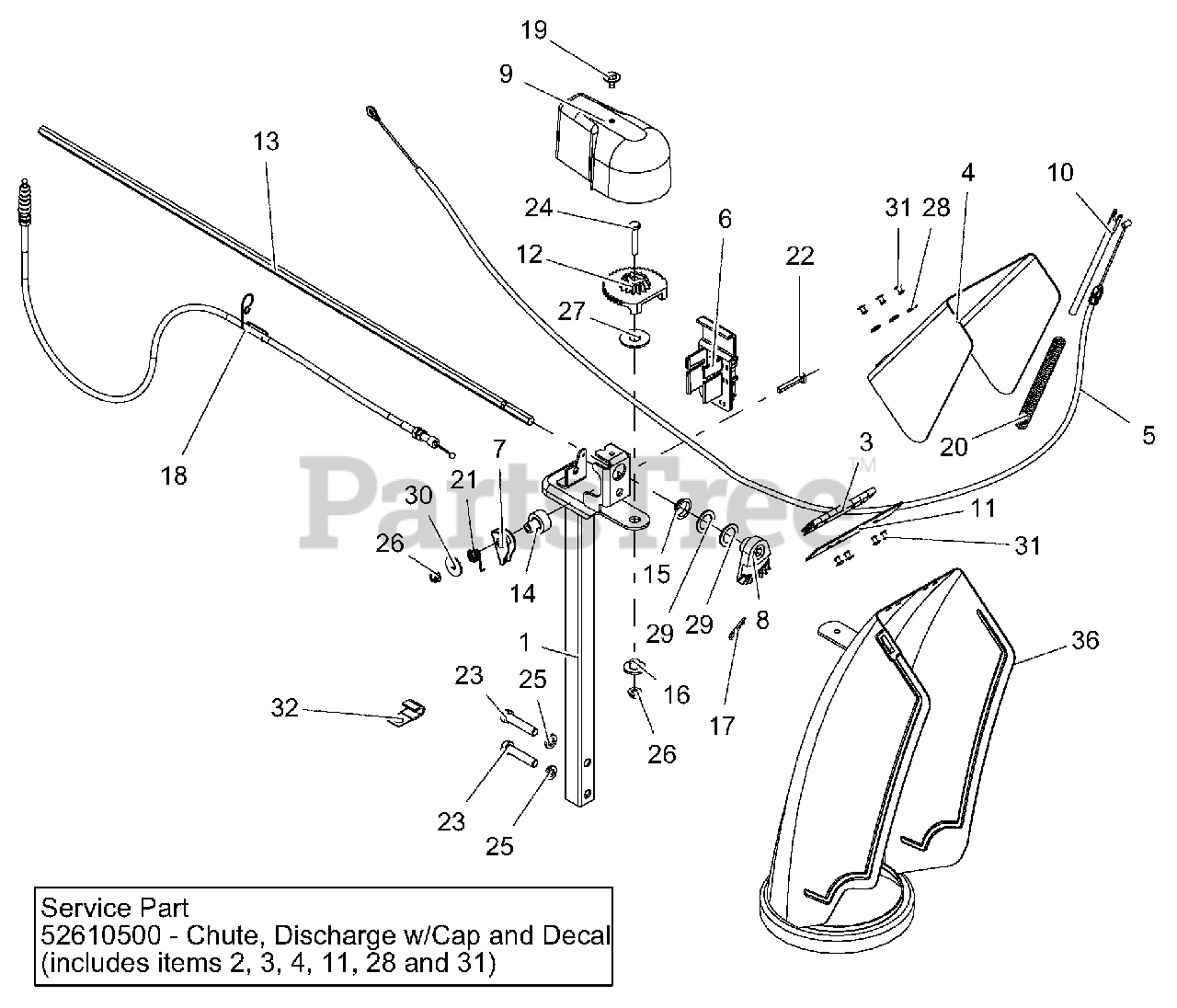

921029 - Ariens Deluxe Platinum 30" Snow Blower, Ariens AX engine (SN: 000101 - 099999) Discharge Chute Parts Diagram

Deluxe Platinum 30" Snow Blower, Ariens AX engine

Discharge Chute Parts Diagram

  • Title

1

Ariens 03897451

PEDESTAL, CHUTE - QUICK STICK

$41.99

$

Usually ships in 4-12 days

0

3

Ariens 00170100

HINGE

$11.99

$

In Stock, only 1 left!

0

4

Ariens 00387759

CAP, LARGE

$43.99

$

Usually ships in 4-12 days

0

5

Ariens 06900406

CABLE, DEFLECTOR-COATED

$45.99

$

In Stock, Qty 20+

0

6

Ariens 52104700

HOLDER W LARGE SHEAR BOLT /NUT

$21.99

$

Usually ships in 4-12 days

0

7

Ariens 00180900

ARM, LOCKING
(Superseded to 05081900)

$4.99

$

In Stock, Qty 20+

0

8

Ariens 00184300

GEAR, CHUTE-ACTUATION

$22.99

$

In Stock, Qty 13

0

9

Ariens 00261700

COVER, CHUTE GEAR

$9.99

$

In Stock, Qty 6

0

10

Ariens 00389000

ROD, DEFLECTOR CAP

$14.99

$

In Stock, only 1 left!

0

11

Ariens 00628400

CAP SEAL 5.50

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 03898700

GEAR, CHUTE
(Superseded to 09478600)

$13.99

$

Usually ships in 4-12 days

0

13

Ariens 04507700

ROD, HEX - CHUTE ROTATION

$25.99

$

Usually ships in 4-12 days

0

14

Ariens 05500024

BUSHING, LOCK ARM

$3.99

$

In Stock, Qty 9

0

15

Ariens 05500027

BUSHING, POLYLINER-.75 SNAPIN

$2.49

$

In Stock, Qty 20+

0

16

Ariens 05500920

BSHG-FLG .265X.477X.375X1.00

$3.99

$

In Stock, Qty 18

0

17

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 15

0

18

Ariens 06900421

CABLE, CHUTE LOCK

$34.99

$

In Stock, Qty 6

0

19

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, Qty 7

0

20

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.49

$

In Stock, only 1 left!

0

21

Ariens 08300014

SG-TORS

$1.49

$

In Stock, only 4 left!

0

22

Ariens 06222300

@BLT-RDHDSQNK .25-20X1.50 G5YZ
(Superseded to 06200331)

$1.49

$

In Stock, Qty 11

0

23

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 4 left!

0

24

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

25

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

26

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

27

Ariens 06400904

WSHR-FLT-NYL .515X1.375X.093

$2.49

$

In Stock, Qty 20+

0

28

Ariens 06400003

WSHR-FL-STL .196X.500X.06 YZ
(Superseded to 06401029)

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 6

0

30

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, only 2 left!

0

31

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, Qty 10

0

32

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 11

0

36

Ariens 04346859

CHUTE, NOTCHED DISCHARGE

$

$

Not available
