921031 - Ariens Deluxe 24" Snow Blower, Briggs & Stratton (SN: 075000 & Above) Wheels And Axles (3) Parts Diagram

Deluxe 24" Snow Blower, Briggs & Stratton

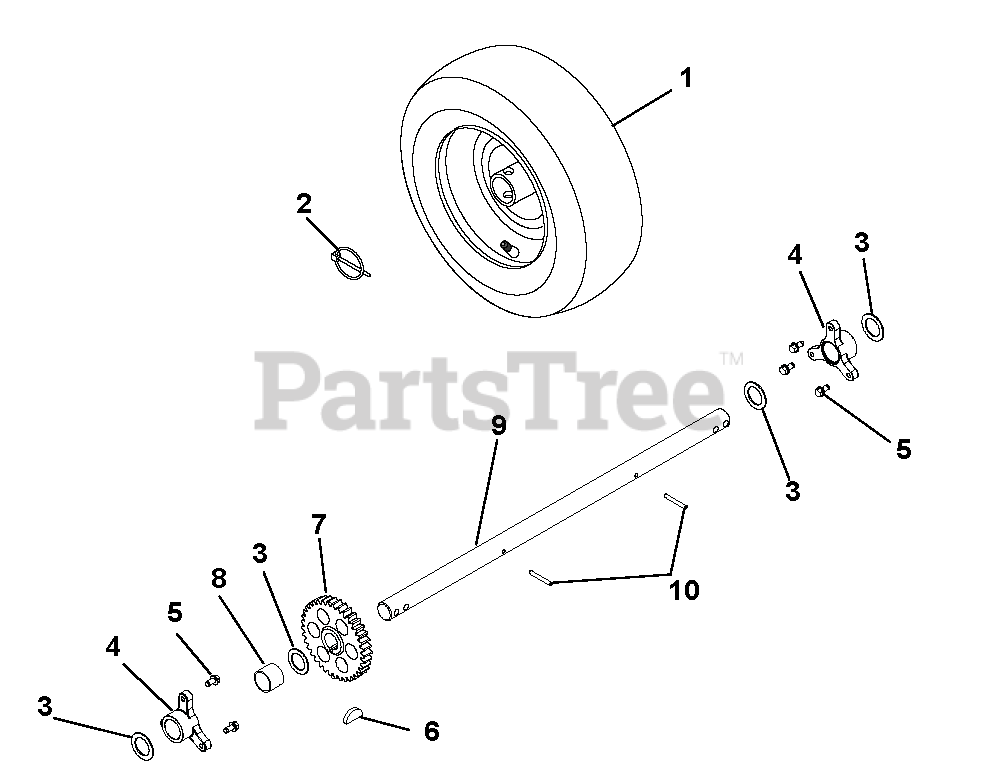

Wheels And Axles (3) Parts Diagram

  • Title

1

Ariens 07100918

TIRE/WHEEL,15X5-6 PINLOK K398A

Note: (921031)

$93.99

$

Usually ships in 4-12 days

0

Ariens 07100225

TIRE/WHEEL, RH 15X5.00-6 PIN

Note: (921318)

$

$

Not available

Ariens 07100226

TIRE/WHEEL, LH 15X5.00-6 PIN

Note: (921318)

$

$

Not available

Ariens 07100815

TIRE, 15" K398A

Note: (921031)

$54.99

$

Usually ships in 4-12 days

0

Ariens 07100726

TIRE, 15X5.00-6 K478

Note: (921318)

$69.99

$

In Stock, only 1 left!

0

2

Ariens 07015800

PIN-LOK .31X2.00

$6.99

$

In Stock, only 2 left!

0

3

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 16

0

4

Ariens 05500829

BUSHING, AXLE

$9.49

$

In Stock, Qty 17

0

5

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$2.99

$

In Stock, Qty 5

0

7

Ariens 00371000

GEAR, SPUR

$53.99

$

In Stock, only 1 left!

0

8

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 5

0

9

Ariens 00658100

AXLE, 1.00" SOLID

$89.99

$

Usually ships in 4-12 days

0

10

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 5

0
