921032 - Ariens Deluxe 30" Snow Blower, Ariens AX engine (SN: 000101 - 099999) Auger And Housing - 30 in Parts Diagram

Deluxe 30" Snow Blower, Ariens AX engine

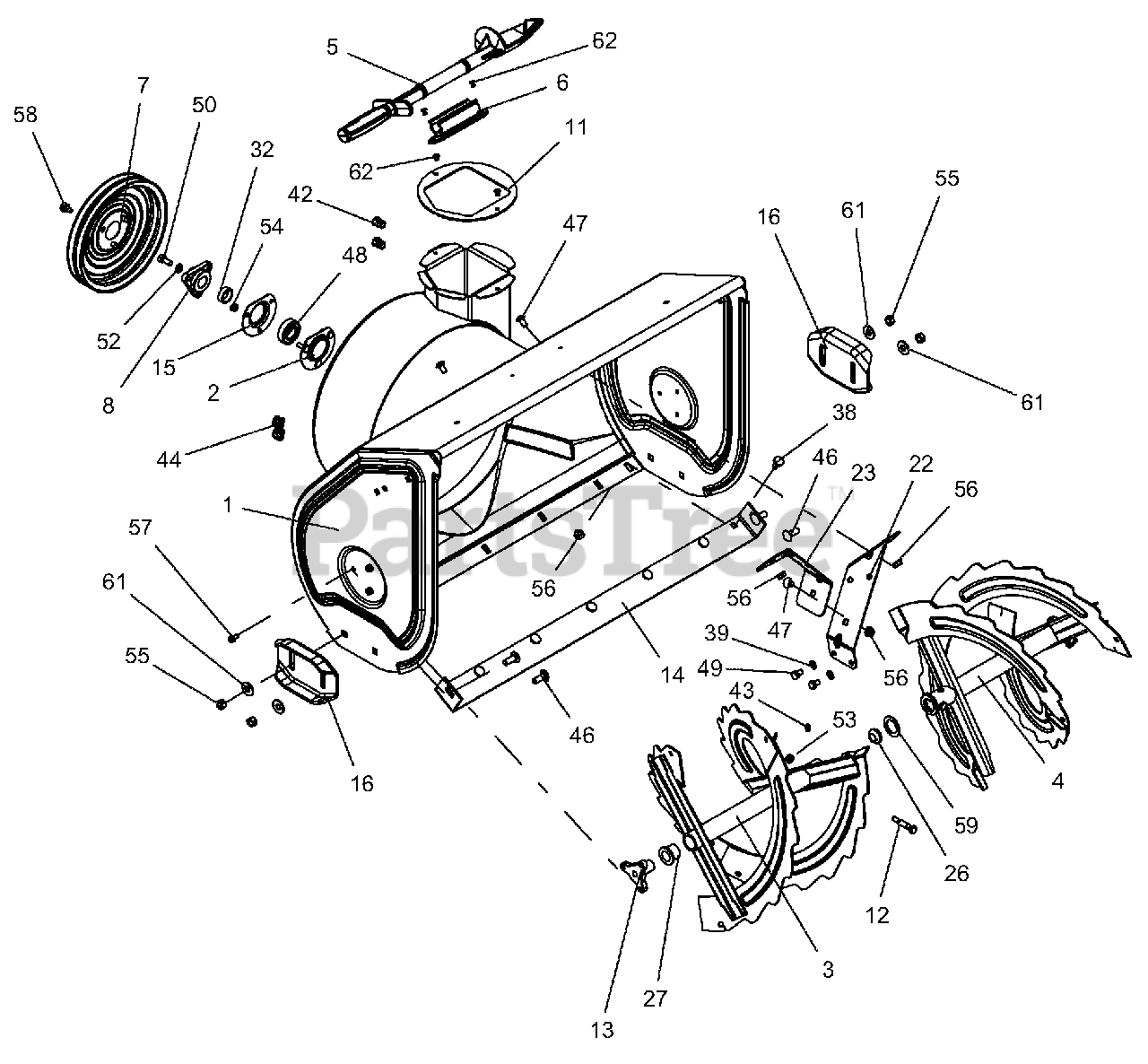

Auger And Housing - 30 in Parts Diagram

  • Title

1

Ariens 52101900

BLOWER HOUSING W/DECAL 30"

$380.99

$

Usually ships in 4-12 days

0

2

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, only 3 left!

0

3

Ariens 52103100

RAKE, RH W/ZERK - 30"

$112.99

$

In Stock, only 4 left!

0

4

Ariens 52103000

RAKE, LH W/ZERK - 30"

$122.99

$

In Stock, only 3 left!

0

5

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

6

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

7

Ariens 00268700

PULLEY, SPIN FORM DUAL GROOVE
(Superseded to 00268751)

$40.99

$

In Stock, only 2 left!

0

8

Ariens 00268702

PULLEY HUB, D-BORE .87 DELUXE

$15.99

$

In Stock, only 2 left!

0

11

Ariens 00600100

BAFFLE, DISCHARGE NECK

$14.99

$

In Stock, only 2 left!

0

12

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

$3.49

$

In Stock, Qty 6

0

13

Ariens 00659200

SUPPORT, RAKE BUSHING

$21.99

$

In Stock, Qty 12

0

14

Ariens 00661159

BLADE, SCRAPER-30"

$47.99

$

In Stock, Qty 17

0

15

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 6

0

16

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$20.99

$

Usually ships in 4-12 days

0

22

Ariens 04319151

BRACKET, GEARCASE SUPPORT - LH

$21.99

$

Usually ships in 4-12 days

0

23

Ariens 04319251

BRACKET, GEARCASE SUPPORT - RH

$21.99

$

Usually ships in 4-12 days

0

26

Ariens 04444000

PLUG, RAKE TUBE

$7.99

$

Usually ships in 4-12 days

0

27

Ariens 05500114

BSHG-FLG, NY.778 ID X 1.018 OD

$3.99

$

In Stock, Qty 11

0

32

Ariens 05501109

BSHG-SPCR .895IDX1.065ODX.353

$3.99

$

Usually ships in 4-12 days

0

38

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$1.49

$

Usually ships in 4-12 days

0

39

Ariens 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

$0.99

$

In Stock, only 1 left!

0

42

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$2.99

$

Usually ships in 4-12 days

0

43

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

44

Ariens 07400030

SCR-TAP.31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

46

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

Usually ships in 4-12 days

0

47

Ariens 06200118

BLT-RDHDSQSHNK.31-18X.62 YZ-LK
(Superseded to 06200304)

$2.99

$

Usually ships in 4-12 days

0

48

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

$37.99

$

In Stock, only 3 left!

0

49

Ariens 05947200

@BLT-HEX .31-18X.50 GR5 YWZC
(Superseded to 05901904)

$1.99

$

In Stock, Qty 13

0

50

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

52

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

53

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

54

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

56

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

58

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

59

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

61

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

62

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (#64) YWZC

$1.49

$

In Stock, only 3 left!

0
