921037 - Ariens Deluxe 28" Snow Blower, Ariens AX engine (SN: 000101 & Above) Electrical And Wiring Diagram Parts Diagram

Deluxe 28" Snow Blower, Ariens AX engine

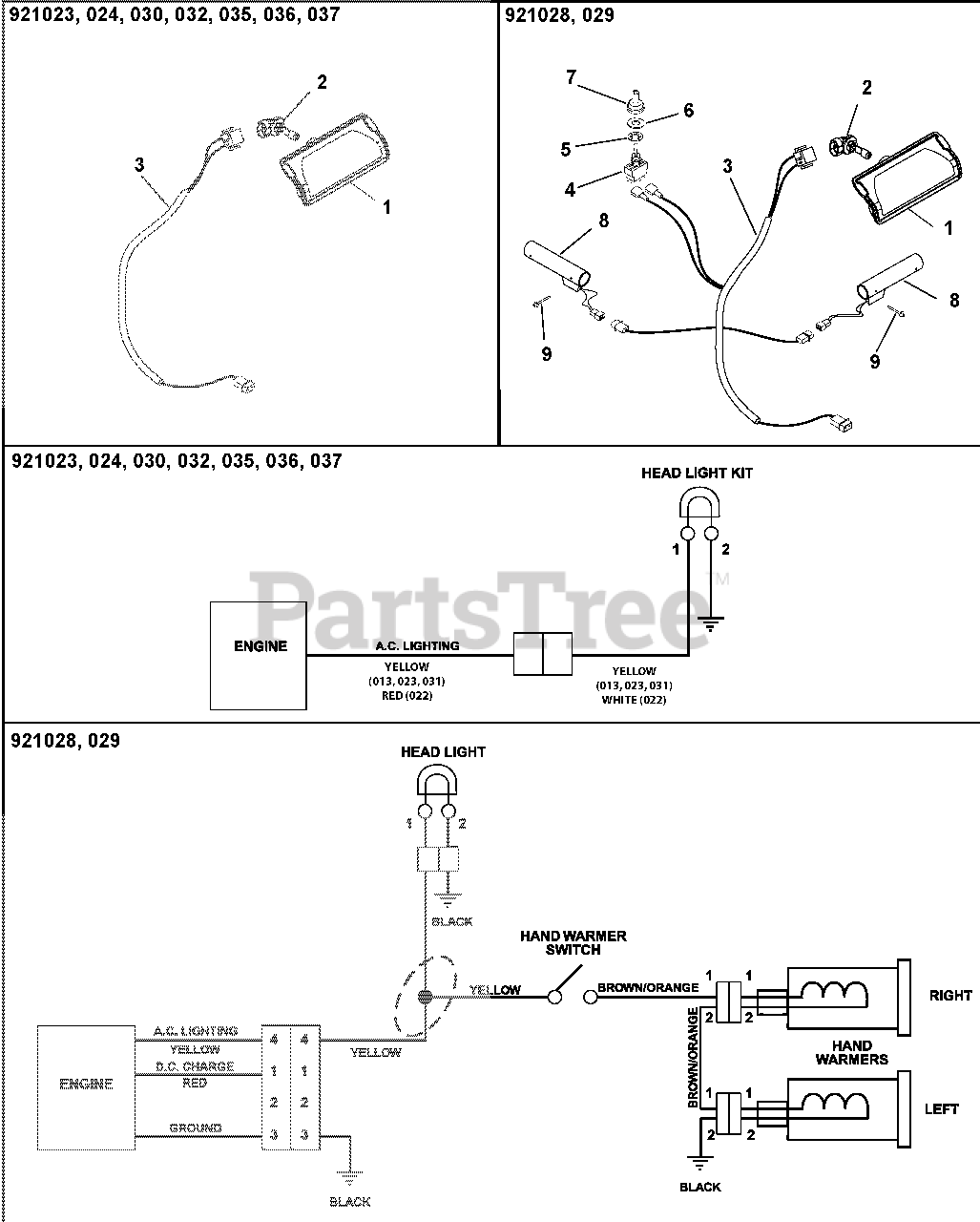

Electrical And Wiring Diagram Parts Diagram

  • Title

1

Ariens 04307600

HEADLIGHT ASSY, HALOGEN 20W
(Superseded to 04812300)

Note: (Includes Item 2)

$51.99

$

In Stock, only 4 left!

0

2

Ariens 00432600

BULB, LIGHT-HALOGEN 20W

$20.99

$

In Stock, Qty 12

0

3

Ariens 04329600

HARNESS, LIGHT & WARMER

Note: (921028, 029)

$62.99

$

Usually ships in 4-12 days

0

Ariens 04329500

HARNESS, LIGHT - DELUXE

Note: (921023, 024, 030, 032, 035, 036, 037)

$41.99

$

Usually ships in 4-12 days

0

4

Ariens 02485700

SWITCH, ON/OFF

Note: (921028, 029)

$18.99

$

In Stock, only 1 left!

0

5

Ariens 06310900

WSHR-LK-INT .563X.040 YWZC

Note: (921028, 029)

$2.99

$

In Stock, only 1 left!

0

6

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

Note: (921028, 029)

$3.49

$

Usually ships in 4-12 days

0

7

Ariens 09207600

BOOT, SWITCH

Note: (Optional) (921028, 029)

$68.99

$

Usually ships in 4-12 days

0

8

Ariens 07500015

HEATED GRIP, MAGURA
(Superseded to 07500514)

Note: (921028, 029)

$55.99

$

In Stock, only 2 left!

0

9

Ariens 06800038

RVT-POP #43 .125X.313 STL ZINC

Note: (921028, 029)

$2.99

$

Usually ships in 4-12 days

0
