921037 - Ariens Deluxe 28" Snow Blower, Ariens AX engine (SN: 000101 & Above) Wheels And Axles Parts Diagram

Deluxe 28" Snow Blower, Ariens AX engine

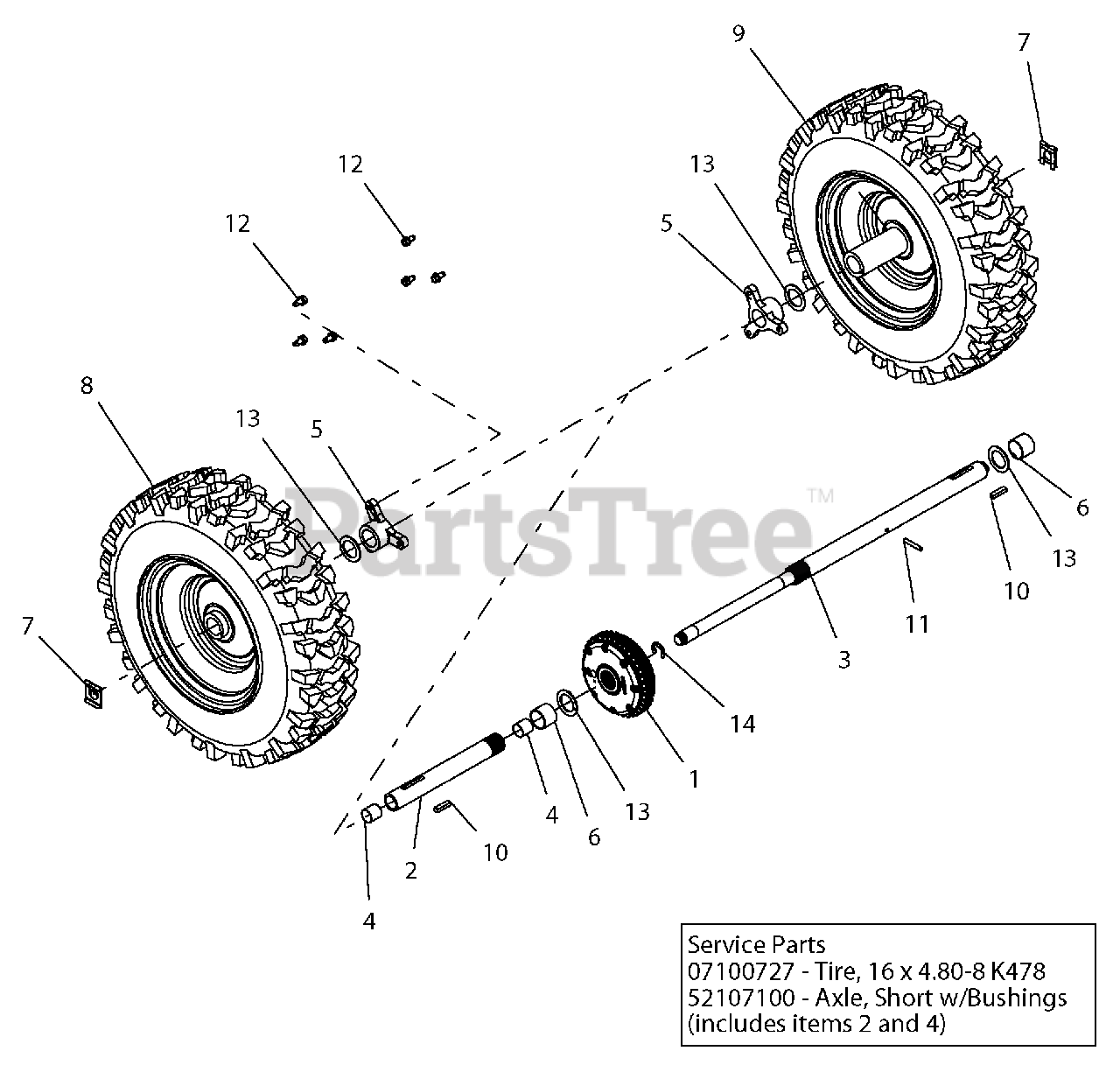

Wheels And Axles Parts Diagram

  • Title

1

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$161.99

$

In Stock, only 2 left!

0

2

Ariens 52107100

KIT, SHORT AXLE W/BUSHINGS

Note: SERVICE PART

$47.99

$

In Stock, only 2 left!

0

3

Ariens 04753500

AXLE, LONG - DIFFERENTIAL

$74.99

$

In Stock, only 2 left!

0

4

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 20+

0

5

Ariens 05500829

BUSHING, AXLE

$10.99

$

In Stock, only 2 left!

0

6

Ariens 05501219

BSHG-SLV, 1.012X1.125X.875

$3.99

$

In Stock, only 2 left!

0

7

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

8

Ariens 07100229

TIRE/WHEEL,RH 16X4.8-8 DIFF T2
(Superseded to 07101201)

$125.99

$

In Stock, only 1 left!

0

9

Ariens 07100230

TIRE/WHEEL,LH 16X4.8-8 DIFF T2
(Superseded to 07101202)

$125.99

$

Usually ships in 4-12 days

0

10

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

11

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 14

0

12

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

14

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 5

0
