921038 - Ariens Platinum 24" SHO Snow Blower, Ariens AX engine (SN: 100000 & Above) Engine Frame And Belt Drive Parts Diagram

Platinum 24" SHO Snow Blower, Ariens AX engine

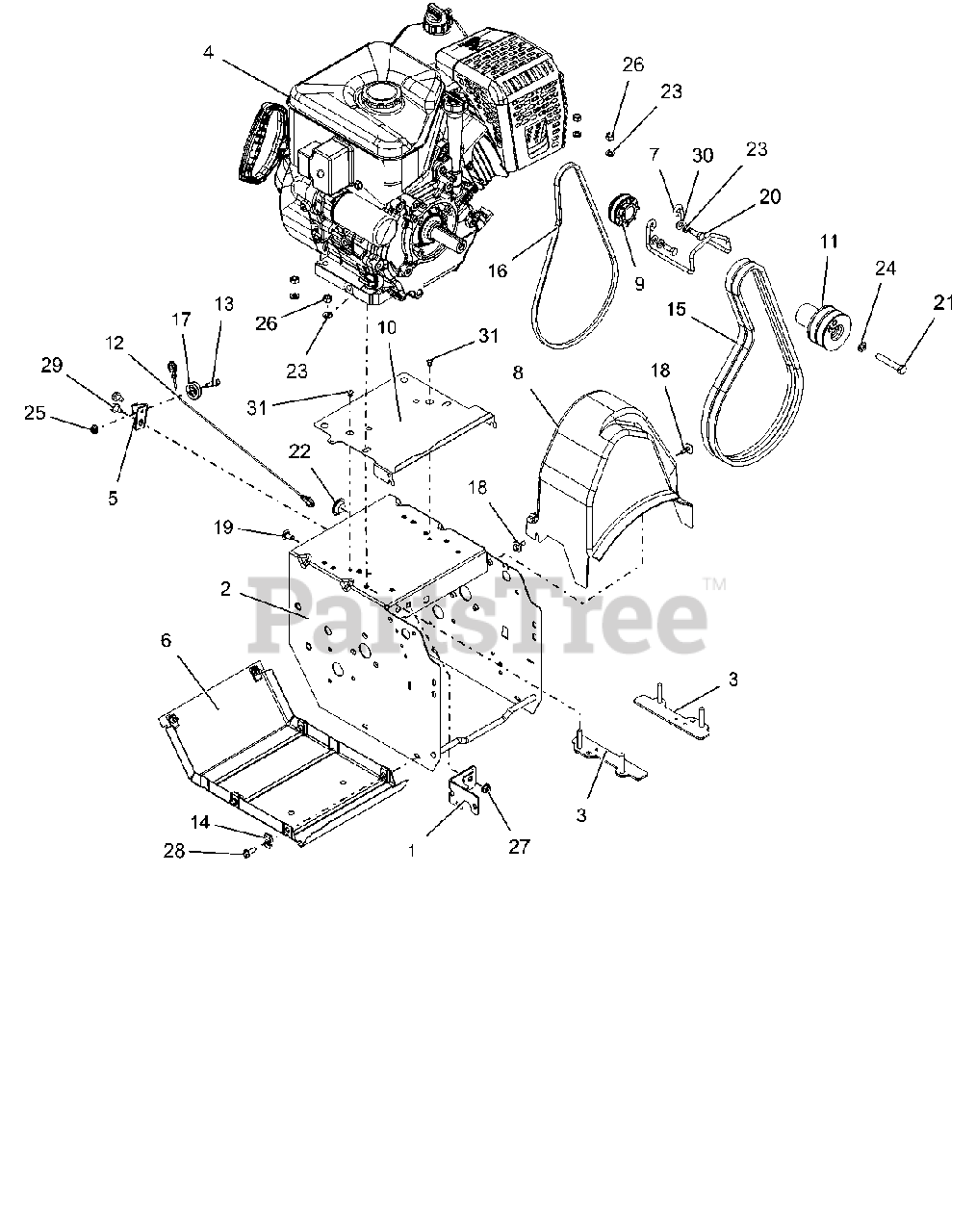

Engine Frame And Belt Drive Parts Diagram

  • Title

1

Ariens 00657059

WELDMENT, FRAME BRACKET

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 04585059

WELDMENT, FRAME - DELUXE 16"

$116.99

$

Usually ships in 4-12 days

0

3

Ariens 04637400

STRAP,ENGINE BOLT,ARIENS LRG

$18.99

$

Usually ships in 4-12 days

0

4

Ariens 08201020

ENGINE, AX369 GEN 3 120V/60W

$

$

Not available

5

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$5.49

$

Usually ships in 4-12 days

0

6

Ariens 00492359

COVER, BOTTOM

$49.99

$

Usually ships in 4-12 days

0

7

Ariens 02968300

FINGER, BELT
(Superseded to 05273200)

$18.99

$

In Stock, only 1 left!

0

8

Ariens 04084000

BELT COVER

$35.99

$

In Stock, only 2 left!

0

9

Ariens 04409100

SHEAVE, DRIVE

$10.99

$

In Stock, only 2 left!

0

10

Ariens 04584651

BAFFLE,ENGINE,ARIENS LRG BLOCK

$28.99

$

Usually ships in 4-12 days

0

11

Ariens 04754700

SHEAVE,ATTACHMENT 2-GRV

$60.99

$

Usually ships in 4-12 days

0

12

Ariens 06900505

CABLE, LOWER TRACTION (DELUXE)

$20.99

$

Usually ships in 4-12 days

0

13

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, only 4 left!

0

14

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07200703

V-BELT, HA-RAW EDGE (SET)

$69.99

$

In Stock, only 2 left!

0

16

Ariens 07200717

V-BELT, 3L-RAW EDGE

$23.99

$

In Stock, Qty 5

0

17

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

18

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

19

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

21

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$4.99

$

Usually ships in 4-12 days

0

22

Ariens 07500023

PLUG, HOLE - .875" NYLON

$1.99

$

Usually ships in 4-12 days

0

23

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 3 left!

0

24

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 19

0

25

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 9

0

26

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 9

0

27

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 19

0

29

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

30

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

32

Ariens 06401011

WSHR-FL-STL .390X.687X.060 ZC

Note: NOT SHOWN

$2.49

$

Usually ships in 4-12 days

0
