921039 - Ariens Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine (SN: 000101 & Above) Engine Frame And Belt Drive Parts Diagram

Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine

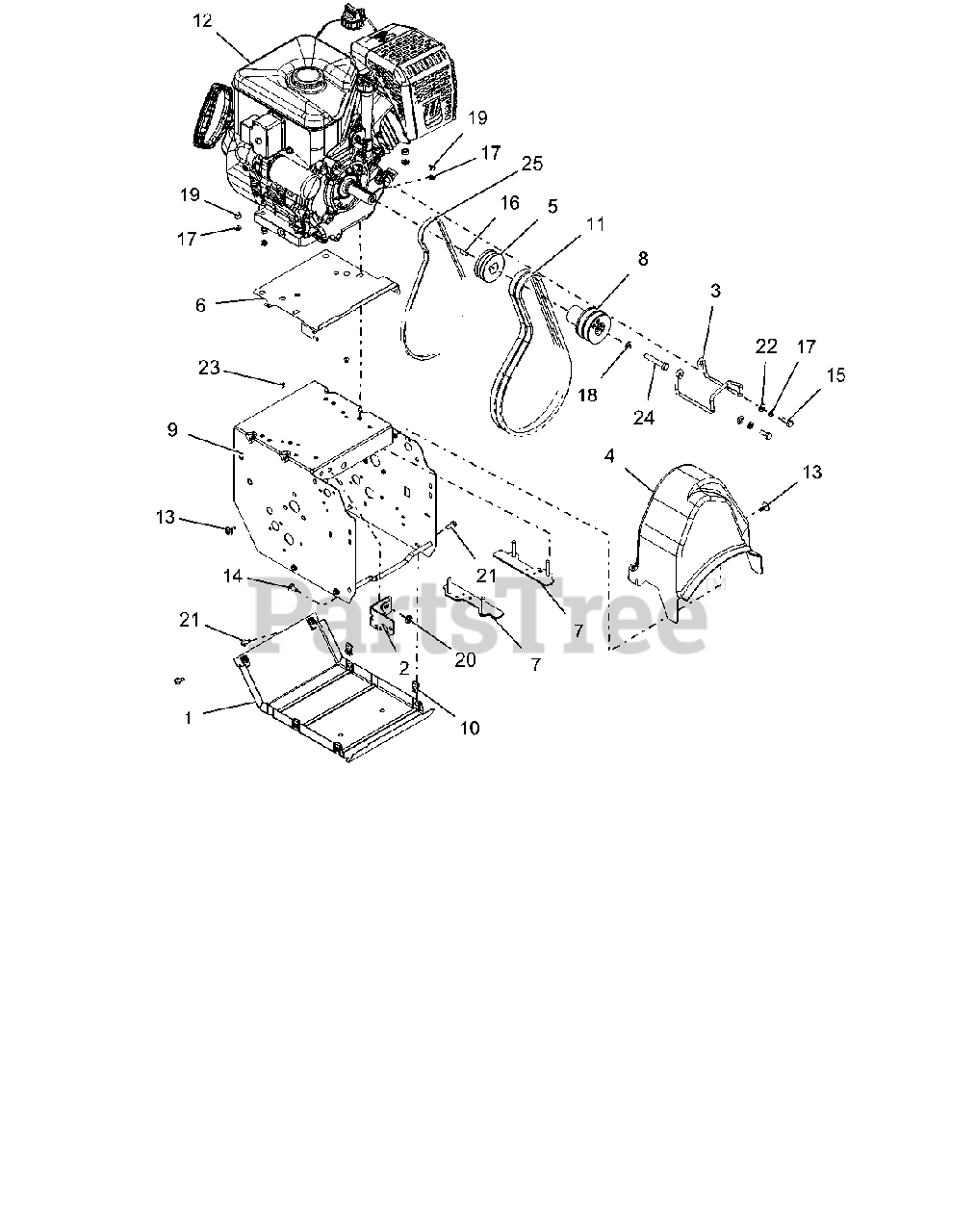

Engine Frame And Belt Drive Parts Diagram

  • Title

1

Ariens 00492359

COVER, BOTTOM

$49.99

$

Usually ships in 4-12 days

0

2

Ariens 00657059

WELDMENT, FRAME BRACKET

$34.99

$

Usually ships in 4-12 days

0

3

Ariens 02968300

FINGER, BELT
(Superseded to 05273200)

$18.99

$

In Stock, only 1 left!

0

4

Ariens 04084000

BELT COVER

$35.99

$

In Stock, only 2 left!

0

5

Ariens 04542600

SHEAVE DRIVE

$171.99

$

Usually ships in 4-12 days

0

6

Ariens 04584651

BAFFLE,ENGINE,ARIENS LRG BLOCK

$28.99

$

Usually ships in 4-12 days

0

7

Ariens 04637400

STRAP,ENGINE BOLT,ARIENS LRG

$18.99

$

Usually ships in 4-12 days

0

8

Ariens 04754700

SHEAVE,ATTACHMENT 2-GRV

$60.99

$

Usually ships in 4-12 days

0

9

Ariens 04875659

FRAME, MAIN-WELDMENT

$131.99

$

Usually ships in 4-12 days

0

10

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

11

Ariens 07200703

V-BELT, HA-RAW EDGE (SET)

$69.99

$

In Stock, only 2 left!

0

12

Ariens 08201020

ENGINE, AX369 GEN 3 120V/60W

$

$

Not available

13

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

14

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

16

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 8

0

17

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

18

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 18

0

19

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

20

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 15

0

22

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

24

Ariens 05901307

BLT-HEX .38-24X2.25 YWZC GR5
(Superseded to 05902006)

$4.99

$

Usually ships in 4-12 days

0

25

Ariens 07200637

V-BELT, 3L-WRAPPED

Note: (NO RUBBER BLEED THRU)

$36.99

$

In Stock, only 1 left!

0
