921039 - Ariens Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine (SN: 000101 & Above) Track Axles Parts Diagram

Platinum 28" SHO Track Snow Blower, Ariens AX 369cc engine

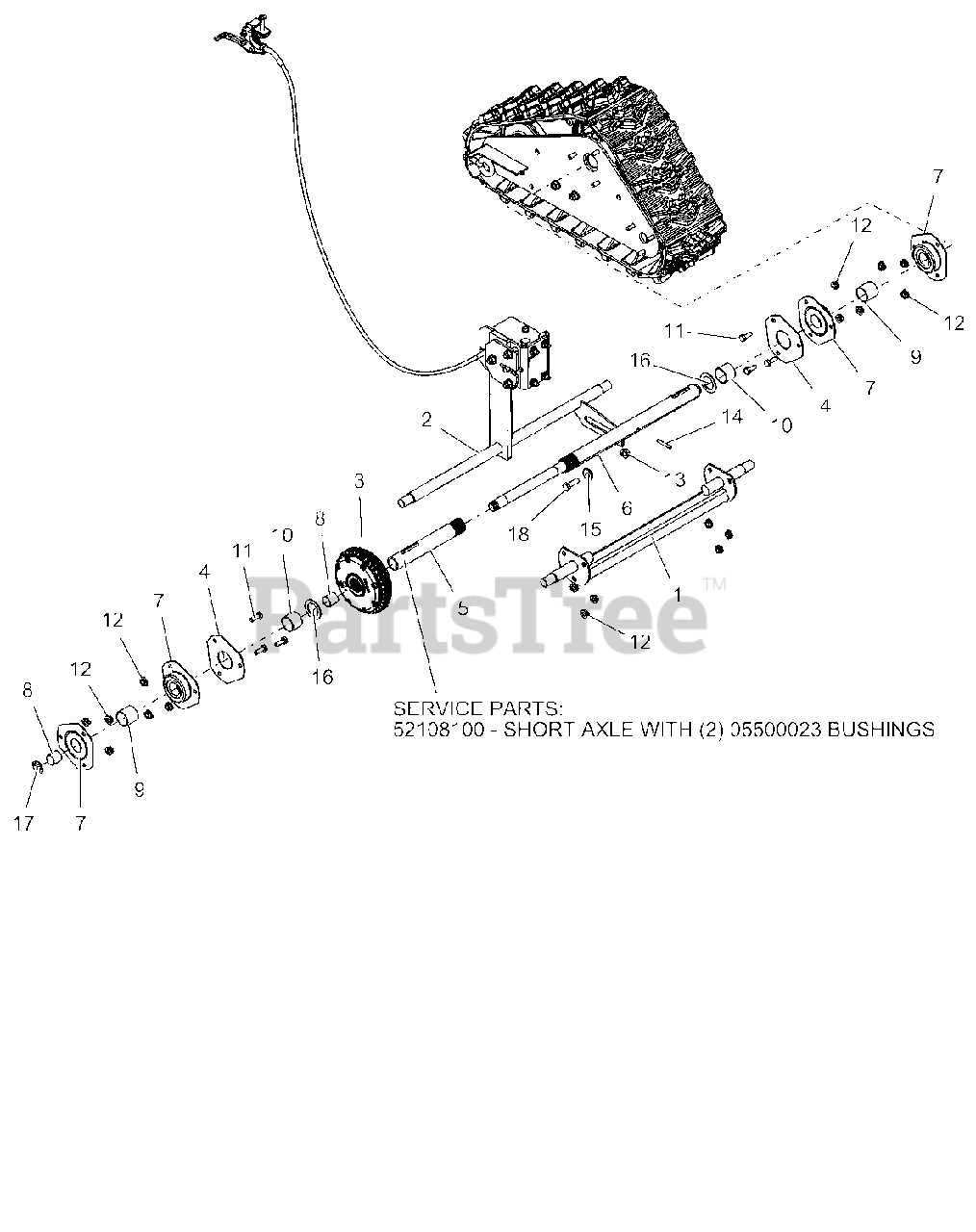

Track Axles Parts Diagram

  • Title

1

Ariens 03275800

AXLE, FRONT-DELUXE TRACK

$50.99

$

Usually ships in 4-12 days

0

2

Ariens 03293700

AXLE, REAR - DELUXE TRACK

$25.99

$

Usually ships in 4-12 days

0

3

Ariens 04584100

DIFFERENTIAL, AUTOMATIC

$136.99

$

In Stock, only 1 left!

0

4

Ariens 04796351

PLATE, BEARING SPACER

$13.99

$

Usually ships in 4-12 days

0

5

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

Note: SERVICE PART

$3.99

$

In Stock, Qty 19

0

5

Ariens 04852100

AXLE,SHORT - TRACK (DIFF)
(Superseded to 52108100)

$44.99

$

Usually ships in 4-12 days

0

5

Ariens 52108100

AXLE,SHORT TRACK W/BUSHINGS

Note: SERVICE PART

$44.99

$

Usually ships in 4-12 days

0

6

Ariens 04852200

AXLE,LONG - TRACK (DIFF)

$43.99

$

Usually ships in 4-12 days

0

7

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$43.99

$

In Stock, only 2 left!

0

8

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 19

0

9

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 5

0

10

Ariens 05501219

BSHG-SLV, 1.012X1.125X.875

$3.49

$

Usually ships in 4-12 days

0

11

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

12

Ariens 06500710

@NUT-LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$0.99

$

In Stock, Qty 11

0

13

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, only 4 left!

0

15

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, only 4 left!

0

16

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.49

$

In Stock, Qty 16

0

17

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, only 4 left!

0

18

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0
