921051 - Ariens Platinum 30" SHO Snow Blower, Ariens AX 414cc engine (SN: 035631 - 049999) Housing - 30" Parts Diagram

Platinum 30" SHO Snow Blower, Ariens AX 414cc engine

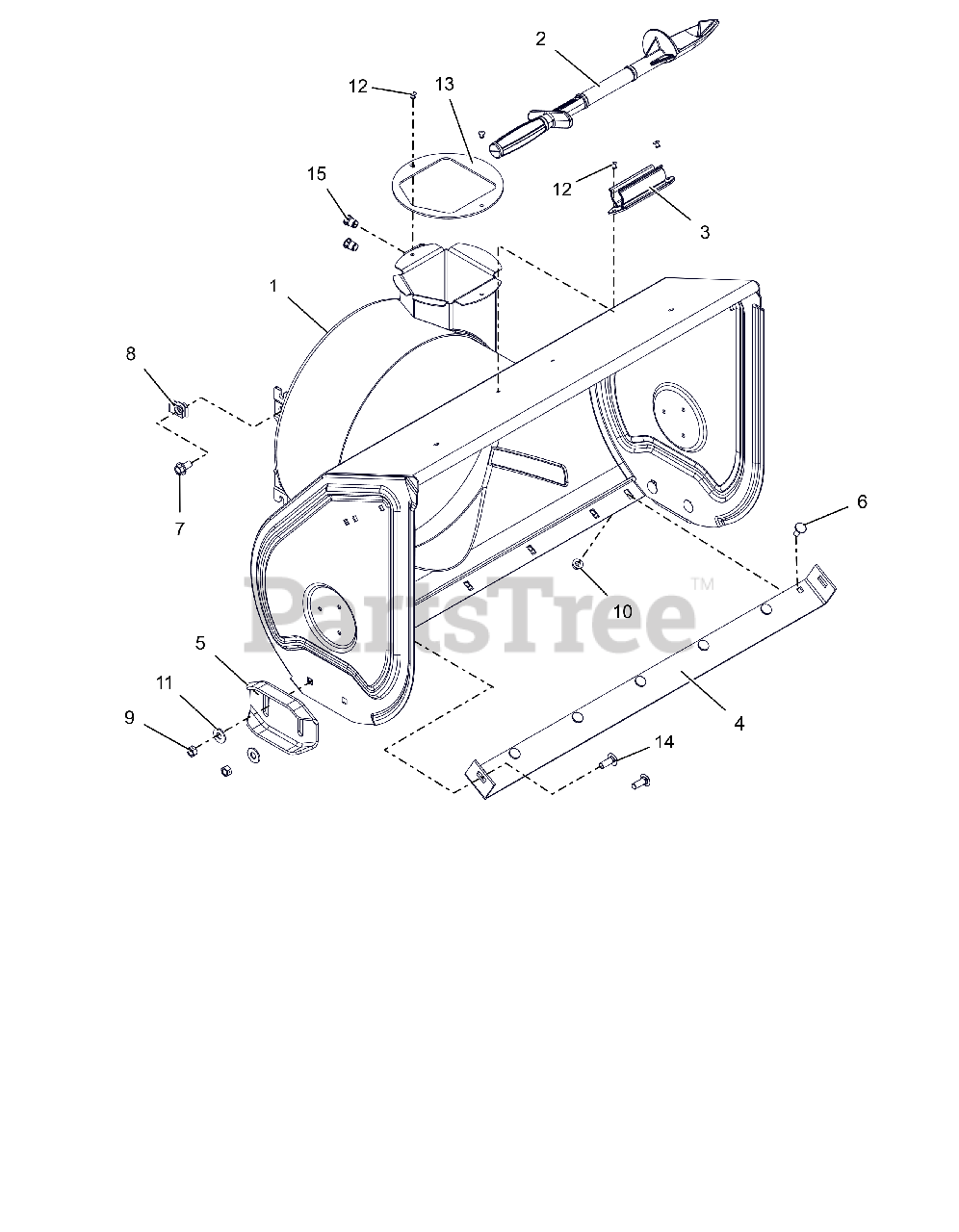

Housing - 30" Parts Diagram

  • Title

1

Ariens 52108600

BLOWER HOUSING W/DECAL 30"
(Superseded to 52112200)

$277.99

$

Usually ships in 4-12 days

0

2

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

3

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

4

Ariens 00661159

BLADE, SCRAPER-30"

$47.99

$

In Stock, Qty 17

0

5

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$20.99

$

In Stock, Qty 9

0

6

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 3 left!

0

8

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 3 left!

0

9

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

12

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

13

Ariens 00600100

BAFFLE, DISCHARGE NECK

$14.99

$

In Stock, only 2 left!

0

14

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

15

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$2.99

$

Usually ships in 4-12 days

0
