921057 - Ariens Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc engine (SN: 000101 - 099999) Housing - 28" Parts Diagram

Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc engine

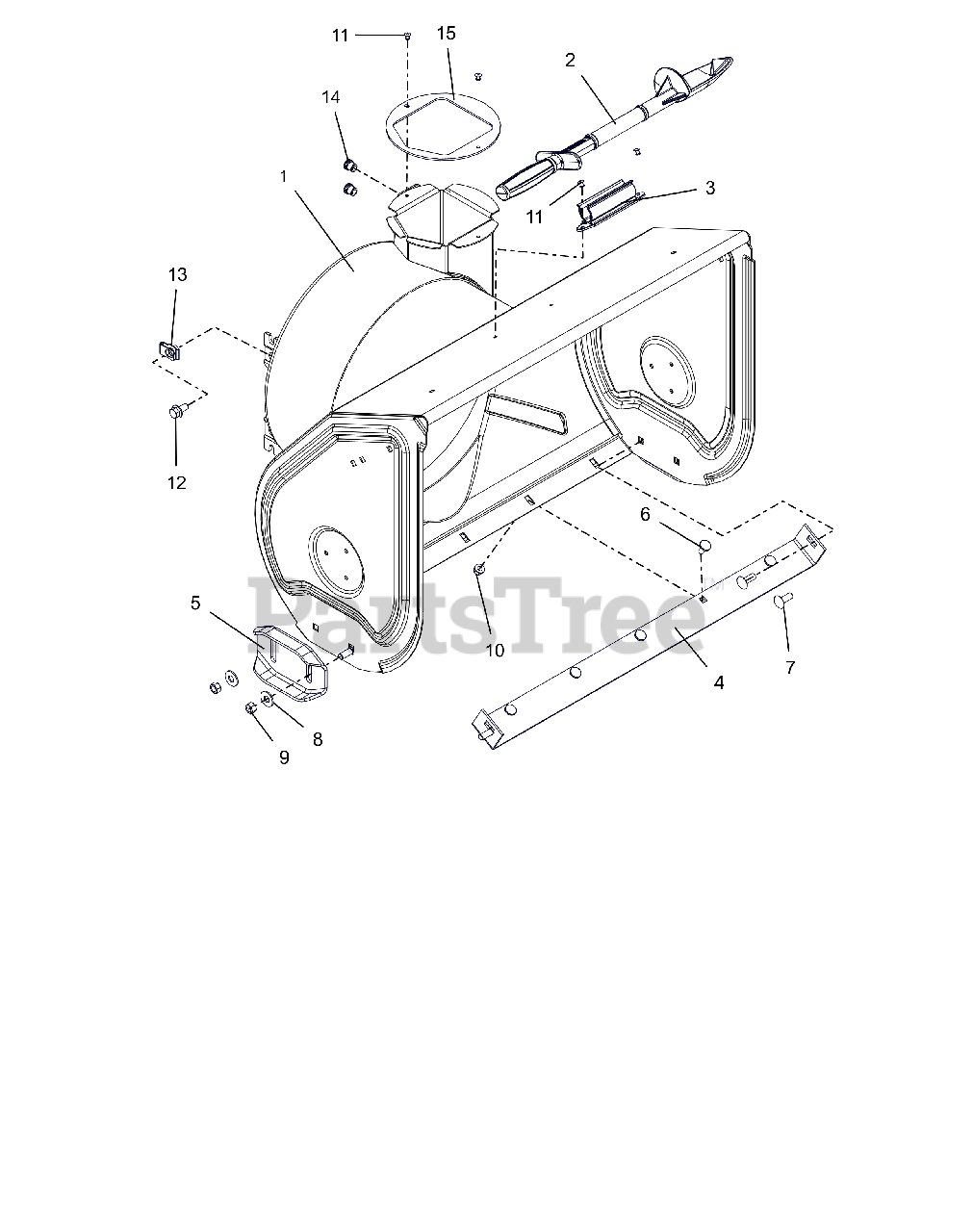

Housing - 28" Parts Diagram

  • Title

1

Ariens 52108500

BLOWER HOUSING W/DECAL 28"

$452.99

$

In Stock, only 1 left!

0

2

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 12

0

3

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

4

Ariens 04145959

BLADE, SCRAPER - 28"

$31.99

$

In Stock, Qty 20+

0

5

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$19.99

$

In Stock, Qty 20+

0

6

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06200235

BLT,RHSSN .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, only 2 left!

0

9

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 10

0

12

Ariens 07001824

BLT

$1.49

$

In Stock, only 2 left!

0

13

Ariens 07053300

NUT-RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

14

Ariens 07001805

NUT,THD,INSERT .38-16 ZC120

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 00600100

BAFFLE, DISCHARGE NECK

$12.99

$

Usually ships in 4-12 days

0
