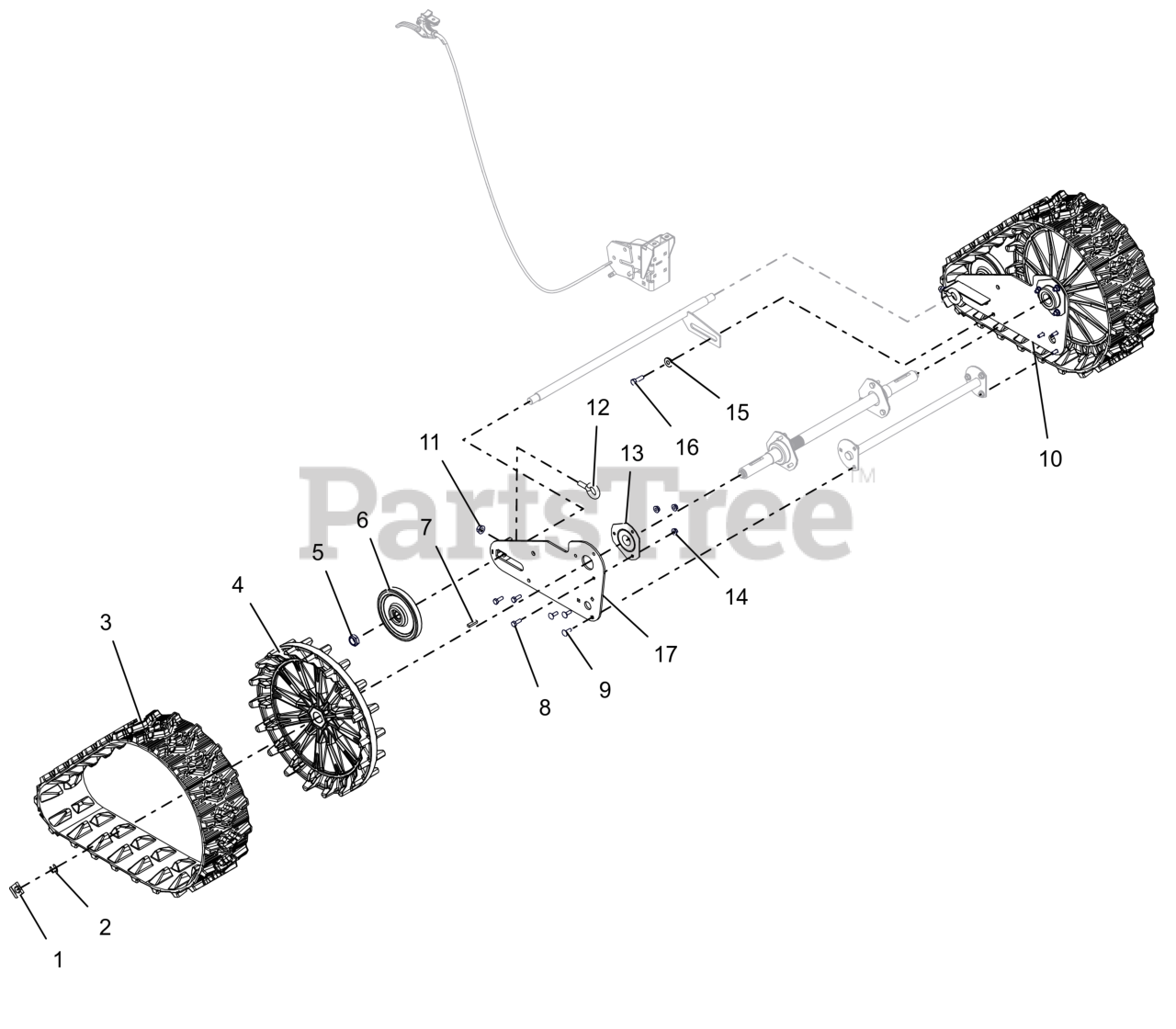

921057 - Ariens Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc engine (SN: 200000 & Above) Tracks Parts Diagram

Platinum 28" SHO RapidTrak Snow Blower, Ariens AX 369cc engine

Tracks Parts Diagram

  • Title

1

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

2

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 5

0

3

Ariens 05147600

TRACK, RUBBER - 22 PITCHES

$268.99

$

Usually ships in 4-12 days

0

4

Ariens 07500408

SPROCKET, LARGE TRACK DRIVE

$118.99

$

Usually ships in 4-12 days

0

5

Ariens 06500936

NUT, NYL LK .625-18 ZCC

$4.99

$

In Stock, Qty 12

0

6

Ariens 03293600

WHEEL, BOGIE - SINGLE BEARING

$29.99

$

Usually ships in 4-12 days

0

7

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

8

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

9

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$1.49

$

Usually ships in 4-12 days

0

10

Ariens 05153351

PLATE, SIDE-BWT LH WLDMT

$58.99

$

Usually ships in 4-12 days

0

11

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$7.49

$

Usually ships in 4-12 days

0

13

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$44.99

$

In Stock, Qty 7

0

14

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 8

0

15

Ariens 05501127

BSHG-FLG .325X.499X.3X.875

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.99

$

In Stock, only 4 left!

0

17

Ariens 05153451

PLATE, SIDE-BWT RH WLDMT

$52.99

$

Usually ships in 4-12 days

0
