921067 (PB 28) - Ariens 28" Power Brush, Ariens AX 179cc engine (SN: 000101 & Above) Frame & Shift Controls Parts Diagram

28" Power Brush, Ariens AX 179cc engine

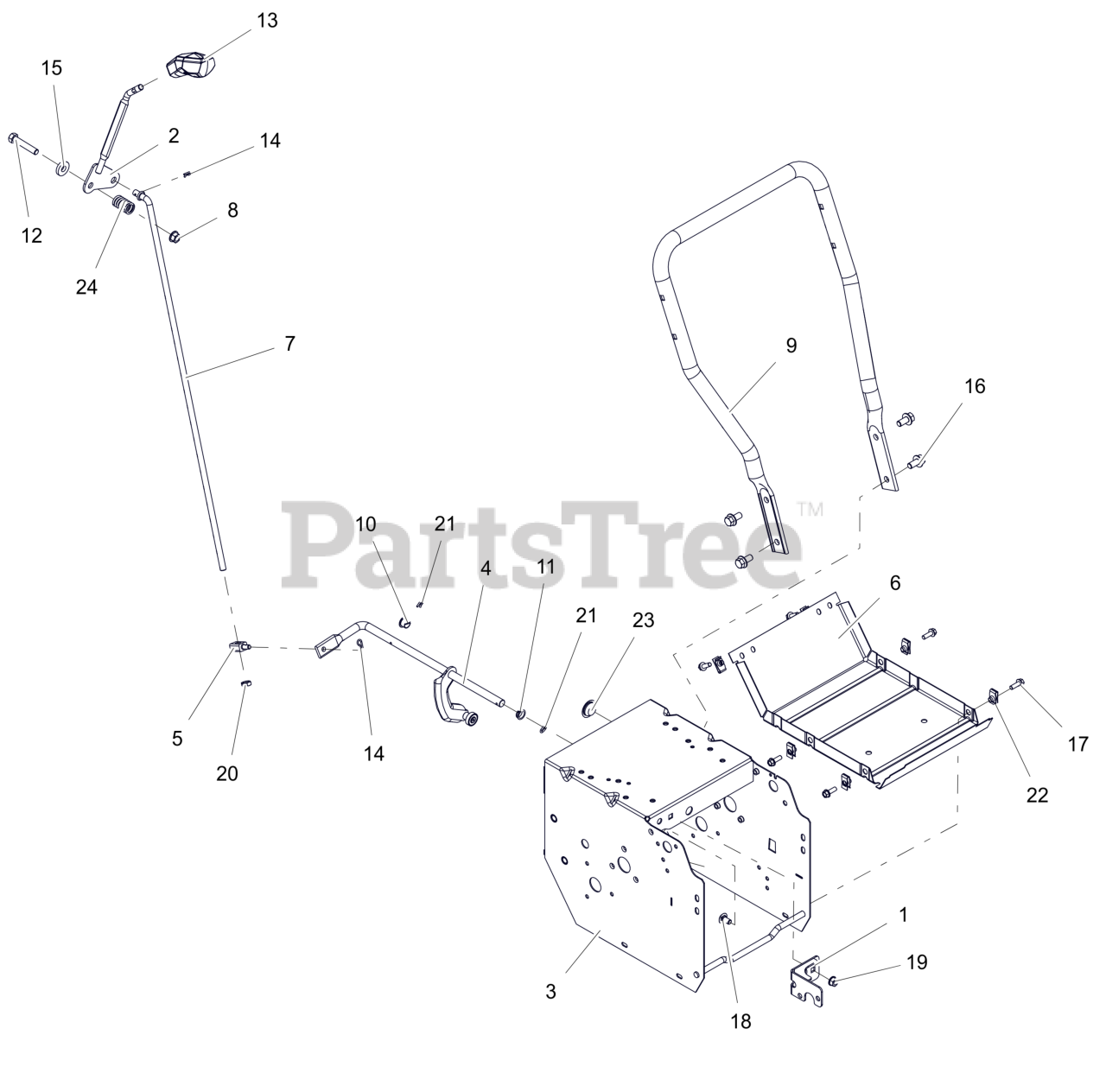

Frame & Shift Controls Parts Diagram

  • Title

1

Ariens 00657059

WELDMENT, FRAME BRACKET

$36.99

$

Usually ships in 4-12 days

0

2

Ariens 04846700

LEVER, CONTROL-SHIFT(WELDMENT)
(Superseded to 30191200)

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 04585059

WELDMENT, FRAME - DELUXE 16"

$126.99

$

Usually ships in 4-12 days

0

4

Ariens 04987300

ARM, SHIFT-SMALL DASH (ASSY)

$51.99

$

Usually ships in 4-12 days

0

5

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$9.99

$

In Stock, Qty 11

0

6

Ariens 00492359

COVER, BOTTOM

$53.99

$

In Stock, only 2 left!

0

7

Ariens 09167500

ROD, SHIFT - COMPACT

$31.99

$

In Stock, only 1 left!

0

8

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.99

$

In Stock, Qty 20+

0

9

Ariens 04749451

HANDLEBAR, LOWER - SM DELUXE

$113.99

$

Usually ships in 4-12 days

0

10

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$3.99

$

In Stock, Qty 20+

0

11

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.99

$

In Stock, only 2 left!

0

12

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

13

Ariens 09382800

KNOB, CONTROL

$13.99

$

In Stock, Qty 10

0

14

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$1.99

$

In Stock, Qty 20+

0

15

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$3.99

$

In Stock, Qty 20+

0

16

Ariens 07001824

BLT

$3.49

$

In Stock, Qty 20+

0

17

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$2.99

$

In Stock, Qty 20+

0

18

Ariens 06200333

BLT, RHSSN .31-18X.625 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$1.99

$

In Stock, Qty 20+

0

21

Ariens 06944800

CLIP, SPRING

$1.99

$

In Stock, Qty 20+

0

22

Ariens 07009000

NUT-RTNR .25-20X.56

$1.99

$

In Stock, Qty 20+

0

23

Ariens 07500023

PLUG, HOLE - .875" NYLON

$2.99

$

Usually ships in 4-12 days

0

24

Ariens 08335700

SG-COMP .125X.781X1.250

$10.99

$

In Stock, only 3 left!

0
