921069 - Ariens Deluxe 24" Snow Blower, Ariens AX 252cc engine Idlers and Brake Parts Diagram

Deluxe 24" Snow Blower, Ariens AX 252cc engine

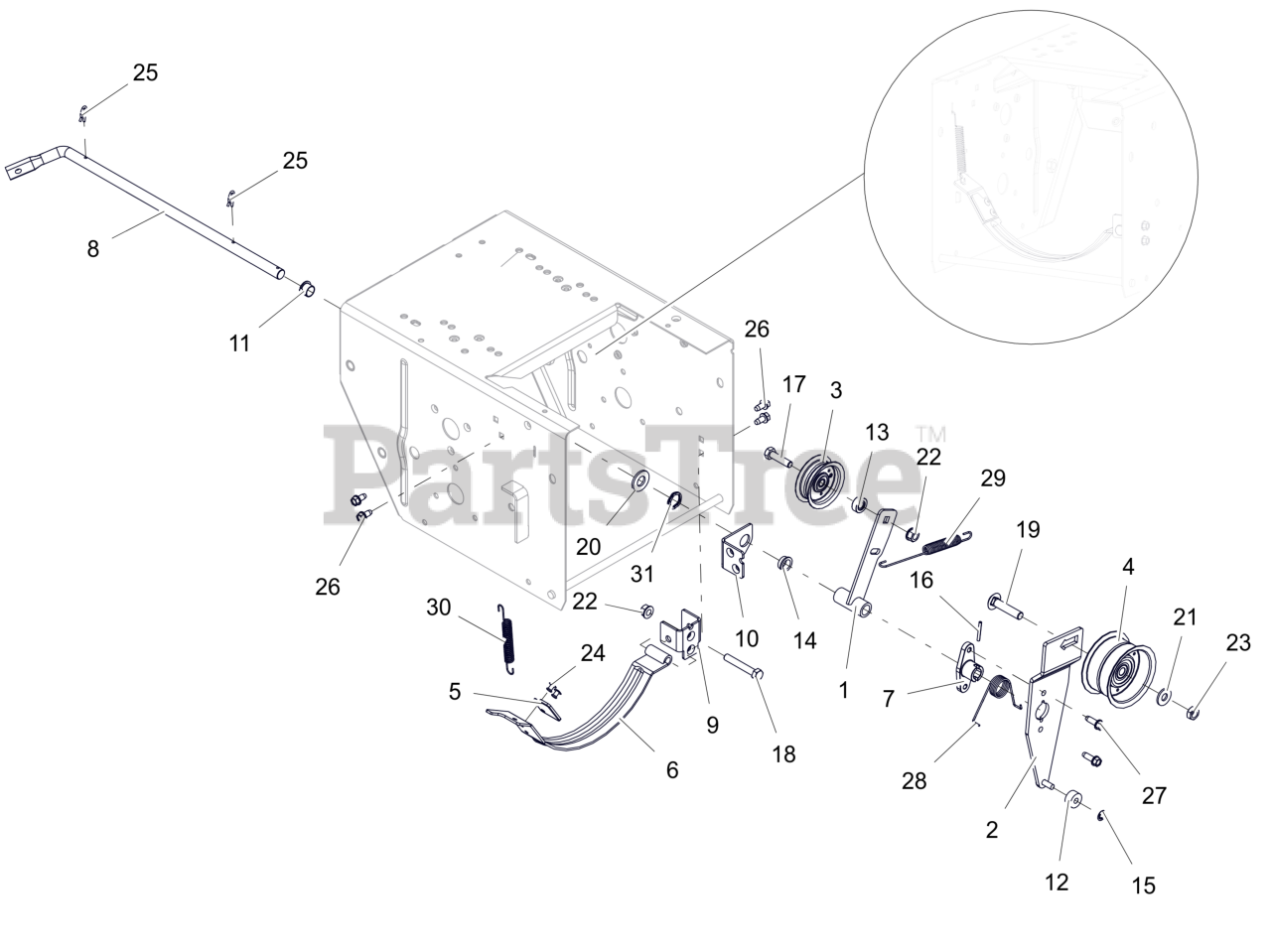

Idlers and Brake Parts Diagram

  • Title

1

Ariens 00371600

ARM, IDLER -TRACTION

$11.99

$

In Stock, only 2 left!

0

2

Ariens 05144200

ARM, IDLER - ATTACHMENT

$23.99

$

Usually ships in 4-12 days

0

3

Ariens 07338900

IDLER, FLAT - 2.00"

$23.99

$

In Stock, only 3 left!

0

4

Ariens 07348900

IDLER, FLANGE -2.75 OD X .375 ID

$17.99

$

Usually ships in 4-12 days

0

5

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, only 2 left!

0

6

Ariens 00374900

ARM, BRAKE-ATTACHMENT

$25.99

$

In Stock, only 2 left!

0

7

Ariens 00384200

HUB, BRAKE ARM

$6.49

$

In Stock, only 2 left!

0

8

Ariens 00384300

ARM, ATTACHMENT

$19.99

$

In Stock, only 2 left!

0

9

Ariens 00430700

PIVOT, BRAKE

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 04511600

BRKT, SUPPORT

$3.99

$

In Stock, Qty 15

0

11

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.99

$

In Stock, Qty 14

0

12

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$1.99

$

Usually ships in 4-12 days

0

13

Ariens 05501115

SPCR, BRG .315X.500X.358X.281

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 05501119

BSHG,FLANGE .500X.625X.270X.75

$3.99

$

In Stock, only 2 left!

0

15

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, only 4 left!

0

17

Ariens 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$2.99

$

In Stock, Qty 6

0

18

Ariens 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.99

$

In Stock, Qty 13

0

19

Ariens 06200329

BLT, RHSSN .38-16X1.75 G5 ZCC

$3.99

$

In Stock, Qty 8

0

20

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$1.49

$

In Stock, only 4 left!

0

21

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.99

$

In Stock, Qty 20+

0

22

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06500914

NUT-LK-CTR-JAM .375-16 GB ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06800140

RVT, POP .1875 ZCC

$1.49

$

In Stock, only 3 left!

0

25

Ariens 06944800

CLIP, SPRING

$1.49

$

In Stock, Qty 6

0

26

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

28

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 5

0

29

Ariens 08300022

SG-TENS .06X.482X5.35

$6.49

$

In Stock, only 2 left!

0

30

Ariens 08300104

SPRING-EXT .437 X .438 X 2.64

$3.99

$

In Stock, only 4 left!

0

31

Ariens 08300534

WAVE SPRING .600X.875X.25FH

$3.99

$

In Stock, Qty 10

0
