921070 - Ariens Deluxe 28" Snow Blower, Ariens AX 252cc engine Engine, Frame and Belt Drive Parts Diagram

Deluxe 28" Snow Blower, Ariens AX 252cc engine

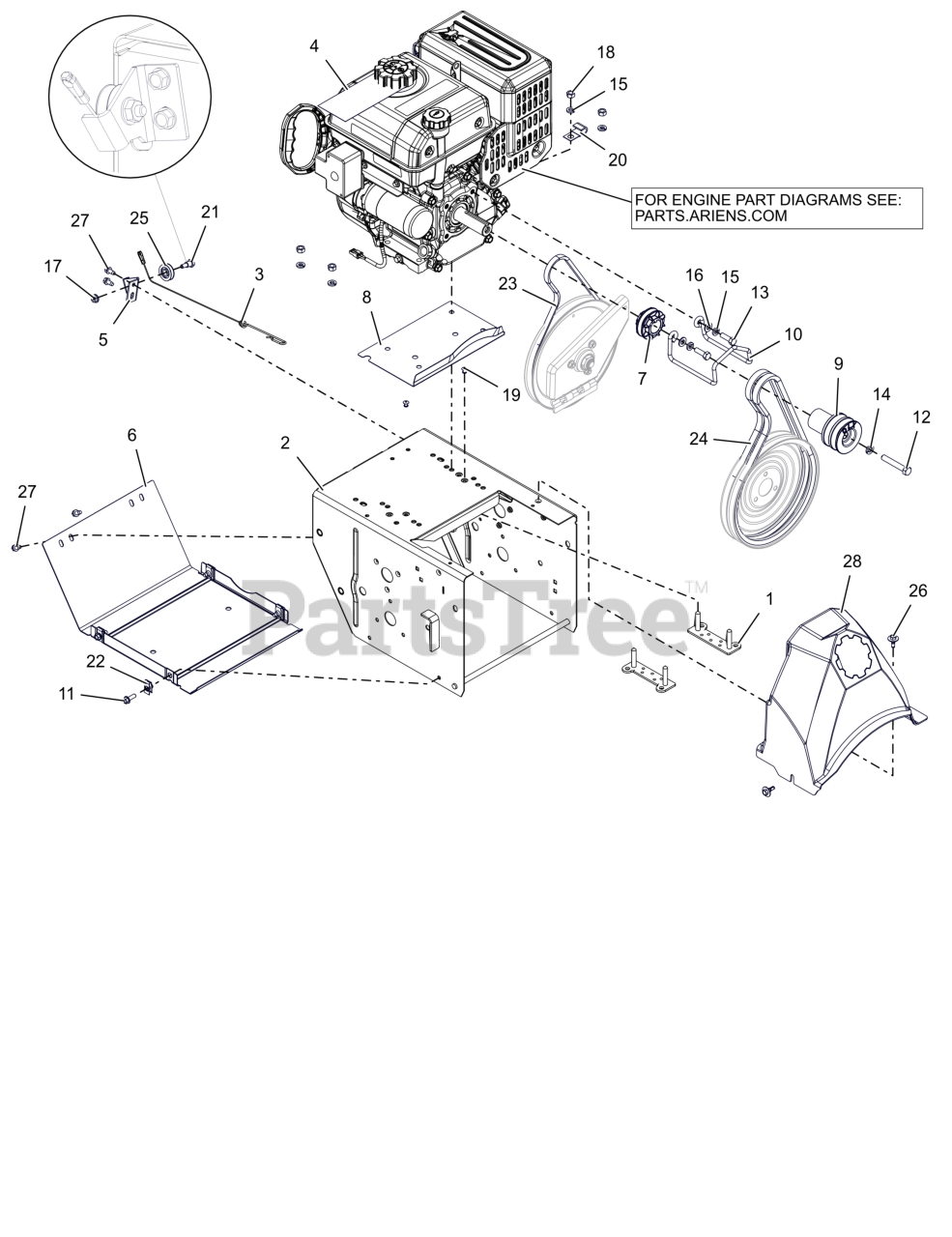

Engine, Frame and Belt Drive Parts Diagram

  • Title

1

Ariens 04999800

STRAP, BOLT - SMALL ENGINE

$10.99

$

Usually ships in 4-12 days

0

2

Ariens 05250559

FRAME, MAIN - 14GA DELUXE (ORANGE)

$183.99

$

Usually ships in 4-12 days

0

3

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$18.99

$

In Stock, only 2 left!

0

4

Ariens 08201509

ENGINE, ARIENS AX252 120V/60W

$

$

Currently unavailable

5

Ariens 00373000

BRKT, CABLE PULLEY

$5.49

$

Usually ships in 4-12 days

0

6

Ariens 00375159

COVER, BOTTOM

$84.99

$

Usually ships in 4-12 days

0

7

Ariens 04409100

SHEAVE, DRIVE

$10.99

$

In Stock, only 2 left!

0

8

Ariens 04985359

BAFFLE- WATER - SMALL

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 05243500

SHEAVE, ATTACHMENT - STANDARD 2 GRV

$41.99

$

Usually ships in 4-12 days

0

10

Ariens 05273200

FINGER, BELT

$18.99

$

In Stock, only 2 left!

0

11

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.99

$

In Stock, Qty 6

0

12

Ariens 05902006

BLT, HEX .38-24X2.25 G5 ZCC

$4.99

$

In Stock, only 2 left!

0

13

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 7

0

15

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, Qty 5

0

16

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06500938

NUT, HEX .312-18 ZCC

$1.49

$

In Stock, Qty 8

0

19

Ariens 06800140

RVT, POP .1875 ZCC

$1.49

$

In Stock, only 3 left!

0

20

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

21

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, only 4 left!

0

22

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 17

0

23

Ariens 07200633

V-BELT, 3L-WRAPPED

$18.99

$

In Stock, only 2 left!

0

24

Ariens 07200802

V-BELT, HA-RAW EDGE (SET)

$59.99

$

In Stock, only 1 left!

0

25

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

26

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

27

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

28

Ariens 09382000

COVER, BELT - SMALL

$11.99

$

Usually ships in 4-12 days

0
