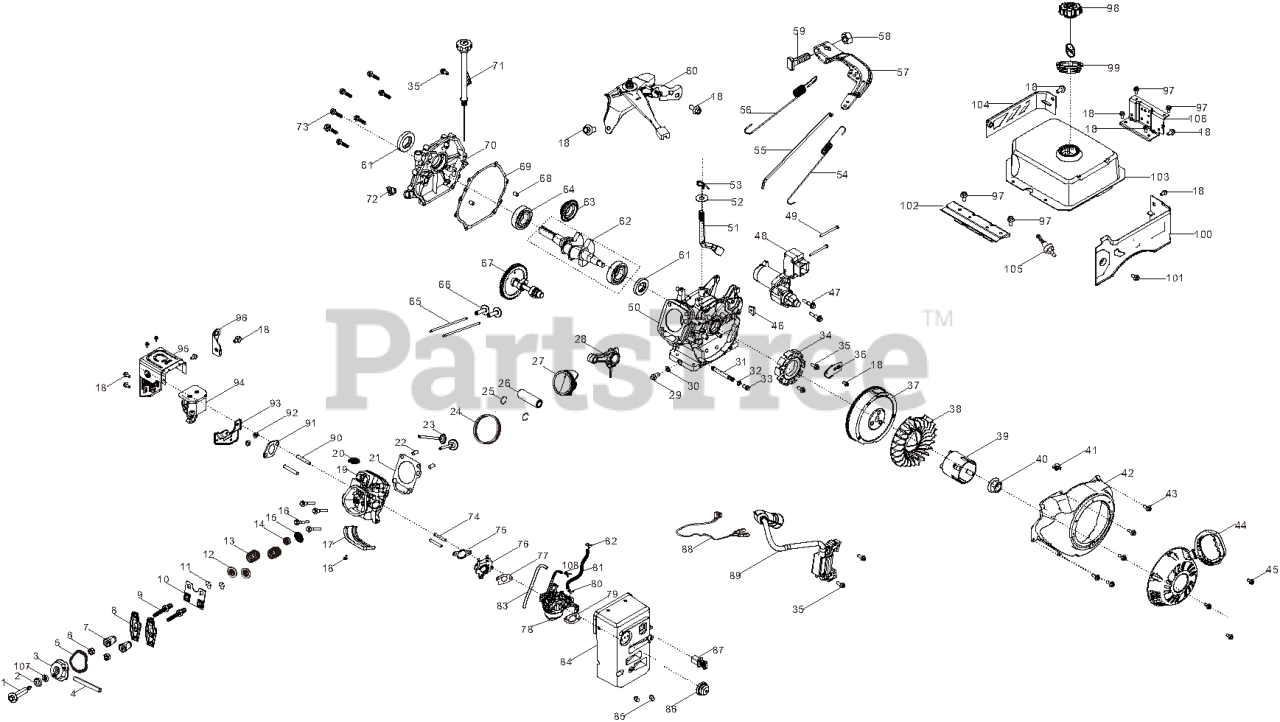

921071 - Ariens Deluxe 30" Snow Blower, Ariens AX 301cc engine Engine - 08201510 Parts Diagram

Deluxe 30" Snow Blower, Ariens AX 301cc engine

Engine - 08201510 Parts Diagram

Title

Ariens 08201510

ENGINE, ARIENS AX301 120V/60W

Note: Complete Engine Assembly

$

$

Currently unavailable 

1

Ariens 20100015

BOLT, VALVE COVER

$3.49

$

Usually ships in 0 days

2

Ariens 20100016

SEAL, VALVE COVER BOLT

$2.99

$

Usually ships in 0 days

3

Ariens 20100033

ASM, CYLINDER HEAD COVER

$10.99

$

Usually ships in 0 days

4

Ariens 20100108

TUBE, BREATHER

$1.99

$

Usually ships in 0 days

5

Ariens 20100014

GASKET, VALVE COVER

$3.99

$

Usually ships in 0 days

6

Ariens 20100060

NUT, VALVE LOCK

$1.49

$

Usually ships in 0 days

7

Ariens 20100062

NUT, VALVE ADJUSTING

$1.99

$

Usually ships in 0 days

8

Ariens 20100059

ROCKER, VALVE

$1.99

$

Usually ships in 0 days

9

Ariens 20100061

ROCKSHAFT BOLT

$1.99

$

Usually ships in 0 days

10

Ariens 20100055

ASM, LIFTER STOPPER PLATE

$1.99

$

Usually ships in 0 days

11

Ariens 20100022

CLAMP, VALVE LOCK

$1.49

$

Usually ships in 0 days

12

Ariens 20100026

SEAT, VALVE SPRING

$2.99

$

Usually ships in 0 days

13

Ariens 20100020

SPRING, VALVE

$1.99

$

Usually ships in 0 days

14

Ariens 20100017

GUIDE, SEAL

$2.99

$

Usually ships in 0 days

15

Ariens 20100021

RETAINER, VALVE SPRING

$1.99

$

Usually ships in 0 days

16

Ariens 20100012

CYLINDER HEAD BOLT

$2.99

$

Usually ships in 0 days

17

Ariens 20100117

SHROUD, CYLINDER BODY

$3.99

$

Usually ships in 0 days

18

Ariens 20100147

BOLT, M6X12 HEX FLANGE

$

$

Not available 

19

Ariens 20100031

ASM, CYLINDER HEAD

$56.99

$

Usually ships in 0 days

20

Ariens 20001113

SPARK PLUG - PLATINUM

$10.99

$

In Stock, Qty 5

21

Ariens 20100029

GASKET, CYLINDER HEAD

$6.49

$

Usually ships in 0 days

22

Ariens 20100180

POSITION PIN

$1.49

$

Usually ships in 0 days

23

Ariens 20100024

VALVES SET

$16.99

$

Usually ships in 0 days

24

RING ASSY, PISTON

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available 

25

CLIP, PISTON PIN

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available 

26

PIN, PISTON

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available 

27

PISTON

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available 

28

ROD, CONNECTING

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available 

29

Ariens 20100004

BOLT, DRAIN PLUG

$1.99

$

Usually ships in 0 days

30

Ariens 20100175

FLAT WASHER

$1.49

$

Usually ships in 0 days

31

Ariens 20100005

TUBE, OIL DRAIN

$7.99

$

Usually ships in 0 days

32

Ariens 20100174

FLAT WASHER - GRADE A

$1.49

$

Usually ships in 0 days

33

Ariens 20100003

BOLT, DRAIN PLUG

$1.99

$

Usually ships in 0 days

34

Ariens 20100130

COIL SUBASSEMBLY, CHARGE

$31.99

$

Usually ships in 0 days

35

Ariens 20100150

BOLT, M6X28 HEX FLANGE

$

$

Not available 

36

Ariens 20100127

CLAMP, CHARGE COIL

$1.49

$

Usually ships in 0 days

37

Ariens 20100050

FLYWHEEL SUBASSEMBLY

$68.99

$

Usually ships in 0 days

38

Ariens 20100119

IMPELLER

$7.99

$

Usually ships in 0 days

39

Ariens 20100121

CUP, STARTER

$9.49

$

Usually ships in 0 days

40

Ariens 20100048

NUT, FLYWHEEL

$2.99

$

Usually ships in 0 days

41

Ariens 20100188

WIRE CLIP

$1.49

$

Usually ships in 0 days

42

Ariens 20100125

SHROUD

$22.99

$

Usually ships in 0 days

43

Ariens 20100158

BOLT, M6X12 GRADE B HEX FLANGE

$1.49

$

Usually ships in 0 days

44

Ariens 20100126

STARTER ASSY, RECOIL

$37.99

$

Usually ships in 0 days

45

Ariens 20100144

BOLT, M6X8 HEX FLANGE

$1.49

$

Usually ships in 0 days

46

Ariens 20100124

PLUG, RUBBER

$1.49

$

Usually ships in 0 days

47

Ariens 20100156

BOLT, M8X40 HEX FLANGE

$1.49

$

Usually ships in 0 days

48

Ariens 20100132

STARTING MOTOR ASSEMBLY

$170.99

$

Usually ships in 0 days

49

Ariens 20100160

SCREW, PAN HEAD M4X55X0.7

$1.49

$

Usually ships in 0 days

50

Not Available thru Ariens

$

$

Not available 

51

Ariens 20100075

ARM, GOVERNOR

$3.99

$

Usually ships in 0 days

52

Ariens 20100176

FLAT WASHER

$1.49

$

Usually ships in 0 days

53

Ariens 20100177

COTTER PIN

$0.99

$

Usually ships in 0 days

54

Ariens 20100074

SPRING, THROTTLE VLV RETURNING

$0.99

$

Usually ships in 0 days

55

Ariens 20100078

ROD, GOVERNEOR

$1.49

$

Usually ships in 0 days

56

Ariens 20100080

SPRING, GOVERNOR

$1.49

$

Usually ships in 0 days

57

Ariens 20100082

ASM, GOVERNOR BRACKET

$3.99

$

Usually ships in 0 days

58

Ariens 20100167

HEXAGON NUT WITH FLANGE

$1.49

$

Usually ships in 0 days

59

Ariens 20100083

BOLT, GOVERNOR SUPPORT

$1.49

$

Usually ships in 0 days

60

Ariens 20100093

CONTROL ASSY, THROTTLE

$14.99

$

Usually ships in 0 days

61

Ariens 20100187

SEAL, OIL

$7.99

$

Usually ships in 0 days

62

Ariens 20100046

CRANKSHAFT ASSY

$75.99

$

Usually ships in 0 days

63

Ariens 20100090

GEAR ASSY, GOVERNOR

$9.49

$

Usually ships in 0 days

64

Ariens 20100185

BRG, DEEP GROOVE BALL

$14.99

$

Usually ships in 0 days

65

Ariens 20100051

ROD, PUSH

$3.99

$

Usually ships in 0 days

66

Ariens 20100054

TAPPET, VALVE

$3.99

$

Usually ships in 0 days

67

Ariens 20100057

CAMSHAFT ASSY

$37.99

$

Usually ships in 0 days

68

Ariens 20100182

POSITION PIN

$1.49

$

Usually ships in 0 days

69

Ariens 20100001

GASKET, CRANKCASE

$7.99

$

Usually ships in 0 days

70

Ariens 20100010

COVER, CRANKCASE

$43.99

$

Usually ships in 0 days

71

Ariens 20100065

DIPSTICK SUBASSEMBLY, OIL

$11.99

$

Usually ships in 0 days

72

Ariens 20100067

ASM, ENGINE OIL PLUG

$2.99

$

Usually ships in 0 days

73

Ariens 20100155

BOLT, M8X35 HEX FLANGE

$1.49

$

Usually ships in 0 days

74

Ariens 20100163

STUD BOLT (BM=2D)

$3.49

$

Usually ships in 0 days

75

Ariens 20100107

GASKET, INLET

$0.99

$

Usually ships in 0 days

76

Ariens 20100072

PLATE, CARBURETOR INSULATOR

$2.99

$

Usually ships in 0 days

77

Ariens 20100069

CARBURETOR SEAL GASKET

$0.99

$

Usually ships in 0 days

78

Ariens 20100085

CARBURETOR ASSY

$50.99

$

Usually ships in 0 days

79

Ariens 20100106

AIR CLEANER SEAL GASKET

$2.99

$

Usually ships in 0 days

80

Ariens 20100189

PIPE CLAMP

$1.49

$

Usually ships in 0 days

81

Ariens 20100191

TUBE, FUEL

$5.49

$

Usually ships in 0 days

82

Ariens 20100190

PIPE CLAMP

$1.49

$

Usually ships in 0 days

83

Ariens 20100089

LINE, PRIMER

$1.49

$

Usually ships in 0 days

84

Ariens 20100140

ASM, CONTROL PANEL

$17.99

$

Usually ships in 0 days

85

Ariens 20100170

ACORN HEXAGON NUTS

$1.99

$

Usually ships in 0 days

86

Ariens 20100087

BULB, PRIMER

$7.99

$

Usually ships in 0 days

87

Ariens 20100139

ASM, STOP ENGINE SWITCH

$7.99

$

Usually ships in 0 days

88

Ariens 20100137

WIRE, IGNITION COIL STOP ENG

$5.49

$

Usually ships in 0 days

89

Ariens 20100134

COIL, IGNITION

$22.99

$

Usually ships in 0 days

90

Ariens 20100164

STUD BOLT (BM=2D)

$2.99

$

Usually ships in 0 days

91

Ariens 20100111

GASKET, EXHAUST OUTLET

$1.99

$

Usually ships in 0 days

92

Ariens 20100172

LOCK NUT

$2.99

$

Usually ships in 0 days

93

Ariens 20100141

MOUNTING BRACKET

$6.49

$

Usually ships in 0 days

94

Ariens 20100114

MUFFLER ASSY

$34.99

$

Usually ships in 0 days

95

Ariens 20100116

SHIELD, HEAT

$31.99

$

Usually ships in 0 days

96

Ariens 20100194

TRANSPORT HANGER

$2.99

$

Usually ships in 0 days

97

Ariens 20100153

BOLT, M8X20 HEX FLANGE

$1.49

$

Usually ships in 0 days

98

Ariens 20100104

CAP, FUEL

$10.99

$

Usually ships in 0 days

99

Ariens 20100102

FUEL GAUGE

$1.99

$

Usually ships in 0 days

100

Ariens 20100095

SHIELD,FUEL TANK

$5.49

$

Usually ships in 0 days

101

Ariens 20100148

BOLT, M6X16 HEX FLANGE

$1.49

$

Usually ships in 0 days

102

Ariens 20100097

FUEL TANK INSTALL REAR BRKT

$12.99

$

Usually ships in 0 days

103

Ariens 20100099

FUEL TANK

$35.99

$

Usually ships in 0 days

104

Ariens 20100096

FUEL TANK SHIELD 2

$3.99

$

Usually ships in 0 days

105

Ariens 20100103

OUTLET WITH FILTER

$2.99

$

Usually ships in 0 days

106

Ariens 20100094

FRAME, FUEL TANK INSTALLATION

$12.99

$

Usually ships in 0 days

108

Ariens 20100193

CLAMP

$0.99

$

Usually ships in 0 days
