921072 - Ariens Deluxe 28" SHO Snow Blower, Ariens AX 301cc engine Controls - Small Dash Parts Diagram

Deluxe 28" SHO Snow Blower, Ariens AX 301cc engine

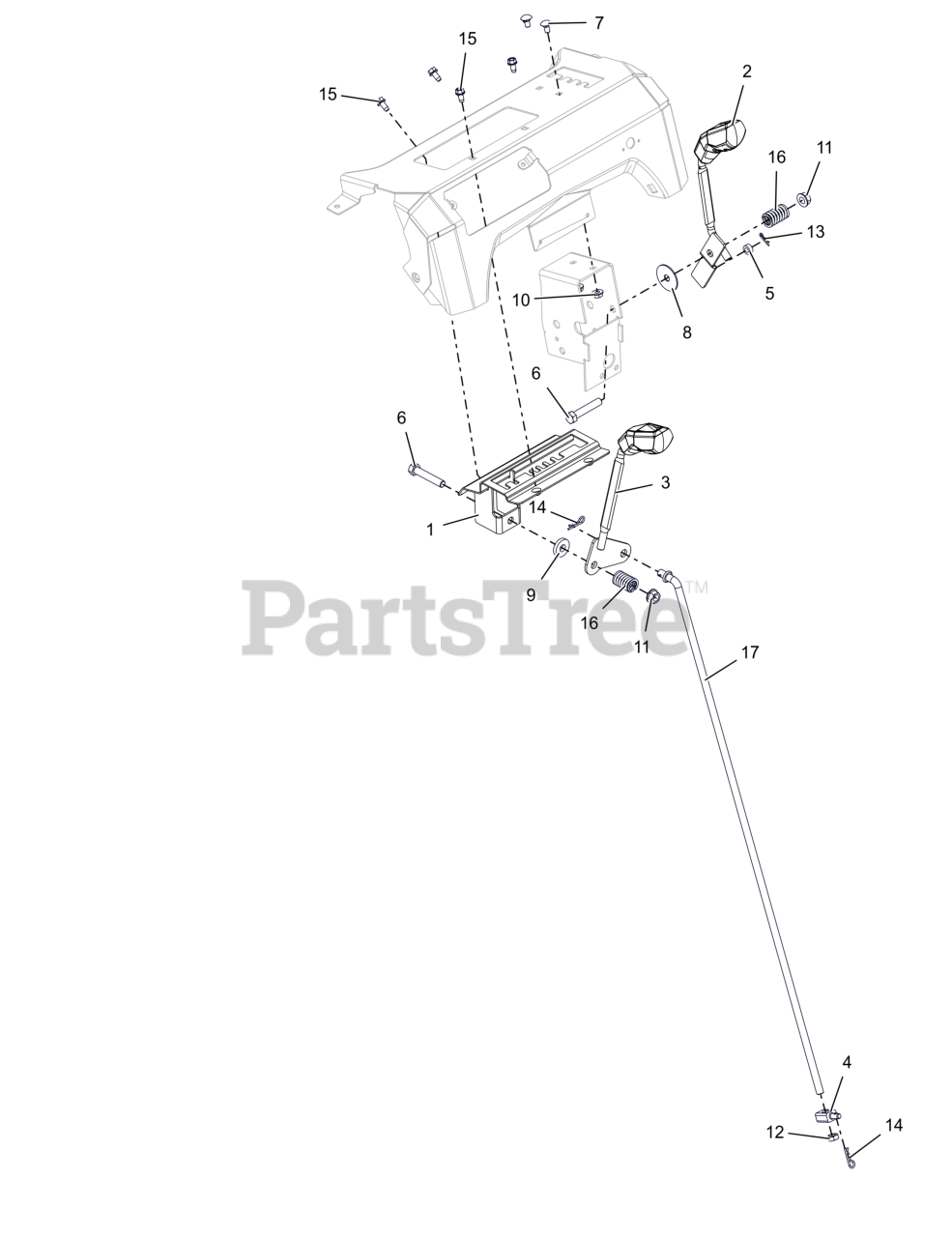

Controls - Small Dash Parts Diagram

  • Title

1

Ariens 04317751

WELDMENT, DETENT PLATE-COMPACT

$29.99

$

Usually ships in 4-12 days

0

2

Ariens 30191100

ASM, LEVER W/KNOB-SM DASH DEFL

$17.99

$

Usually ships in 0 days

0

2

Ariens 09382800

KNOB, CONTROL

Note: (Knob Only) Component Service Part

$12.99

$

In Stock, only 2 left!

0

3

Ariens 30191200

ASM, LEVER W/KNOB-SM DASH SPEED

$16.99

$

Usually ships in 0 days

0

3

Ariens 09382800

KNOB, CONTROL

Note: (Knob Only) Component Service Part

$12.99

$

In Stock, only 2 left!

0

4

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$8.49

$

In Stock, Qty 7

0

5

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 7

0

6

Ariens 05901718

BLT,HEX .38-16X2.00 G5 ZCC

$3.49

$

In Stock, Qty 18

0

7

Ariens 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06401028

WSHR,FLT .380X1.50X.062 ZCC

$3.49

$

In Stock, Qty 20+

0

9

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.99

$

In Stock, Qty 20+

0

10

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

11

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 10

0

12

Ariens 06500910

NUT-JAM .375-16 G2 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

In Stock, only 4 left!

0

14

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, Qty 8

0

17

Ariens 09167600

ROD, SHIFT - SMALL DASH DELUXE

$29.99

$

In Stock, only 2 left!

0
