921072 - Ariens Deluxe 28" SHO Snow Blower, Ariens AX 301cc engine Engine, Frame and Belt Drive Parts Diagram

Deluxe 28" SHO Snow Blower, Ariens AX 301cc engine

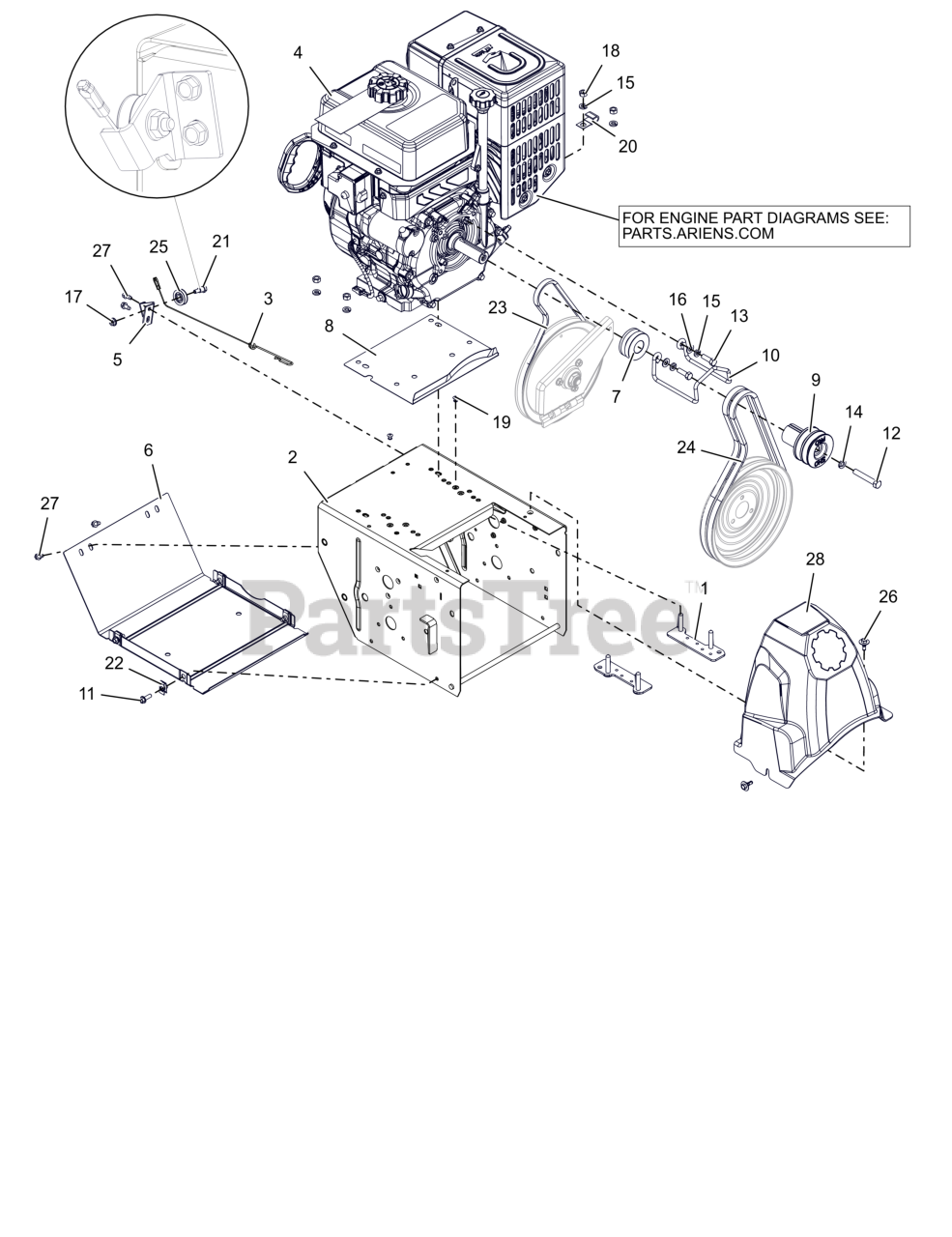

Engine, Frame and Belt Drive Parts Diagram

  • Title

1

Ariens 04999700

STRAP, ENGINE-MEDIUM BLOCK

$12.99

$

Usually ships in 4-12 days

0

2

Ariens 05250559

FRAME, MAIN - 14GA DELUXE (ORANGE)

$183.99

$

Usually ships in 4-12 days

0

3

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$18.99

$

In Stock, only 2 left!

0

4

Ariens 08201510

ENGINE, ARIENS AX301 120V/60W

$

$

Currently unavailable

5

Ariens 00373000

BRKT, CABLE PULLEY

$5.49

$

Usually ships in 4-12 days

0

6

Ariens 00375159

COVER, BOTTOM

$84.99

$

Usually ships in 4-12 days

0

7

Ariens 07348500

SHEAVE, TRACTION (KEYLESS)

$25.99

$

In Stock, only 2 left!

0

8

Ariens 04990859

BAFFLE, WATER - LARGE BLOCK (ORANGE)

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 04957500

SHEAVE,ATTACHMENT-SHO 2 GRV

$29.99

$

Usually ships in 4-12 days

0

10

Ariens 05273200

FINGER, BELT

$18.99

$

In Stock, only 1 left!

0

11

Ariens 05901824

BLT, HWH .25-20X.75 G5 ZCC

$1.99

$

In Stock, Qty 19

0

12

Ariens 05902006

BLT, HEX .38-24X2.25 G5 ZCC

$4.99

$

Usually ships in 4-12 days

0

13

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 19

0

15

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

In Stock, only 3 left!

0

16

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$1.49

$

In Stock, Qty 11

0

18

Ariens 06500938

NUT, HEX .312-18 ZCC

$1.49

$

In Stock, Qty 9

0

19

Ariens 06800140

RVT, POP .1875 ZCC

$1.49

$

In Stock, only 3 left!

0

20

Ariens 06909400

J-CLAMP

$3.99

$

In Stock, only 2 left!

0

21

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, only 4 left!

0

22

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07200101

V-BELT, 3L-WRAPPED

$22.99

$

In Stock, only 2 left!

0

24

Ariens 07200608

V-BELT, HA-RAW EDGE (SET)

$54.99

$

In Stock, only 2 left!

0

25

Ariens 07300012

PULLEY, CABLE

$5.49

$

In Stock, only 2 left!

0

26

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, only 2 left!

0

27

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

28

Ariens 09382100

COVER, BELT

$11.99

$

Usually ships in 4-12 days

0
