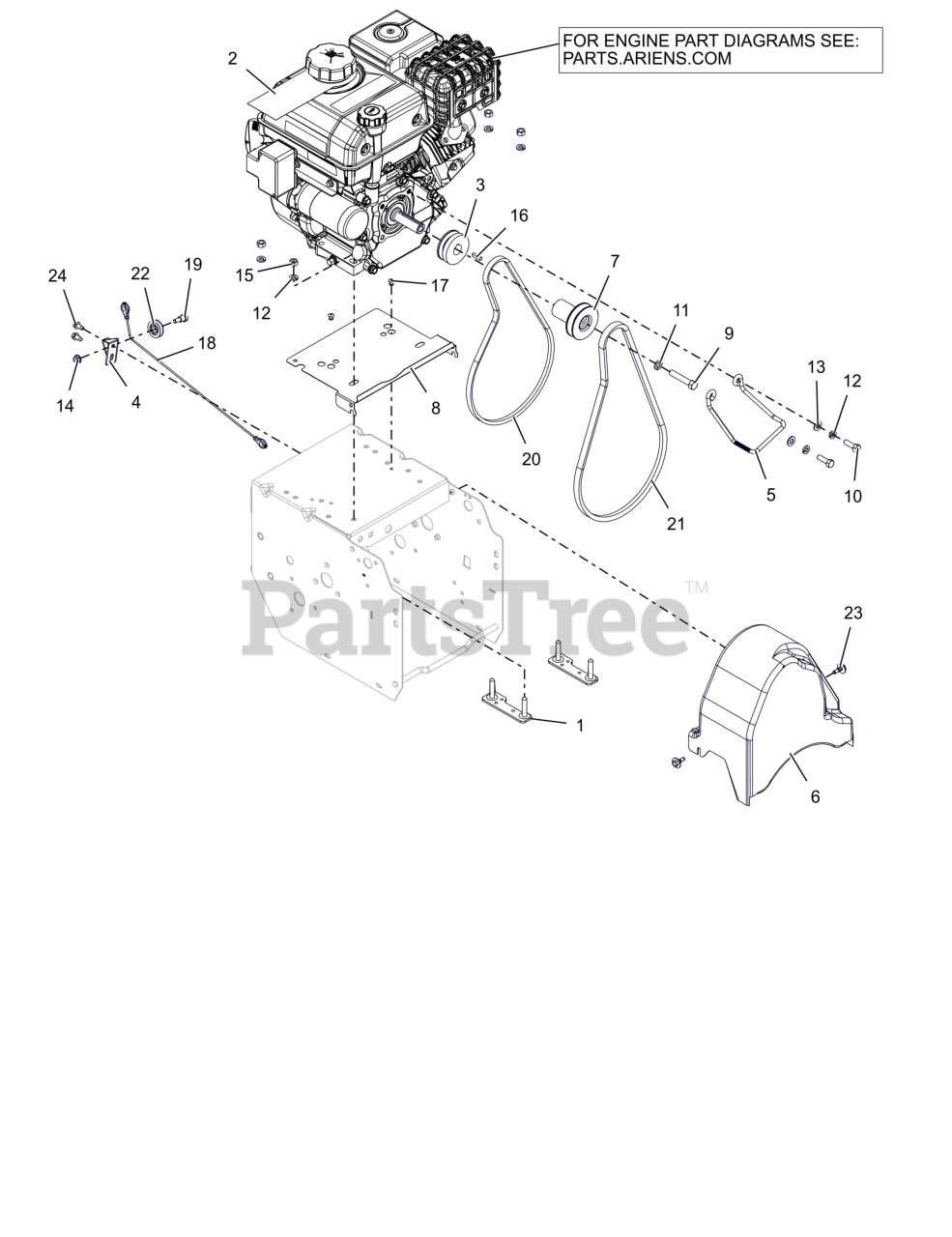

921076 (PB 28) - Ariens 28" Power Brush, Ariens AX 212cc engine (SN: 000101 & Above) Engine and Belt Drive Parts Diagram

28" Power Brush, Ariens AX 212cc engine

Engine and Belt Drive Parts Diagram

  • Title

1

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$21.99

$

Usually ships in 4-12 days

0

2

08201532

ENGINE, ARIENS AX212 ALL SEASONS

$

$

Not available

3

Ariens 00187900

PULLEY, TRACTION

$79.99

$

Usually ships in 4-12 days

0

4

Ariens 00373000

BRKT, CABLE PULLEY

$5.49

$

In Stock, only 3 left!

0

5

Ariens 03731800

BELT FINGER

$18.99

$

Usually ships in 4-12 days

0

6

Ariens 04209900

BELT COVER

$20.99

$

Usually ships in 4-12 days

0

7

Ariens 04502900

SHEAVE, AUGER DRIVE

$23.99

$

Usually ships in 4-12 days

0

8

Ariens 04895159

BAFFLE- COMPACT

$11.99

$

Usually ships in 4-12 days

0

9

Ariens 05902015

BLT, HEX .38-24X2.00 G5 ZCC

$3.49

$

In Stock, only 2 left!

0

10

Ariens 05902108

BLT, HEX 0.3125-24X1 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$1.49

$

In Stock, Qty 7

0

12

Ariens 06300123

WSHR, LK-HVY .312X.097 ZCC

$0.99

$

Usually ships in 4-12 days

0

13

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

15

Ariens 06500938

NUT, HEX .312-18 ZCC

$1.49

$

In Stock, Qty 8

0

16

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, only 2 left!

0

17

Ariens 06800140

RVT, POP .1875 ZCC

$1.49

$

Usually ships in 4-12 days

0

18

Ariens 06900505

CABLE, LOWER TRACTION (DELUXE)

$20.99

$

Usually ships in 4-12 days

0

19

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, only 2 left!

0

20

Ariens 07200111

V-BELT, 3L-WRAPPED

$24.99

$

Usually ships in 4-12 days

0

21

Ariens 07238500

V-BELT, HA-RAW EDGE

$30.99

$

Usually ships in 4-12 days

0

22

Ariens 07300012

PULLEY, CABLE

$5.49

$

Usually ships in 4-12 days

0

23

Ariens 07400108

SCR-TAP .25-20X.5 CAPTIVE

$2.99

$

In Stock, Qty 19

0

24

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
