921076 (PB 28) - Ariens 28" Power Brush, Ariens AX 212cc engine (SN: 000101 & Above) Engine - AX 212 AS - 08201532 Parts Diagram

28" Power Brush, Ariens AX 212cc engine

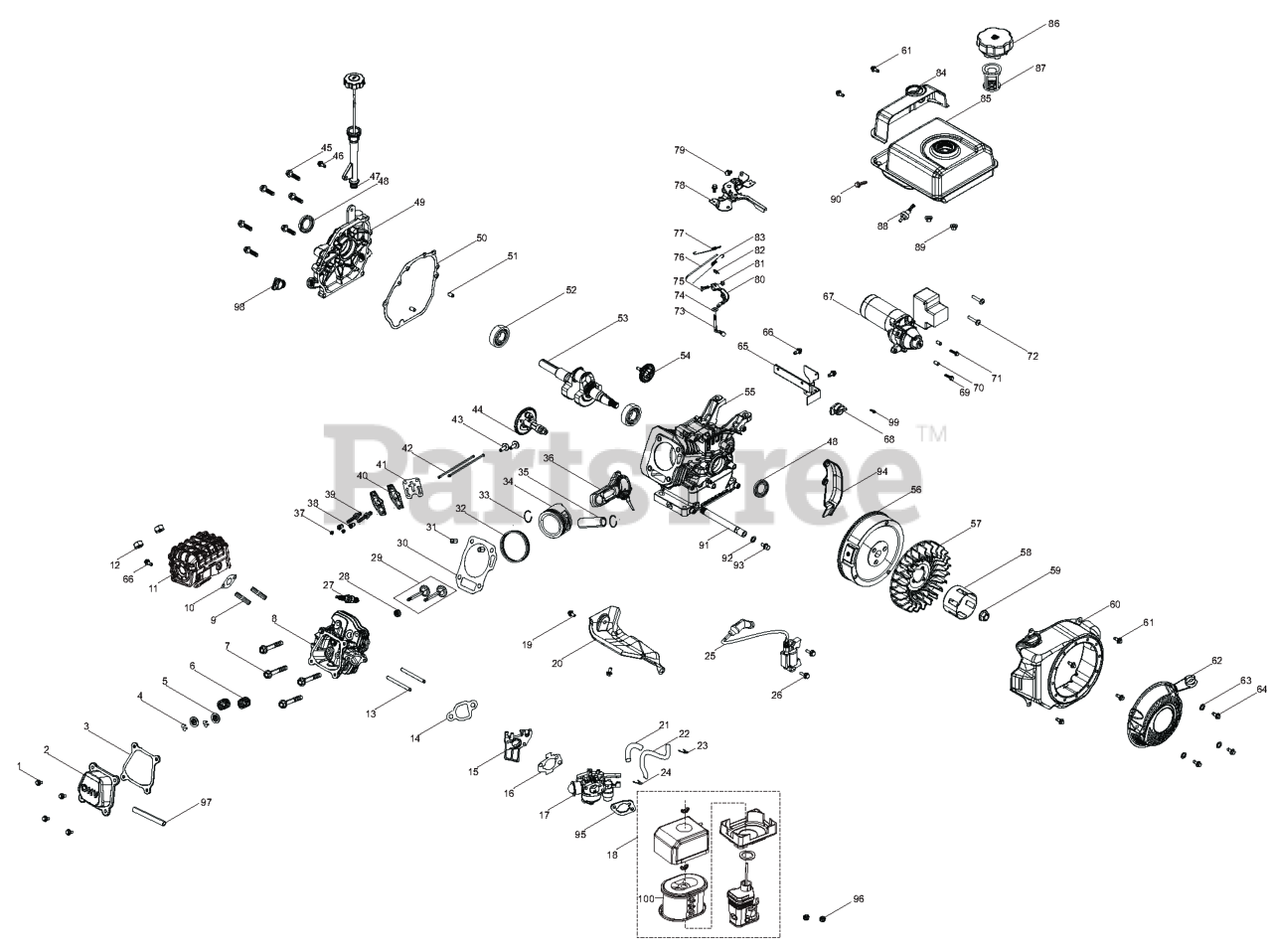

Engine - AX 212 AS - 08201532 Parts Diagram

  • Title

20100418

ENG,SERVICE AX212 120V/60W(AS)

Note: Complete Engine Assembly

$

$

Not available

1

20100386

BLT, HEX-FLG M6X12

$

$

Not available

1

20100386

BLT, HEX-FLG M6X12

$

$

Not available

2

20100281

COVER, VALVE

$

$

Not available

2

20100281

COVER, VALVE

$

$

Not available

3

20100282

GASKET, VALVE COVER

$

$

Not available

3

20100282

GASKET, VALVE COVER

$

$

Not available

4

Ariens 20100023

CLAMP, VALVE LOCK

$2.49

$

Usually ships in 4-12 days

0

4

Ariens 20100023

CLAMP, VALVE LOCK

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 20100027

SEAT, VALVE SPRING

$2.99

$

Usually ships in 4-12 days

0

5

Ariens 20100027

SEAT, VALVE SPRING

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 20100019

SPRING, VALVE

$2.99

$

Usually ships in 4-12 days

0

6

Ariens 20100019

SPRING, VALVE

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 20100011

CYLINDER HEAD BOLT

$3.99

$

Usually ships in 4-12 days

0

7

Ariens 20100011

CYLINDER HEAD BOLT

$3.99

$

Usually ships in 4-12 days

0

8

20100286

CYLD, HEAD SUBASM

$

$

Not available

8

20100286

CYLD, HEAD SUBASM

$

$

Not available

9

20100296

BLT, STUD

$

$

Not available

9

20100296

BLT, STUD

$

$

Not available

10

20100297

GASKET, EXHAUST OUTLET

$

$

Not available

10

20100297

GASKET, EXHAUST OUTLET

$

$

Not available

11

20100387

ASM, MUFFLER

$

$

Not available

11

20100387

ASM, MUFFLER

$

$

Not available

12

Ariens 20100166

TYPE 1 HEXAGON NUT

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 20100166

TYPE 1 HEXAGON NUT

$2.49

$

Usually ships in 4-12 days

0

13

20100388

BLT, STUD (BM=20)

$

$

Not available

13

20100388

BLT, STUD (BM=20)

$

$

Not available

14

20100334

GASKET, CARBURETOR INSULATOR

$

$

Not available

14

20100334

GASKET, CARBURETOR INSULATOR

$

$

Not available

15

20100304

PLATE, CARBURETOR INSULATOR

$

$

Not available

15

20100304

PLATE, CARBURETOR INSULATOR

$

$

Not available

16

Ariens 20100068

CARBURETOR SEAL GASKET

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 20100068

CARBURETOR SEAL GASKET

$2.99

$

Usually ships in 4-12 days

0

17

20100389

ASM, CARBURETOR

$

$

Not available

17

20100389

ASM, CARBURETOR

$

$

Not available

18

20100420

ASM, AIR CLEANER

$

$

Not available

18

20100420

ASM, AIR CLEANER

$

$

Not available

19

Ariens 20100146

BOLT, M6X10 HEX FLANGE

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 20100146

BOLT, M6X10 HEX FLANGE

$2.49

$

Usually ships in 4-12 days

0

20

20100323

SHROUD, CLYD BODY

$

$

Not available

20

20100323

SHROUD, CLYD BODY

$

$

Not available

21

20100306

JACKET, RUBBER

$

$

Not available

21

20100306

JACKET, RUBBER

$

$

Not available

22

20100336

TUBE, FUEL

$

$

Not available

22

20100336

TUBE, FUEL

$

$

Not available

23

Ariens 20100190

PIPE CLAMP

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 20100190

PIPE CLAMP

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 20100189

PIPE CLAMP

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 20100189

PIPE CLAMP

$2.49

$

Usually ships in 4-12 days

0

25

20100390

COIL, IGNITION

$

$

Not available

25

20100390

COIL, IGNITION

$

$

Not available

26

20100391

BLT, HEX-FLG M6X25X1

$

$

Not available

26

20100391

BLT, HEX-FLG M6X25X1

$

$

Not available

27

Ariens 20001113

SPARK PLUG - PLATINUM

$11.99

$

In Stock, Qty 20+

0

27

Ariens 20001113

SPARK PLUG - PLATINUM

$11.99

$

In Stock, Qty 20+

0

28

Ariens 20100018

GUIDE, SEAL

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 20100018

GUIDE, SEAL

$3.99

$

Usually ships in 4-12 days

0

29

20100289

VALVE, SET

$

$

Not available

29

20100289

VALVE, SET

$

$

Not available

30

20100287

GASKET, CYLD HD

$

$

Not available

30

20100287

GASKET, CYLD HD

$

$

Not available

31

20100288

PIN, POSITION

$

$

Not available

31

20100288

PIN, POSITION

$

$

Not available

32

20100291

ASM, PISTON RING

$

$

Not available

32

ASM, PISTON RING

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

33

20100330

CLIP, PISTON PIN

$

$

Not available

33

CLIP, PISTON PIN

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

34

20100331

PISTON

$

$

Not available

34

PISTON

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

35

20100332

PIN, PISTION

$

$

Not available

35

20100332

PIN, PISTION

$

$

Not available

36

20100333

ROD, CONNECTING

$

$

Not available

36

ROD, CONNECTING

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

37

Ariens 20100060

NUT, VALVE LOCK

$2.49

$

Usually ships in 4-12 days

0

37

Ariens 20100060

NUT, VALVE LOCK

$2.49

$

Usually ships in 4-12 days

0

38

Ariens 20100062

NUT, VALVE ADJUSTING

$2.99

$

Usually ships in 4-12 days

0

38

Ariens 20100062

NUT, VALVE ADJUSTING

$2.99

$

Usually ships in 4-12 days

0

39

Ariens 20100061

ROCKSHAFT BOLT

$2.99

$

Usually ships in 4-12 days

0

39

Ariens 20100061

ROCKSHAFT BOLT

$2.99

$

Usually ships in 4-12 days

0

40

20100284

VALVE, ROCKER

$

$

Not available

40

20100284

VALVE, ROCKER

$

$

Not available

41

20100285

PLATE, SUBASM LIFTER STOPPER

$

$

Not available

41

20100285

PLATE, SUBASM LIFTER STOPPER

$

$

Not available

42

20100290

VALVE, LIFTER

$

$

Not available

42

20100290

VALVE, LIFTER

$

$

Not available

43

Ariens 20100053

TAPPET, VALVE

$5.49

$

Usually ships in 4-12 days

0

43

Ariens 20100053

TAPPET, VALVE

$5.49

$

Usually ships in 4-12 days

0

44

20100393

ASM, CAMSHAFT

$

$

Not available

44

20100393

ASM, CAMSHAFT

$

$

Not available

45

20100394

BLT, HEX-FLG M8X32X1.25

$

$

Not available

45

20100394

BLT, HEX-FLG M8X32X1.25

$

$

Not available

46

20100395

HEX, SOCKET-FLG M6X20

$

$

Not available

46

20100395

HEX, SOCKET-FLG M6X20

$

$

Not available

47

20100319

SUBASM, OIL DIPSTICK

$

$

Not available

47

20100319

SUBASM, OIL DIPSTICK

$

$

Not available

48

Ariens 20100186

SEAL, OIL

$9.49

$

Usually ships in 4-12 days

0

48

Ariens 20100186

SEAL, OIL

$9.49

$

Usually ships in 4-12 days

0

49

20100321

COVER, CRANKCASE

$

$

Not available

49

20100321

COVER, CRANKCASE

$

$

Not available

50

20100318

GASKET, CRANKCASE

$

$

Not available

50

20100318

GASKET, CRANKCASE

$

$

Not available

51

Ariens 20100179

POSITION PIN - TYPE A

$2.49

$

Usually ships in 4-12 days

0

51

Ariens 20100179

POSITION PIN - TYPE A

$2.49

$

Usually ships in 4-12 days

0

52

20100315

BRG-BALL, DEEP GROOVE

$

$

Not available

52

20100315

BRG-BALL, DEEP GROOVE

$

$

Not available

53

20100376

ASM, CRANKSHAFT

$

$

Not available

53

ASM, CRANKSHAFT

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

54

20100339

ASM, GEAR GOVERNOR

$

$

Not available

54

20100339

ASM, GEAR GOVERNOR

$

$

Not available

55

20100396

SUBASM, CRANKCASE

$

$

Not available

55

SUBASM, CRANKCASE

Note: Not Available Separately, Order Complete Engine Assembly

$

$

Not available

56

20100397

SUBASM, FLYWHEEL

$

$

Not available

56

20100397

SUBASM, FLYWHEEL

$

$

Not available

57

20100328

IMPELLER

$

$

Not available

57

20100328

IMPELLER

$

$

Not available

58

20100398

PULLEY, STARTER

$

$

Not available

58

20100398

PULLEY, STARTER

$

$

Not available

59

Ariens 20100047

NUT, FLYWHEEL

$3.49

$

Usually ships in 4-12 days

0

59

Ariens 20100047

NUT, FLYWHEEL

$3.49

$

Usually ships in 4-12 days

0

60

20100399

SHROUD

$

$

Not available

60

20100399

SHROUD

$

$

Not available

61

20100386

BLT, HEX-FLG M6X12

$

$

Not available

61

20100386

BLT, HEX-FLG M6X12

$

$

Not available

62

20100401

ASM, STARTER RECOIL

$

$

Not available

62

20100401

ASM, STARTER RECOIL

$

$

Not available

63

21596900

WSHR-FL, GR A

$

$

Not available

63

21596900

WSHR-FL, GR A

$

$

Not available

64

Ariens 20100144

BOLT, M6X8 HEX FLANGE

$2.49

$

Usually ships in 4-12 days

0

64

Ariens 20100144

BOLT, M6X8 HEX FLANGE

$2.49

$

Usually ships in 4-12 days

0

65

20100340

SUBASM, CONTROL BOX SUPPORT

$

$

Not available

65

20100340

SUBASM, CONTROL BOX SUPPORT

$

$

Not available

66

20100403

BLT, HEX-FLG M6X14X1

$

$

Not available

66

20100403

BLT, HEX-FLG M6X14X1

$

$

Not available

67

Ariens 20100131

STARTING MOTOR ASSEMBLY

$186.99

$

Usually ships in 4-12 days

0

67

Ariens 20100131

STARTING MOTOR ASSEMBLY

$186.99

$

Usually ships in 4-12 days

0

68

20100404

BRKT, ENGINE STOP MTG SWITCH

$

$

Not available

68

20100404

BRKT, ENGINE STOP MTG SWITCH

$

$

Not available

69

20100391

BLT, HEX-FLG M6X25X1

$

$

Not available

69

20100391

BLT, HEX-FLG M6X25X1

$

$

Not available

70

Ariens 20100178

POSITION PIN - TYPE A

$2.49

$

Usually ships in 4-12 days

0

70

Ariens 20100178

POSITION PIN - TYPE A

$2.49

$

Usually ships in 4-12 days

0

71

20100405

BLT, HEX-FLG M6X35X1

$

$

Not available

71

20100405

BLT, HEX-FLG M6X35X1

$

$

Not available

72

Ariens 20100160

SCREW, PAN HEAD M4X55X0.7

$2.49

$

Usually ships in 4-12 days

0

72

Ariens 20100160

SCREW, PAN HEAD M4X55X0.7

$2.49

$

Usually ships in 4-12 days

0

73

20100310

ARM, GOVERNOR

$

$

Not available

73

20100310

ARM, GOVERNOR

$

$

Not available

74

Ariens 20100173

FLAT WASHER - GRADE A

$2.49

$

Usually ships in 4-12 days

0

74

Ariens 20100173

FLAT WASHER - GRADE A

$2.49

$

Usually ships in 4-12 days

0

75

Ariens 20100084

BOLT, GOVERNOR SUPPORT

$2.49

$

Usually ships in 4-12 days

0

75

Ariens 20100084

BOLT, GOVERNOR SUPPORT

$2.49

$

Usually ships in 4-12 days

0

76

Ariens 20100077

ROD, GOVERNEOR

$2.49

$

Usually ships in 4-12 days

0

76

Ariens 20100077

ROD, GOVERNEOR

$2.49

$

Usually ships in 4-12 days

0

77

20100406

SPRG, GOVERNOR

$

$

Not available

77

20100406

SPRG, GOVERNOR

$

$

Not available

78

20100407

ASM, CONTORL THROTTLE

$

$

Not available

78

20100407

ASM, CONTORL THROTTLE

$

$

Not available

79

Ariens 20100146

BOLT, M6X10 HEX FLANGE

$2.49

$

Usually ships in 4-12 days

0

79

Ariens 20100146

BOLT, M6X10 HEX FLANGE

$2.49

$

Usually ships in 4-12 days

0

80

Ariens 20100081

ASM, GOVERNOR BRACKET

$5.49

$

Usually ships in 4-12 days

0

80

Ariens 20100081

ASM, GOVERNOR BRACKET

$5.49

$

Usually ships in 4-12 days

0

81

Ariens 20100167

HEXAGON NUT WITH FLANGE

$2.49

$

Usually ships in 4-12 days

0

81

Ariens 20100167

HEXAGON NUT WITH FLANGE

$2.49

$

Usually ships in 4-12 days

0

82

20100408

PIN, COTTER

$

$

Not available

82

20100408

PIN, COTTER

$

$

Not available

83

Ariens 20100073

SPRING, THROTTLE VLV RETURNING

$1.49

$

Usually ships in 4-12 days

0

83

Ariens 20100073

SPRING, THROTTLE VLV RETURNING

$1.49

$

Usually ships in 4-12 days

0

84

Ariens 20100101

FUEL TANK PLATE

$9.49

$

Usually ships in 4-12 days

0

84

Ariens 20100101

FUEL TANK PLATE

$9.49

$

Usually ships in 4-12 days

0

85

20100409

TANK, FUEL

$

$

Not available

85

20100409

TANK, FUEL

$

$

Not available

86

20100410

CAP, FUEL

$

$

Not available

86

20100410

CAP, FUEL

$

$

Not available

87

20100411

STRAINER, FUEL

$

$

Not available

88

Ariens 20100103

OUTLET WITH FILTER

$3.99

$

Usually ships in 4-12 days

0

87

20100411

STRAINER, FUEL

$

$

Not available

89

Ariens 20100167

HEXAGON NUT WITH FLANGE

$2.49

$

Usually ships in 4-12 days

0

88

Ariens 20100103

OUTLET WITH FILTER

$3.99

$

Usually ships in 4-12 days

0

90

20100413

BLT, HEX-FLG M6X32X1

$

$

Not available

89

Ariens 20100167

HEXAGON NUT WITH FLANGE

$2.49

$

Usually ships in 4-12 days

0

91

Ariens 20100006

TUBE, OIL DRAIN

$9.49

$

Usually ships in 4-12 days

0

90

20100413

BLT, HEX-FLG M6X32X1

$

$

Not available

92

Ariens 20100174

FLAT WASHER - GRADE A

$2.49

$

Usually ships in 4-12 days

0

91

Ariens 20100006

TUBE, OIL DRAIN

$9.49

$

Usually ships in 4-12 days

0

93

Ariens 20100003

BOLT, DRAIN PLUG

$2.99

$

Usually ships in 4-12 days

0

92

Ariens 20100174

FLAT WASHER - GRADE A

$2.49

$

Usually ships in 4-12 days

0

94

20100414

SHEILD, LOWER

$

$

Not available

93

Ariens 20100003

BOLT, DRAIN PLUG

$2.99

$

Usually ships in 4-12 days

0

95

20100337

GASKET, AIR CLEANER SEAL

$

$

Not available

94

20100414

SHEILD, LOWER

$

$

Not available

96

Ariens 20100167

HEXAGON NUT WITH FLANGE

$2.49

$

Usually ships in 4-12 days

0

95

20100337

GASKET, AIR CLEANER SEAL

$

$

Not available

97

20100415

TUBE, BREATHER

$

$

Not available

96

Ariens 20100167

HEXAGON NUT WITH FLANGE

$2.49

$

Usually ships in 4-12 days

0

98

Ariens 20100066

ASM, ENGINE OIL PLUG

$3.99

$

Usually ships in 4-12 days

0

97

20100415

TUBE, BREATHER

$

$

Not available

99

20100403

BLT, HEX-FLG M6X14X1

$

$

Not available

98

Ariens 20100066

ASM, ENGINE OIL PLUG

$3.99

$

Usually ships in 4-12 days

0

100

20100419

AIR CLEANER ELEMENT

$

$

Not available

99

20100403

BLT, HEX-FLG M6X14X1

$

$

Not available

NS

20100416

KIT, HIGH ALT 3K-6K FT 212CCAS

$

$

Not available

100

20100419

AIR CLEANER ELEMENT

$

$

Not available

NS

20100417

KIT, HIGH ALT 6K-8K FT 212CCAS

$

$

Not available

NS

20100416

KIT, HIGH ALT 3K-6K FT 212CCAS

$

$

Not available

NS

20100417

KIT, HIGH ALT 6K-8K FT 212CCAS

$

$

Not available
