921076 (PB 28) - Ariens 28" Power Brush, Ariens AX 212cc engine (SN: 000101 & Above) Handlebars and Controls Parts Diagram

28" Power Brush, Ariens AX 212cc engine

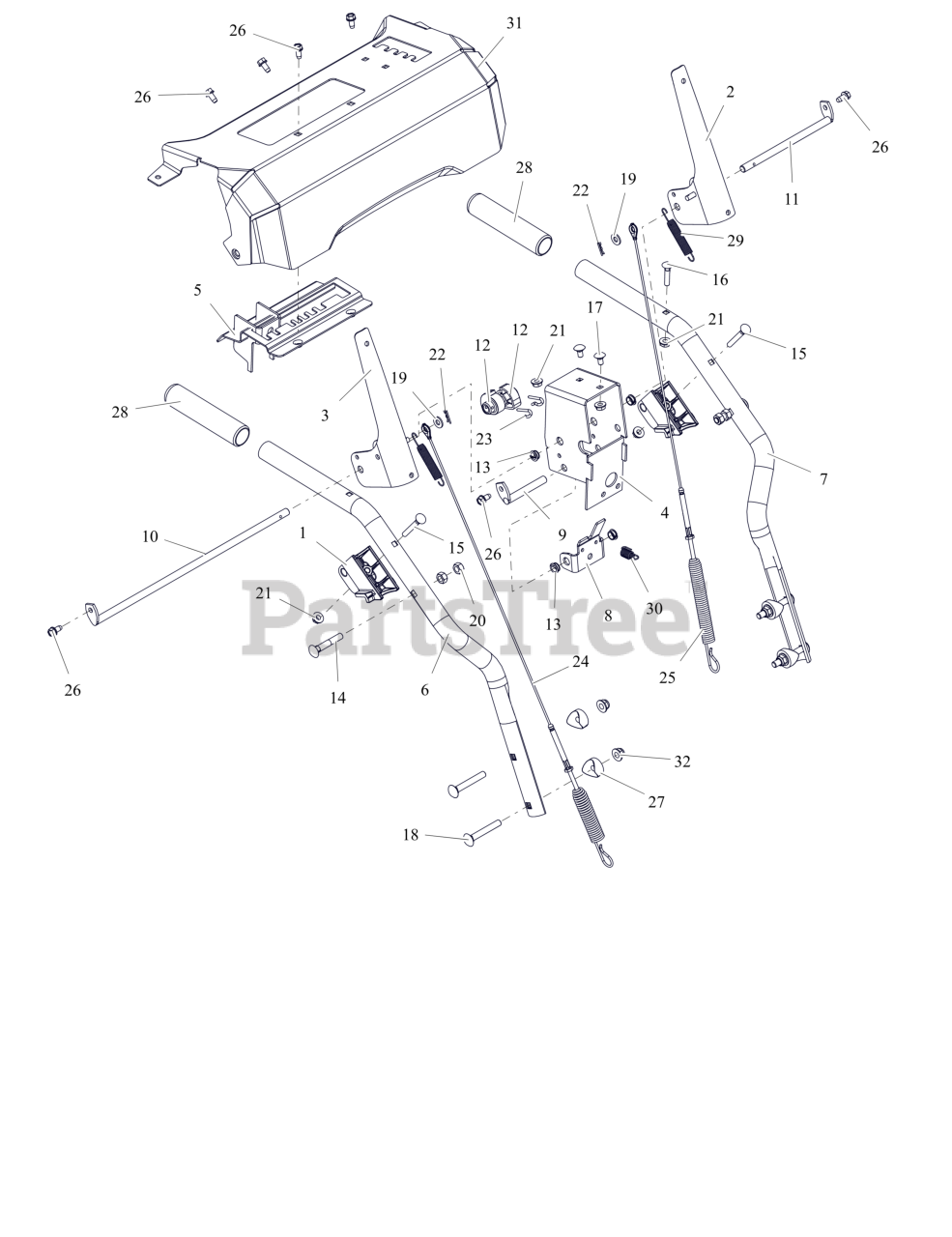

Handlebars and Controls Parts Diagram

  • Title

1

Ariens 05193600

BLOCK, CLUTCH PADDLE

$6.49

$

Usually ships in 4-12 days

0

2

Ariens 04310451

LEVER, CLUTCH-LH

$29.99

$

In Stock, only 1 left!

0

3

Ariens 04310551

LEVER, CLUTCH-RH

$23.99

$

In Stock, only 1 left!

0

4

Ariens 04316651

WELDMENT, BRACKET INTERLOCK

$26.99

$

Usually ships in 4-12 days

0

5

Ariens 04317751

WELDMENT, DETENT PLATE-COMPACT

$29.99

$

Usually ships in 4-12 days

0

6

Ariens 04318351

HANDLEBAR, UPPER - RH

$38.99

$

In Stock, only 2 left!

0

7

Ariens 04318451

HANDLEBAR, UPPER - LH

$38.99

$

In Stock, only 2 left!

0

8

Ariens 04320400

BRACKET, INTERLOCK ARM

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 04320500

ROD, PIVOT - INTERLOCK

$20.99

$

In Stock, only 1 left!

0

10

Ariens 04321500

ROD, PADDLE MOUNT - LONG

$20.99

$

Usually ships in 4-12 days

0

11

Ariens 04321600

ROD, PADDLE MOUNT - SHORT

$17.99

$

Usually ships in 4-12 days

0

12

Ariens 04322100

CAM, INTERLOCK

$4.99

$

In Stock, only 1 left!

0

13

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, only 1 left!

0

14

Ariens 06200207

BLT-RDHDXLSQNK .31-18X2.0 G5YZ

$4.99

$

Usually ships in 4-12 days

0

15

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

16

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.99

$

In Stock, Qty 9

0

17

Ariens 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06200503

BLT-RHSN.31-18X2.25 G5 TBZ 120

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 9

0

20

Ariens 06500826

NUT,LK-CTR .31-18 GA ZCC

$1.99

$

In Stock, Qty 11

0

21

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 8

0

22

Ariens 06700221

PIN, HAIR #178 .06X.77 ZCC

$0.99

$

Usually ships in 4-12 days

0

23

Ariens 06714500

PIN, SPRING CLIP

$2.99

$

Usually ships in 4-12 days

0

24

Ariens 06900439

CABLE, AUGER (DELUXE & PRO)

$31.99

$

Usually ships in 4-12 days

0

25

Ariens 06900502

CABLE, UPPER TRACTION

$35.99

$

In Stock, only 2 left!

0

26

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

27

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 7

0

28

Ariens 07500438

GRIP, HANDLEBAR

$9.99

$

Usually ships in 4-12 days

0

29

Ariens 08300527

SPRING, EXTENSION

$3.49

$

In Stock, only 1 left!

0

30

Ariens 08337000

SPRING-EXT .047X.438X1.45

$6.49

$

Usually ships in 4-12 days

0

31

Ariens 52009600

PANEL, DASH - SMALL PB W/DECALS

$

$

Currently unavailable

32

Ariens 06501012

NUT-NYL-FLG.31-18 GF TBZ 120WR

$1.99

$

Usually ships in 4-12 days

0
