921076 (PB 28) - Ariens 28" Power Brush, Ariens AX 212cc engine (SN: 000101 & Above) Wheels and Axles Parts Diagram

28" Power Brush, Ariens AX 212cc engine

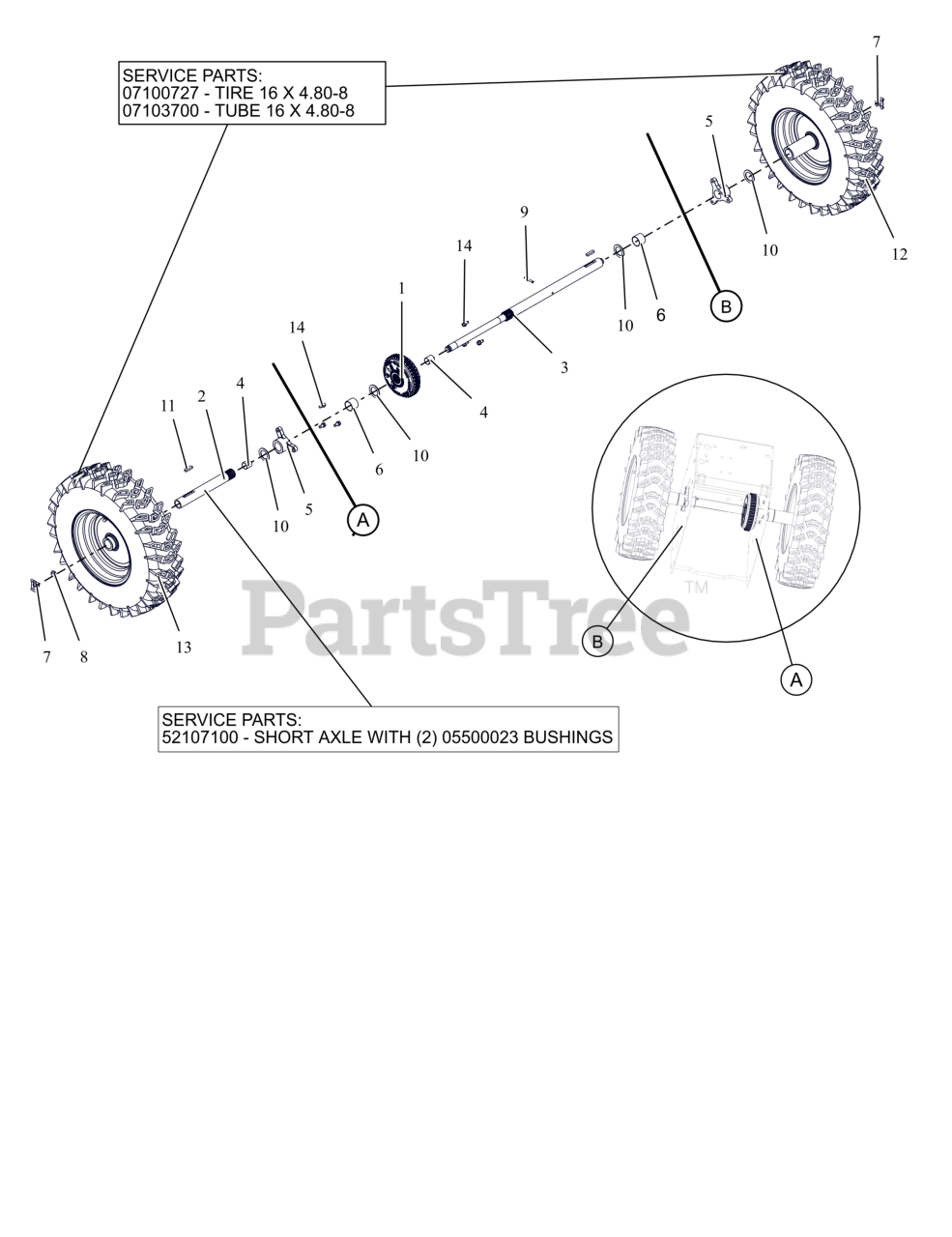

Wheels and Axles Parts Diagram

  • Title

1

Ariens 05013000

DIFFERENTIAL, AUTOMATIC

$201.99

$

Usually ships in 4-12 days

0

2

Ariens 52107100

KIT, SHORT AXLE W/BUSHINGS

$47.99

$

In Stock, only 3 left!

0

3

Ariens 04753500

AXLE, LONG - DIFFERENTIAL

$74.99

$

In Stock, only 4 left!

0

4

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, only 3 left!

0

5

Ariens 05500829

BUSHING, AXLE

$10.99

$

Usually ships in 4-12 days

0

6

Ariens 05501219

BSHG-SLV, 1.012X1.125X.875

$3.99

$

In Stock, Qty 11

0

7

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

Usually ships in 4-12 days

0

8

Ariens 05708300

RG-RTNG-EXT .625X.042

$0.99

$

In Stock, Qty 6

0

9

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, only 2 left!

0

10

Ariens 06401132

WSHR, FLT 1.010X1.505X.062 ZCC

$1.99

$

In Stock, Qty 20+

0

11

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 20+

0

12

Ariens 07101414

TIRE/WHEEL LH 16X4.8-8 DIFF T2

$116.99

$

Usually ships in 4-12 days

0

13

Ariens 07101415

TIRE/WHEEL RH 16X4.8-8 DIFF T2

$128.99

$

Usually ships in 4-12 days

0

14

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0
