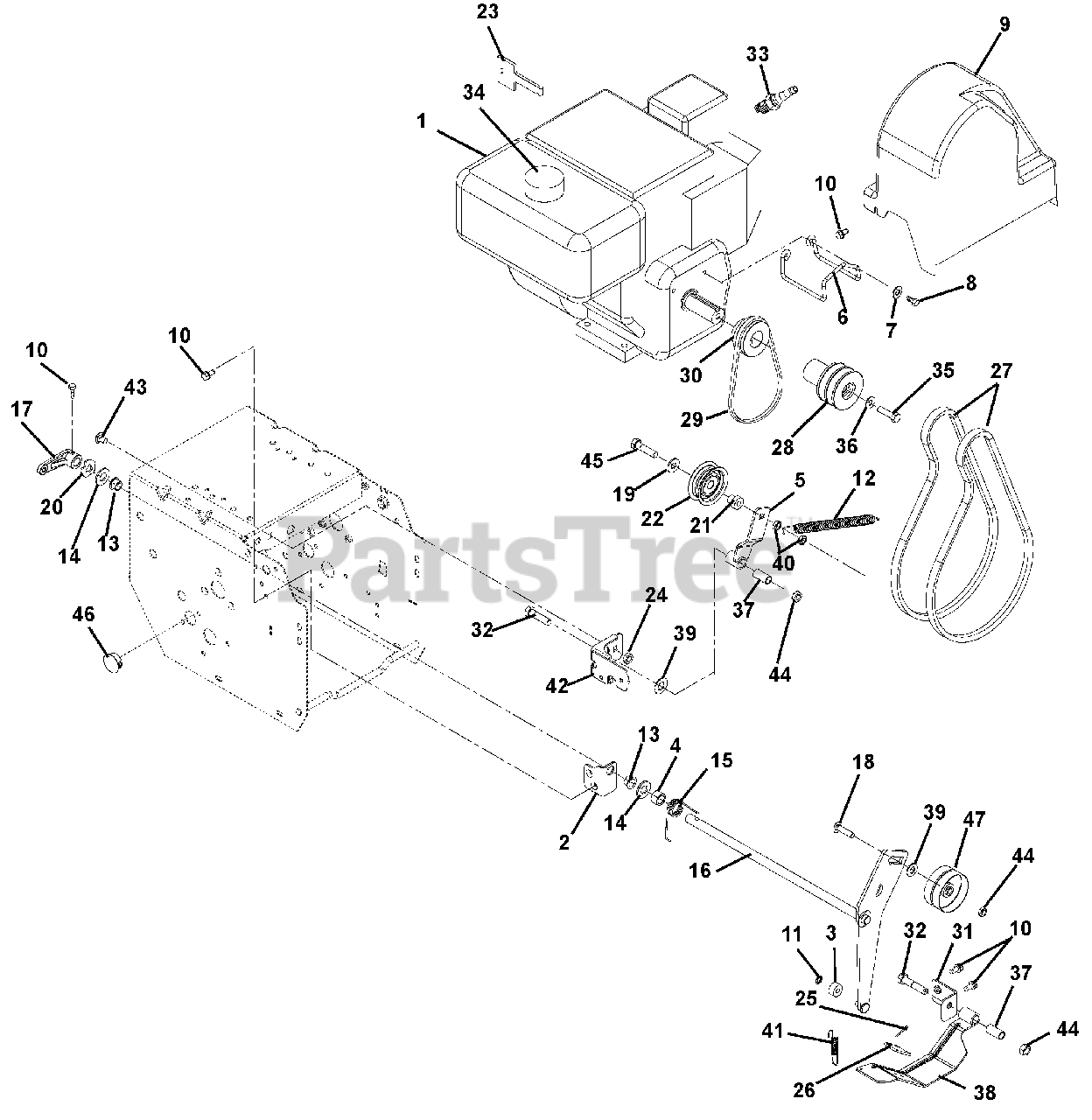

921300 (ST 824 E) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000501 & Above) > Parts Diagrams (9) > Engine And Belt Drive

  • Title
08200420

1

ENGINE, 9.0HP TEC LH318SA 120V

Part# 08200420

Note: (004, 005, 007, 008)

OEM Warranty Repair Part for Ariens

Not available

08200421

1

ENGINE,11.0HP TEC LH358SA 120V

Part# 08200421

Note: (006, 009)

OEM Warranty Repair Part for Ariens

Not available

08200422

1

ENGINE, TEC OH318SA 8.0HP 220V

Part# 08200422

Note: (302)

OEM Warranty Repair Part for Ariens

Not available

08200233

1

ENGINE, 8HP TEC OHV 220V

Part# 08200233

Note: (300)

OEM Warranty Repair Part for Ariens

Not available

08200234

1

ENGINE, 10HP TECH OHV 220V 18W

Part# 08200234

Note: (301, 303)

OEM Warranty Repair Part for Ariens

Not available

00495051

2

BRACKET, MOUNT - IDLER ARM

Part# 00495051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

05500820

3

BSHG,SLV .270 X .750 X .250

Part# 05500820

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05500107

4

BSHG-SLV .510X.751X.475

Part# 05500107

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00493600

5

WELDMENT, TRACTION IDLER ARM

Part# 00493600

OEM Warranty Repair Part for Ariens

Not available

02968300

6

FINGER, BELT

Part# 02968300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $11.12

06307400

7

WSHR-LK .312X.097 HVY YWZC

Part# 06307400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05947300

8

BLT-HEX .31-24X.75 YWZC GR5

Part# 05947300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00659600

9

PLZ SEE SERVICE LETTER #L-2166

Part# 00659600

OEM Warranty Repair Part for Ariens

Not available

07400034

10

SCR-TAP .25-20X.50 HWH TR YWZ

Part# 07400034

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

05717600

11

RG-RTNG-EXT .250X.010

Part# 05717600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.31

08316400

12

SG-TENS .062X.56X8.0 WLD 11

Part# 08316400 (Superseded to 08300538)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05500026

13

BUSHING, POLYLINER-.50 SPLIT

Part# 05500026

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.21

06425300

14

WSHR-FL-STL.531X1.00X.063 YWZC

Part# 06425300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

08300326

15

SG-TORS .075 X .955

Part# 08300326

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

02956700

16

WELDMENT, ATTACHMENT IDLER ARM

Part# 02956700

OEM Warranty Repair Part for Ariens

Not available

01987100

17

ARM, CLUTCH - ATTACHMENT

Part# 01987100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

06200111

18

@BLT-RHDSSQNK .38-16X1.75 G5YZ

Part# 06200111

OEM Warranty Repair Part for Ariens

Not available

06435700

19

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06400005

20

WSHR-WAVE .50X.75X.015 .13FRHT

Part# 06400005

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01213100

21

SPCR, BRG .315X.50X.688X.281

Part# 01213100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.34

02457400

22

IDLER

Part# 02457400 (Superseded to 52007000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.43

07532000

23

KEY, PUSH/PULL - TECUMSEH

Part# 07532000 (Superseded to 07500108)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06543100

24

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06800028

25

RVT-POP .187 YZ

Part# 06800028

Note: (Included with item 38)

OEM Warranty Repair Part for Ariens

Not available

00180500

26

PAD, BRAKE

Part# 00180500

Note: (Included with item 38)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

07200431

27

V-BELT, HA-RAW EDGE (SET)

Part# 07200431

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $50.25

00657400

28

SHEAVE, ATTACHMENT 2-GRV

Part# 00657400

OEM Warranty Repair Part for Ariens

Not available

07200111

29

V-BELT, 3L-WRAPPED

Part# 07200111

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

00659400

30

SHEAVE, DRIVE

Part# 00659400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00657551

31

BRACKET, BRAKE MOUNT

Part# 00657551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

05958500

32

@BLT-HEX .38-16X1.75 GR5 YWZC

Part# 05958500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

21533500

33

PLUG, SPARK

Part# 21533500

Note: (300, 301, 302, 303)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.99

21533400

33

PLUG, SPARK

Part# 21533400

Note: (005, 006, 007, 008, 009)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.02

07531800

34

CAP, FUEL - TECUMSEH

Part# 07531800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05901307

35

BLT-HEX .38-24X2.25 YWZC GR5

Part# 05901307

OEM Warranty Repair Part for Ariens

Not available

06308800

36

@WSHR-LK .38X.094 REG YWZC

Part# 06308800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05500106

37

BSHG-SLV .385X.500X1.045

Part# 05500106

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

52000500

38

BRAKE ARM W/PAD

Part# 52000500

Note: (Includes items 25 and 26)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $33.48

06436200

39

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.88

06500011

40

@NUT-LK-CTR-JAM .31-18 YWZC

Part# 06500011

OEM Warranty Repair Part for Ariens

Not available

08300103

41

SPRING-EXT .047 X .438 X 1.85

Part# 08300103

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

00657051

42

WELDMENT, FRAME BRACKET

Part# 00657051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $22.30

06212200

43

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06542000

44

@NUT-LK-TOP-FLG .38-16 YWZC

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05952400

45

@BLT-HEX .31-18X1.50 GR5 YWZC

Part# 05952400

OEM Warranty Repair Part for Ariens

Not available

07500023

46

PLUG, HOLE - .875" NYLON

Part# 07500023

Note: (004, 005, 006, 300, 301)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

07314600

47

IDLER-FLAT 2.75X.38 PAINTED

Part# 07314600 (Superseded to 07333500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30
