921300 (ST 824 E) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000501 & Above)

24" Snow Blower, 8hp Tecumseh

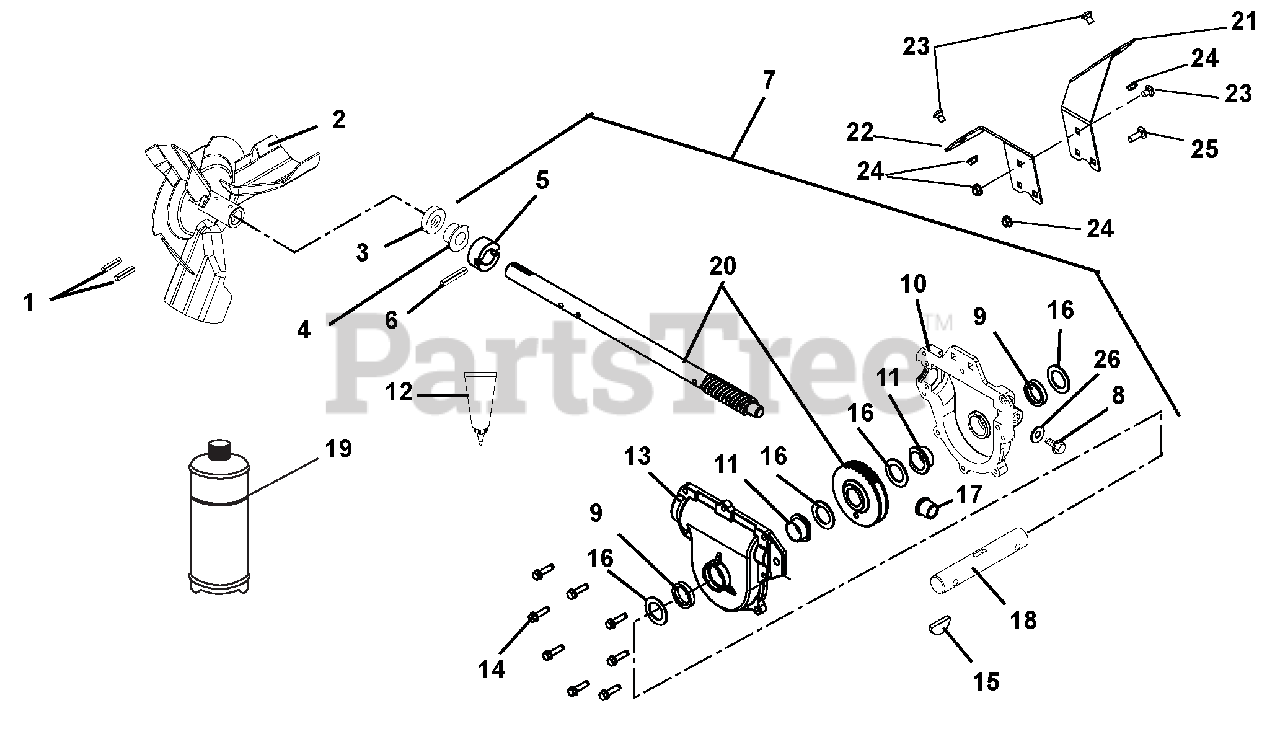

921300 (ST 824 E) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000501 & Above) > Parts Diagrams (9) > Gear Case Aluminum

  • Title
05803700

1

PIN-ROLL .250X1.75

Part# 05803700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00485551

2

IMPELLER, 3 BLADE-14"

Part# 00485551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $89.38

05600001

3

SEAL-OIL .875X1.375X.25 RBR OD

Part# 05600001

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05500008

4

BSHG-FLG .876 X 1.500 X .750

Part# 05500008

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

00255100

5

THRUST COLLAR, .875" ID

Part# 00255100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05806800

6

PIN-GRV .250X1.50 TP E

Part# 05806800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

52101000

7

GEAR CASE ASSEMBLY - COMMON

Part# 52101000

Note: (Contains Items 3-6, 8-20)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $212.36

07417000

8

SCR-TAP .38-16X.75 ROLOK YZ WX

Part# 07417000 (Superseded to 07400110)

OEM Warranty Repair Part for Ariens

Not available

05618800

9

SEAL-OIL 1.000X1.375X.250

Part# 05618800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

00254100

10

GEARCASE, ALUMINUM, LH

Part# 00254100 (Superseded to 52104900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $73.73

05520500

11

BSHG-FLG 1.003X1.5X.625

Part# 05520500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

00031700

12

LOCTITE 518 GASKET--6ML TUBE

Part# 00031700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $16.71

00254000

13

GEARCASE, ALUMINUM, RH

Part# 00254000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.02

07412400

14

@SCR-TAP .25-20X1.00 HWH TR YZ

Part# 07412400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06608800

15

KEY-WDRF .25X.875 HRD #A

Part# 06608800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

06436300

16

WSHR-FL-STL 1.010X1.505X.062YZ

Part# 06436300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05500007

17

BSHG-FLG .629 X 1.000 X .750

Part# 05500007

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

00485400

18

RAKE SHAFT, SHORT-COMMON

Part# 00485400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

00008000

19

ARIENS 16 OZ.BOTTLE OF L2 LUBE

Part# 00008000 (Superseded to 00068800)

Note: (9 OZ. CAPACITY)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

52100900

20

WORM SHAFT & GEAR

Part# 52100900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $100.56

00485051

21

BRACKET, GEAR CASE SUPPORT-LH

Part# 00485051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.83

00485151

22

BRACKET, GEAR CASE SUPPORT-RH

Part# 00485151

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

06212200

23

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06543100

24

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06216100

25

@BLT-RDHDSQNK .31-18X1.00 G5YZ

Part# 06216100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06442500

26

WSHR-FIBER .437X.656X.032

Part# 06442500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40
