921300 (ST 824 E) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000501 & Above) Handlebars And Controls Parts Diagram

24" Snow Blower, 8hp Tecumseh

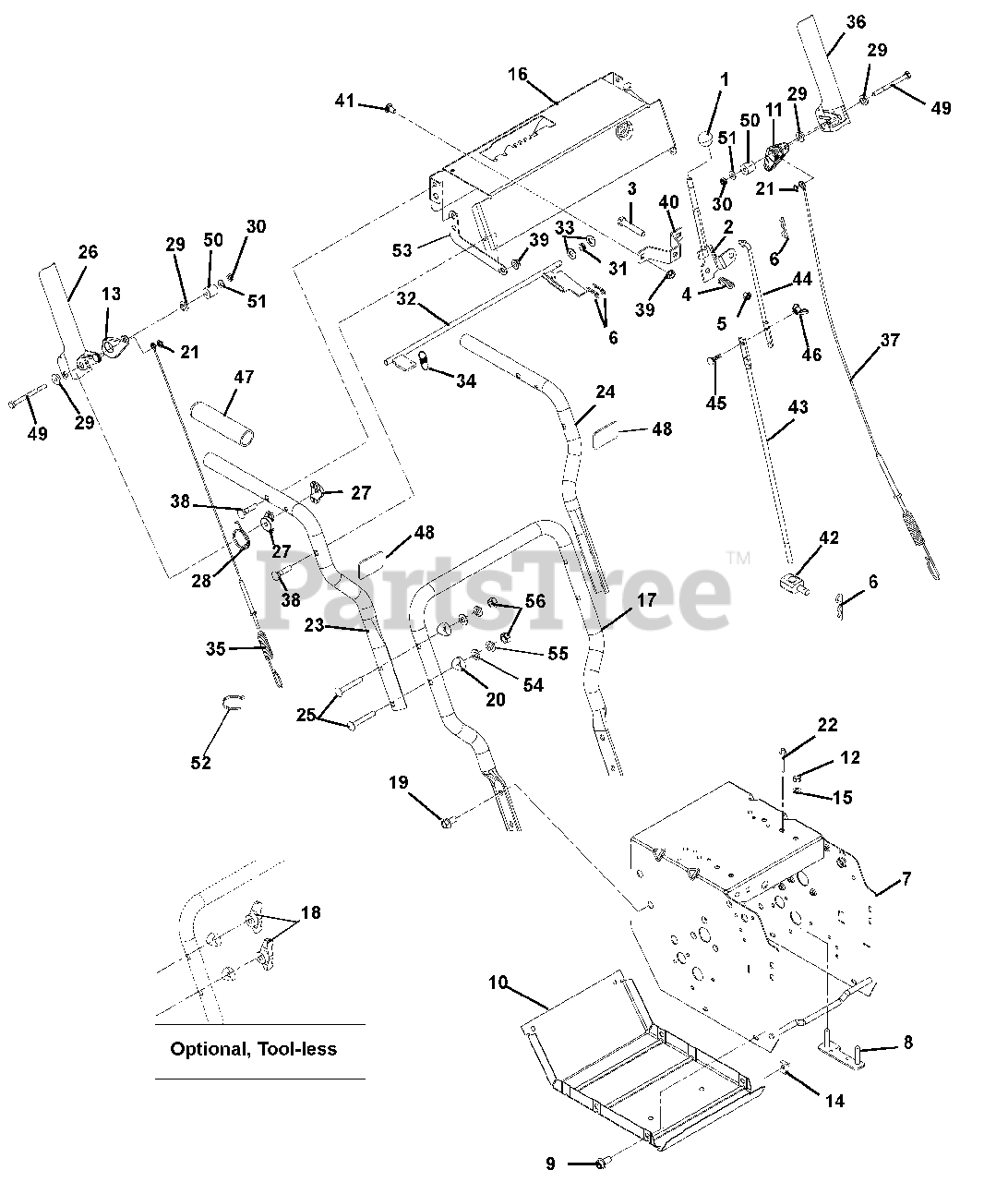

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 07533500

KNOB,BALL -BLACK 1.47" .375-16

$10.99

$

In Stock, only 2 left!

0

2

Ariens 03247900

WMT, SHIFT LEVER

$92.99

$

Usually ships in 4-12 days

0

3

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 11

0

4

Ariens 08335700

SG-COMP .125X.781X1.250

$9.99

$

In Stock, Qty 8

0

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

Usually ships in 4-12 days

0

6

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 00656859

FRAME, MAIN

$203.99

$

Usually ships in 4-12 days

0

8

Ariens 00188400

STRAP, ENGINE BOLT-WELDMENT

$21.99

$

Usually ships in 4-12 days

0

9

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.99

$

In Stock, Qty 6

0

10

Ariens 00492359

COVER, BOTTOM

$49.99

$

Usually ships in 4-12 days

0

11

Ariens 03386500

CAM, INTERLOCK - LH

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

13

Ariens 03386600

CAM, INTERLOCK - RH

$5.49

$

Usually ships in 4-12 days

0

14

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

16

Ariens 52000300

CONTROL PANEL W/DECAL

$83.99

$

Usually ships in 4-12 days

0

17

Ariens 00656151

HANDLEBAR, LOWER - DELUXE

$85.99

$

In Stock, only 1 left!

0

18

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, Qty 6

0

20

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 5

0

21

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 5

0

22

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

23

Ariens 00656251

HANDLEBAR, UPPER - RH COMP/DEL

$87.99

$

In Stock, only 1 left!

0

24

Ariens 00656351

HANDLEBAR, UPPER - LH COMP/DEL

$38.99

$

Usually ships in 4-12 days

0

25

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, only 2 left!

0

26

Ariens 00398351

PADDLE, CLUTCH - RH COMPACT

$25.99

$

In Stock, only 2 left!

0

27

Ariens 05500040

SPACER, HANDLEBAR

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 08300026

SPRING, TORSION

$6.49

$

Usually ships in 4-12 days

0

29

Ariens 00399300

BSHG, FLG .266X.42X.150 PM

$4.49

$

In Stock, only 2 left!

0

30

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 6

0

31

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 17

0

32

Ariens 03387000

WELDMENT, INTERLOCK SHAFT

$63.99

$

Usually ships in 4-12 days

0

33

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 08300432

SPRING, EXTENSION

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 06900312

CABLE, ATTACHMENT

$37.99

$

In Stock, only 3 left!

0

36

Ariens 00398151

PADDLE, CLUTCH - LH COMPACT

$42.99

$

In Stock, only 2 left!

0

37

Ariens 06900301

CABLE, TRACTION - DELUXE

$22.99

$

In Stock, only 2 left!

0

38

Ariens 06200009

BLT-RDHDXLSQNK .31-18X1.5 G5YZ
(Superseded to 06119100)

$

$

Not available

39

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 00398451

BRACKET, SHIFT MOUNT

$

$

Not available

41

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

42

Ariens 00386700

PIVOT,SHIFT ROD .375-16(TRUNN)

$8.49

$

In Stock, Qty 7

0

43

Ariens 00494900

ROD, SHIFT - LOWER
(Superseded to 00494967)

$29.99

$

Usually ships in 4-12 days

0

44

Ariens 00494800

ROD, SHIFT - UPPER
(Superseded to 00494867)

$35.99

$

Usually ships in 4-12 days

0

45

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$5.49

$

Usually ships in 4-12 days

0

47

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

48

Ariens 00446700

BUMPER PAD
(Superseded to 07500103)

$3.99

$

In Stock, only 2 left!

0

49

Ariens 05965300

@BLT-HEX .25-20X3.25 YWZC

$2.49

$

In Stock, only 4 left!

0

50

Ariens 00589800

BSHG, SLV .266 X .750 X .750

$3.99

$

Usually ships in 4-12 days

0

51

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 1 left!

0

52

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

53

Ariens 03387151

STRAP, SUPPORT - DASH PANEL

$17.99

$

Usually ships in 4-12 days

0

54

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

55

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

56

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+
