921302 (ST 824 LET) - Ariens 24" Snow Blower, 8hp Tecumseh (SN: 000101 & Above) Track And Axles Parts Diagram

24" Snow Blower, 8hp Tecumseh

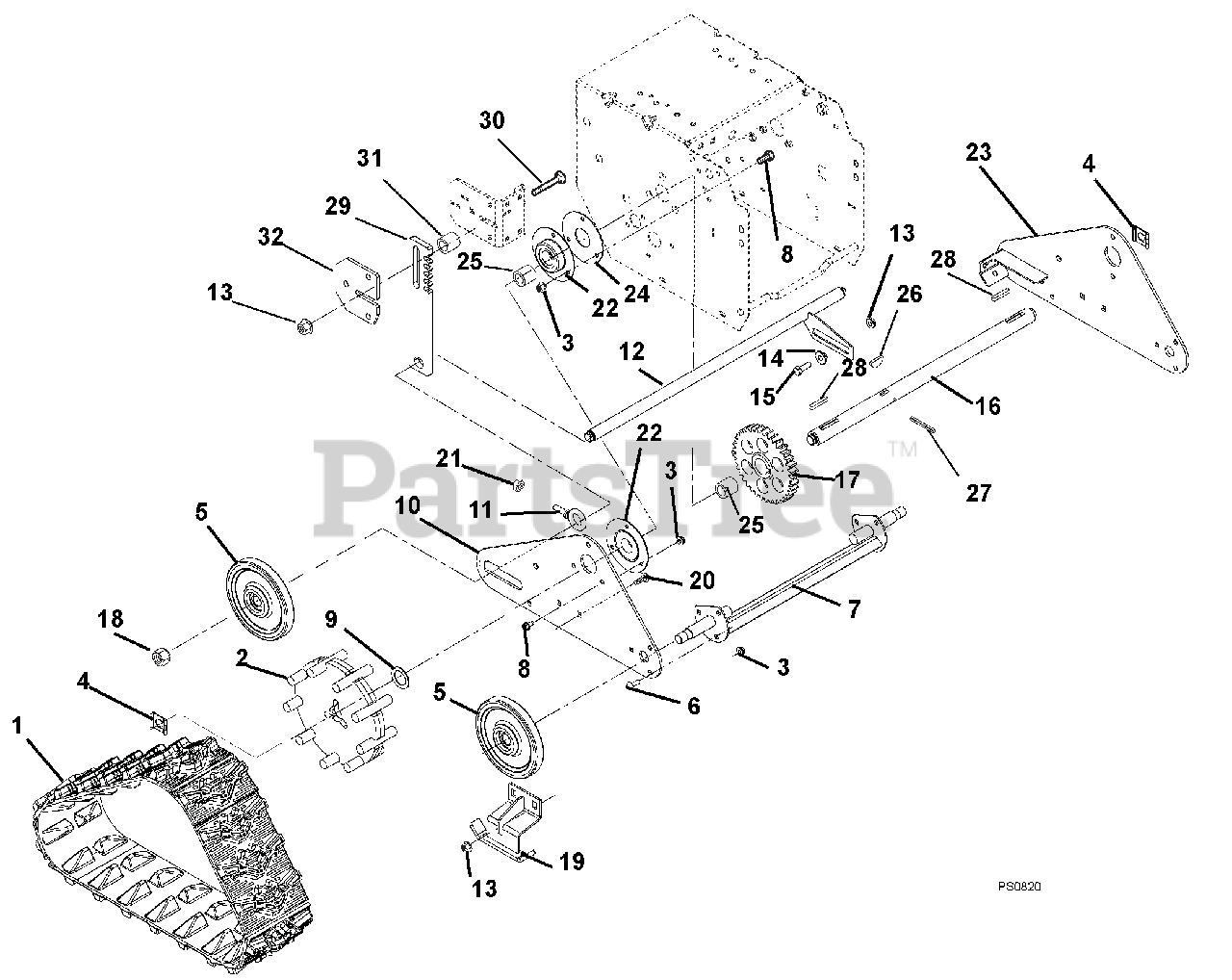

Track And Axles Parts Diagram

  • Title

1

Ariens 00669700

TRACK, RUBBER

$215.99

$

Usually ships in 4-12 days

0

2

Ariens 00670351

WHEEL, DRIVE-TRACK

$221.99

$

Usually ships in 4-12 days

0

3

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

4

Ariens 05700001

CLIP, SNAP .625 DIA

$2.99

$

In Stock, Qty 20+

0

5

Ariens 03293600

WHEEL, BOGIE - SINGLE BEARING

$29.99

$

Usually ships in 4-12 days

0

6

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

7

Ariens 03275800

AXLE, FRONT-DELUXE TRACK

$79.99

$

Usually ships in 4-12 days

0

8

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

9

Ariens 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 18

0

10

Ariens 03375751

SIDE PLATE, RH-DELUXE TRACK

$79.99

$

Usually ships in 4-12 days

0

11

Ariens 07000040

BLT-EYE .375-16X.880 YWZC

$7.49

$

Usually ships in 4-12 days

0

12

Ariens 03293700

AXLE, REAR - DELUXE TRACK

$65.99

$

Usually ships in 4-12 days

0

13

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, Qty 20+

0

15

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

16

Ariens 03291500

AXLE, TRACK-DELUXE

$81.99

$

Usually ships in 4-12 days

0

17

Ariens 00371000

GEAR, SPUR

$54.99

$

In Stock, only 2 left!

0

18

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$4.99

$

In Stock, Qty 12

0

19

Ariens 00660751

RUNNER, GUIDE-TRACK

$23.99

$

Usually ships in 4-12 days

0

20

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.99

$

In Stock, Qty 20+

0

21

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05400706

BRG-FLG 1.003/1.000 3 BOLT
(Superseded to 05400723)

$44.99

$

In Stock, Qty 7

0

23

Ariens 03375851

SIDE PLATE, LH-DELUXE TRACK

$79.99

$

Usually ships in 4-12 days

0

24

Ariens 03389051

PLATE, BEARING SPACER
(Superseded to 04796351)

$14.99

$

Usually ships in 4-12 days

0

25

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 15

0

26

Ariens 06601200

KEY-WDRF .25X.750X.313 SAE91

$3.49

$

In Stock, Qty 19

0

27

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 14

0

28

Ariens 06600002

KEY-RECT .25X.188X1.00

$1.49

$

In Stock, Qty 12

0

29

Ariens 03293851

STOP, HEIGHT ADJUSTER - DELUXE

$52.99

$

Usually ships in 4-12 days

0

30

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.99

$

In Stock, only 3 left!

0

31

Ariens 01103100

SPACER .50 X .32 X .42

$3.99

$

In Stock, only 4 left!

0

32

Ariens 03294151

PLATE, HEIGHT ADJUSTER

$10.99

$

Usually ships in 4-12 days

0
