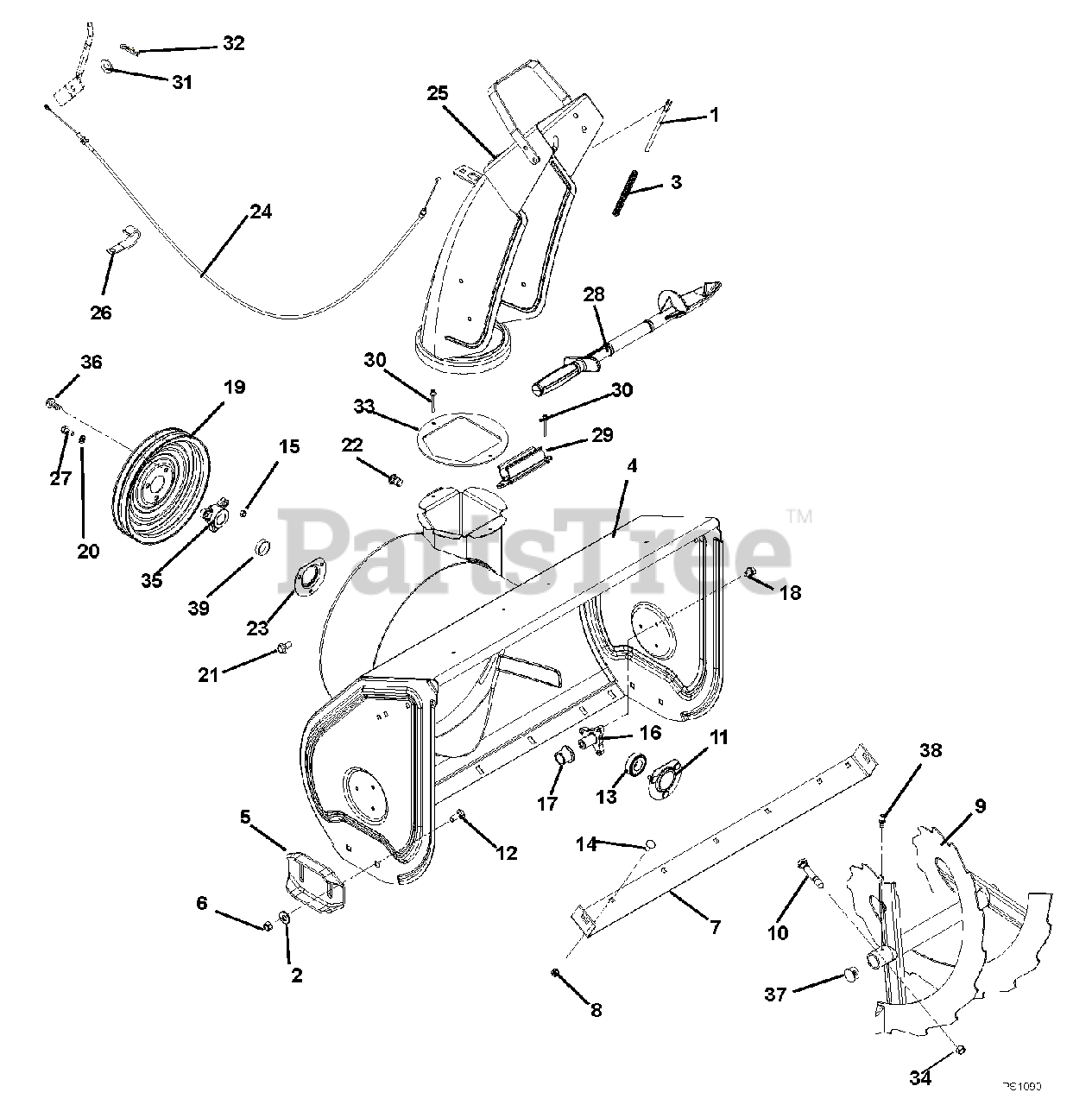

921311 - Ariens Deluxe 24" Track Snow Blower, Briggs & Stratton (SN: 000201 & Above) Chute And Auger Parts Diagram

Deluxe 24" Track Snow Blower, Briggs & Stratton

Chute And Auger Parts Diagram

  • Title

1

Ariens 00389000

ROD, DEFLECTOR CAP

$15.99

$

In Stock, only 3 left!

0

2

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

3

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.99

$

In Stock, only 1 left!

0

4

Ariens 52101700

BLOWER HOUSING W/DECAL 24"

Note: (921017, 309, 311)

$395.99

$

Usually ships in 4-12 days

0

4

Ariens 52103300

BLOWER HOUSING, 28"

Note: (921022, 023, 304, 308)

$346.99

$

Usually ships in 4-12 days

0

4

Ariens 52101900

BLOWER HOUSING W/DECAL 30"

Note: (921013, 018, 307)

$380.99

$

Usually ships in 4-12 days

0

5

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$20.99

$

In Stock, Qty 9

0

6

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 00658559

BLADE, SCRAPER-24"

Note: (921017, 309, 311)

$36.99

$

In Stock, Qty 6

0

7

Ariens 04145959

BLADE, SCRAPER - 28"

Note: (921022, 023, 304, 308)

$34.99

$

In Stock, Qty 7

0

7

Ariens 00661159

BLADE, SCRAPER-30"

Note: (921013, 018, 307)

$47.99

$

In Stock, Qty 17

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (921017, 022, 023, 304, 308, 309, 311)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (921013, 018, 307)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 52102600

RAKE, LH W/ZERK - 24"

Note: (14" O.D.) (921017, 309, 311)

$97.99

$

In Stock, only 1 left!

0

9

Ariens 52102700

RAKE, RH W/ZERK - 24"

Note: (14" O.D.) (921017, 309, 311)

$96.99

$

Usually ships in 4-12 days

0

9

Ariens 52103400

RAKE, LH W/ZERK - 28"

Note: (14" O.D.) (921022, 023, 304, 308)

$110.99

$

In Stock, only 2 left!

0

9

Ariens 52103500

RAKE, RH W/ZERK - 28"

Note: (14" O.D.) (921022, 023, 304, 308)

$110.99

$

In Stock, only 1 left!

0

9

Ariens 52103000

RAKE, LH W/ZERK - 30"

Note: (14" O.D.) (921013, 018, 307)

$122.99

$

In Stock, only 3 left!

0

9

Ariens 52103100

RAKE, RH W/ZERK - 30"

Note: (14" O.D.) (921013, 018, 307)

$112.99

$

In Stock, only 4 left!

0

10

Ariens 52100100

SHEAR BOLT SERVICE ASSEMBLY

Note: (Includes Item 34)

$3.49

$

In Stock, Qty 6

0

11

Ariens 00428700

BEARING FLANGE

$19.99

$

In Stock, only 3 left!

0

12

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

13

Ariens 05409300

BRG-BALL .876 X 1.750 X .50

Note: (921013, 017, 018, 022, 304, 307)

$37.99

$

In Stock, only 3 left!

0

13

Ariens 05400713

BRG-BALL .876X1.75X.50 RSTFP

Note: (921023, 308, 309, 311)

$41.99

$

In Stock, Qty 7

0

14

Ariens 06200120

BLT,RDSHHDSQSHNK .31-18X.62 YZ
(Superseded to 06200209)

Note: (921017, 022, 023, 304, 308, 309, 311)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06200120

BLT,RDSHHDSQSHNK .31-18X.62 YZ
(Superseded to 06200209)

Note: (921013, 018, 307)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 00659200

SUPPORT, RAKE BUSHING

$21.99

$

In Stock, Qty 12

0

17

Ariens 05500114

BSHG-FLG, NY.778 ID X 1.018 OD

$3.99

$

In Stock, Qty 11

0

18

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 00268751

PULLEY, SPIN FORM DUAL GROOVE

$40.99

$

In Stock, only 2 left!

0

20

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 5

0

21

Ariens 07400030

SCR-TAP.31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$2.99

$

Usually ships in 4-12 days

0

23

Ariens 01014200

BEARING FLANGE

$6.49

$

In Stock, Qty 6

0

24

Ariens 06900406

CABLE, DEFLECTOR-COATED

Note: (921013, 018, 022, 023, 304, 307, 308, 309, 311)

$50.99

$

In Stock, only 2 left!

0

24

Ariens 06900428

CABLE, DEFLECTOR - SMALL DLX

Note: (921022)

$37.99

$

Usually ships in 4-12 days

0

25

Ariens 52602200

CHUTE, DISCHARGE-W/DEFLECTOR

Note: (921017, 018)

$162.99

$

Usually ships in 4-12 days

0

25

Ariens 52609000

CHUTE, DISCHARGE W/CAP & DECAL

Note: (921013, 022, 023, 304, 308, 309, 311)

$137.99

$

Usually ships in 4-12 days

0

26

Ariens 06909400

J-CLAMP

Note: (921013, 016, 017, 018, 020, 306, 307, 311, 312)

$3.99

$

In Stock, only 2 left!

0

27

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.99

$

In Stock, only 1 left!

0

28

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$22.99

$

In Stock, Qty 7

0

29

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$12.99

$

In Stock, only 2 left!

0

30

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$1.49

$

In Stock, only 3 left!

0

31

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

32

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

33

Ariens 00600100

BAFFLE, DISCHARGE NECK

$14.99

$

In Stock, only 2 left!

0

34

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Included in Item 10)

$1.99

$

In Stock, Qty 20+

0

35

Ariens 00268702

PULLEY HUB, D-BORE .87 DELUXE

$15.99

$

In Stock, only 2 left!

0

36

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

37

Ariens 03905800

PLUG
(Superseded to 04444000)

$7.99

$

Usually ships in 4-12 days

0

38

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$4.99

$

In Stock, Qty 11

0

39

Ariens 05500940

BSHG-SPCR .895IDX1.065ODX.29

$3.99

$

In Stock, only 1 left!
