921313 - Ariens 28" Power Brush, 6hp Subaru (SN: 000101 - 034999) Engine And Belt Drive Parts Diagram

28" Power Brush, 6hp Subaru

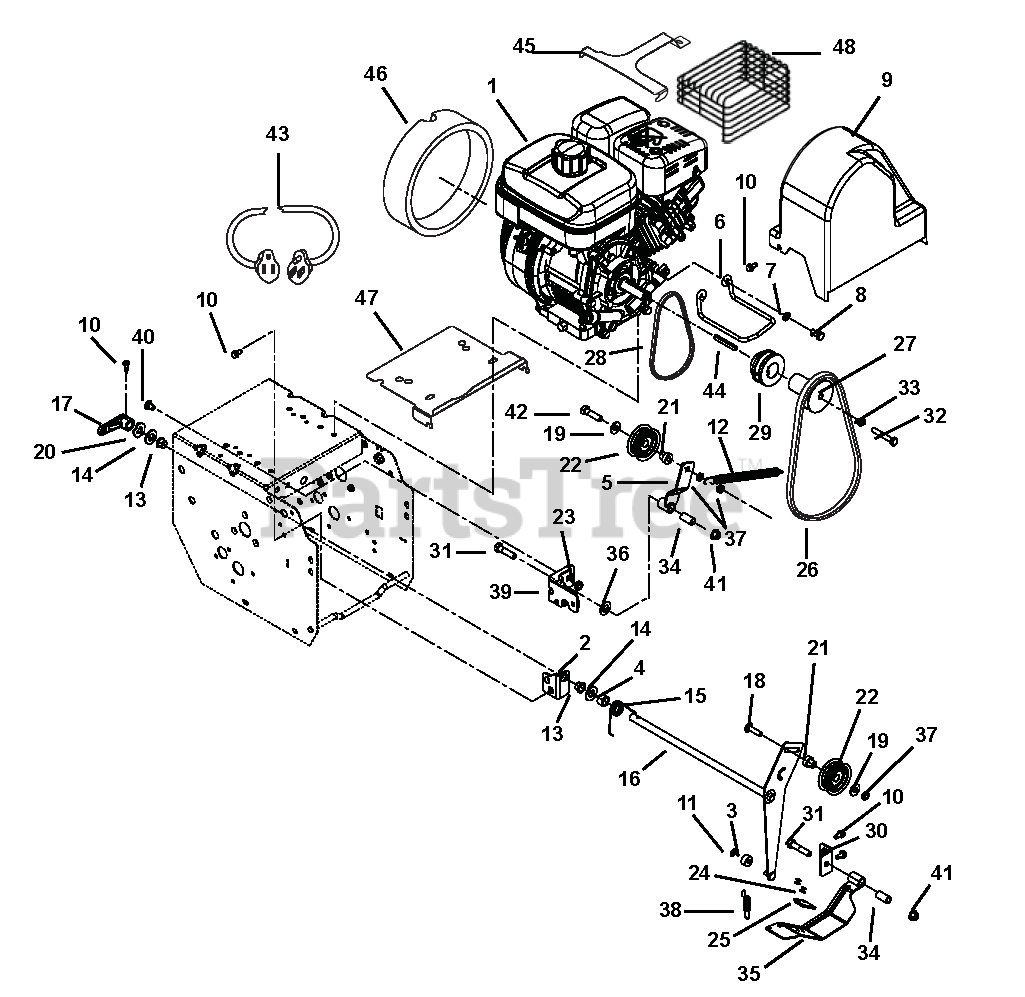

Engine And Belt Drive Parts Diagram

  • Title
1

Ariens 08200611

SUBARU EX17 120V ALL-SEASON

Note: (921025)

$

$

Not available

Ariens 08200706

SUBARU EX17 RECOIL ALL-SEASON

Note: (921313)

$

$

Not available

Ariens 21547200

PLUG, SPARK SUBARU

$3.49

$

In Stock, Qty 11

0

2

Ariens 00495051

BRACKET, MOUNT - IDLER ARM

$13.47

$

Usually ships in 4-12 days

0

3

Ariens 05500820

BSHG,SLV .270 X .750 X .250

$3.52

$

In Stock, Qty 11

0

4

Ariens 05500107

BSHG-SLV .510X.751X.475

$3.58

$

In Stock, Qty 6

0

5

Ariens 00493600

WELDMENT, TRACTION IDLER ARM

$16.38

$

Usually ships in 4-12 days

0

6

Ariens 03731800

BELT FINGER

$17.39

$

Usually ships in 4-12 days

0

7

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$2.24

$

In Stock, Qty 20+

0

8

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$2.24

$

In Stock, Qty 20+

0

9

Ariens 04209900

BELT COVER

$19.68

$

Usually ships in 4-12 days

0

10

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$2.24

$

In Stock, Qty 20+

0

11

Ariens 05717600

RG-RTNG-EXT .250X.010

$1.96

$

In Stock, Qty 20+

0

12

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$11.12

$

In Stock, Qty 14

0

13

Ariens 05500026

BUSHING, POLYLINER-.50 SPLIT

$2.52

$

In Stock, Qty 19

0

14

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.52

$

In Stock, Qty 11

0

15

Ariens 08300326

SG-TORS .075 X .955

$3.30

$

Usually ships in 4-12 days

0

16

Ariens 00495100

WELDMENT, ATTACHMENT IDLER ARM

$

$

Not available

17

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$27.00

$

Usually ships in 4-12 days

0

18

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$2.80

$

Usually ships in 4-12 days

0

19

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.18

$

In Stock, Qty 20+

0

20

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.52

$

In Stock, only 3 left!

0

21

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.30

$

In Stock, only 1 left!

0

22

Ariens 02457400

IDLER
(Superseded to 52007000)

$44.55

$

In Stock, Qty 14

0

23

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$2.80

$

In Stock, Qty 20+

0

24

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (included with item 35)

$1.96

$

In Stock, Qty 5

0

25

Ariens 00180500

PAD, BRAKE

Note: (included with item 35)

$8.89

$

Usually ships in 4-12 days

0

26

Ariens 07238500

V-BELT, HA-RAW EDGE

$30.80

$

In Stock, Qty 20+

0

27

Ariens 00493400

SHEAVE, ATTACHMENT DRIVE
(Superseded to 52006600)

$51.60

$

In Stock, only 1 left!

0

28

Ariens 07200111

V-BELT, 3L-WRAPPED

$19.90

$

In Stock, Qty 20+

0

29

Ariens 00187900

PULLEY, TRACTION

$44.66

$

Usually ships in 4-12 days

0

30

Ariens 00495251

BRACKET, MOUNT - BRAKE

$13.47

$

Usually ships in 4-12 days

0

31

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$2.80

$

In Stock, Qty 20+

0

32

Ariens 05901401

@BLT-HEX .31-24X1.75 GR5 YWZC
(Superseded to 05902007)

$2.91

$

Usually ships in 4-12 days

0

33

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$2.24

$

In Stock, Qty 20+

0

34

Ariens 05500106

BSHG-SLV .385X.500X1.045

$3.63

$

In Stock, only 3 left!

0

35

Ariens 52000500

BRAKE ARM W/PAD

$35.16

$

In Stock, only 1 left!

0

36

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.52

$

In Stock, Qty 20+

0

37

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$2.24

$

Usually ships in 4-12 days

0

38

Ariens 08300104

SPRING-EXT .437 X .438 X 2.64

$3.30

$

In Stock, Qty 12

0

39

Ariens 00657051

WELDMENT, FRAME BRACKET

$26.78

$

Usually ships in 4-12 days

0

40

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$2.46

$

In Stock, Qty 20+

0

41

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$2.24

$

In Stock, Qty 20+

0

42

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$2.24

$

In Stock, only 3 left!

0

43

Ariens 02483100

CORD, ELECTRIC START CORD 120V

Note: (921025)

$18.95

$

In Stock, only 1 left!

0

44

Ariens 06606100

KEY-SQ .188X.75X.188

$3.58

$

In Stock, only 1 left!

0

45

Ariens 04258451

GUARD, SNOW-SUBARU EX17

Note: (921025)

$27.95

$

Usually ships in 4-12 days

0

46

Ariens 03972500

FOAM COVER, RECOIL-SUBARU

$20.07

$

Usually ships in 4-12 days

0

47

Ariens 03880851

BAFFLE,ENGINE,SMALL BLOCK

$49.58

$

Usually ships in 4-12 days

0

48

Ariens 04042300

GUARD,MUFFLER,SUB 20A-37303-11

Note: (921313)

$17.55

$

Usually ships in 4-12 days

0
