921313 - Ariens 28" Power Brush, 6hp Subaru (SN: 042000 - 054999) Brush Frame Parts Diagram

28" Power Brush, 6hp Subaru

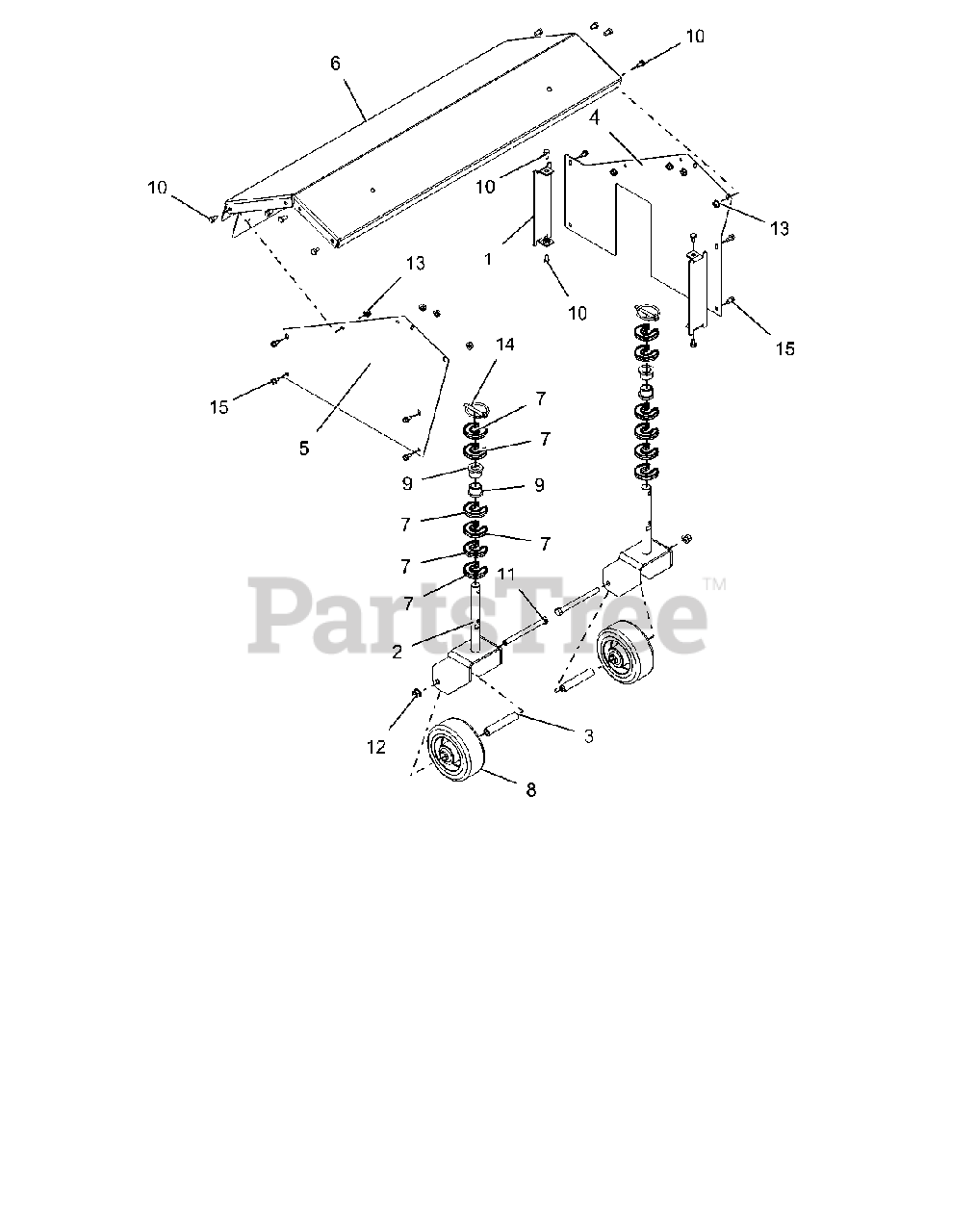

Brush Frame Parts Diagram

  • Title

1

Ariens 00267451

COVER, END (BLACK)

$16.99

$

Usually ships in 4-12 days

0

2

Ariens 03278551

FRAME, CASTER (BLACK)
(Superseded to 09484251)

$62.99

$

Usually ships in 4-12 days

0

3

Ariens 00188000

SPCR, CASTER WHEEL

$11.99

$

Usually ships in 4-12 days

0

4

Ariens 00256659

COVER, LH SIDE-BRUSH (ORANGE)

$50.99

$

Usually ships in 4-12 days

0

5

Ariens 00258159

COVER, RIGHT HAND SIDE (ORANGE)

$50.99

$

Usually ships in 4-12 days

0

6

Ariens 00261559

COVER, TOP - 28" BRUSH

$81.99

$

Usually ships in 4-12 days

0

7

Ariens 03265100

CLIP, HOC FIXED

$3.49

$

In Stock, Qty 20+

0

8

Ariens 07101101

WHEEL, CASTER - 5" OD

$39.99

$

In Stock, only 1 left!

0

9

Ariens 03985500

BUSHING, FLANGE

$5.99

$

In Stock, Qty 11

0

10

Ariens 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

11

Ariens 05970400

BLT-HEX .38-16X4.50 GR5 YWZC
(Superseded to 05901938)

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 06542000

NUT, LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

14

Ariens 06700204

PIN, LYNCH - .25 X 1.25
(Superseded to 06700226)

$3.99

$

In Stock, Qty 18

0

15

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
