921313 - Ariens 28" Power Brush, 6hp Subaru (SN: 042000 - 054999) Brush Head Parts Diagram

28" Power Brush, 6hp Subaru

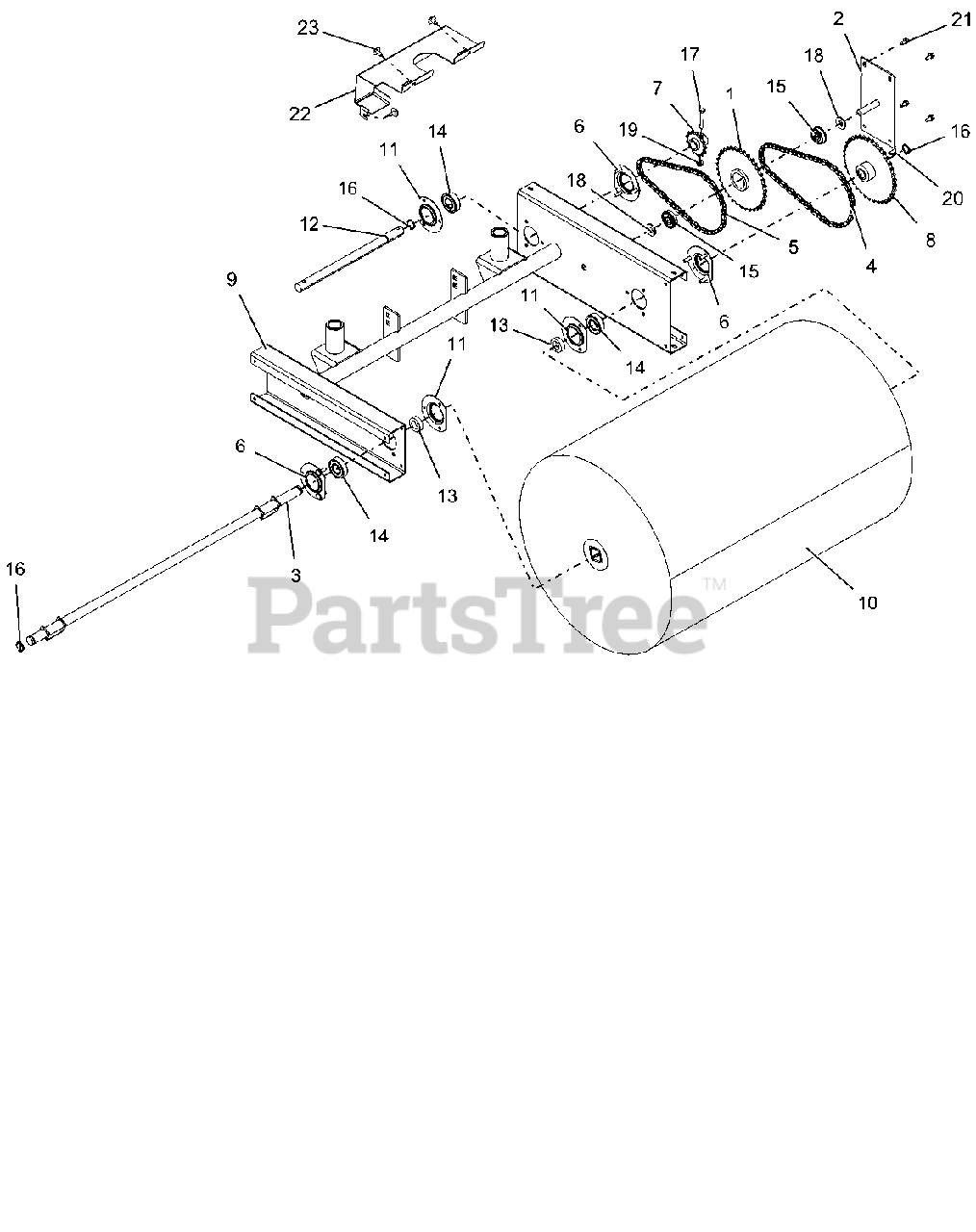

Brush Head Parts Diagram

  • Title

1

Ariens 00180600

SPROCKET, REDUCTION IDLER

$155.99

$

Usually ships in 4-12 days

0

2

Ariens 00180859

MOUNT, REDUCTION IDLER (ORANGE)

$38.99

$

Usually ships in 4-12 days

0

3

Ariens 00181200

SHAFT, 28" BRUSH

$83.99

$

Usually ships in 4-12 days

0

4

Ariens 00368500

CHAIN, #40-54 LINKS

$28.99

$

Usually ships in 4-12 days

0

5

Ariens 00386100

CHAIN, #41-50 LINKS

$28.99

$

Usually ships in 4-12 days

0

6

Ariens 00428700

FLANGE, BEARING

$18.99

$

In Stock, only 1 left!

0

7

Ariens 02997400

SPROCKET, DRIVE

$77.99

$

Usually ships in 4-12 days

0

8

Ariens 02997500

SPROCKET, DRIVEN

$125.99

$

Usually ships in 4-12 days

0

9

Ariens 03278451

FRAME, POWER BROOM-DELUXE (BLACK)

$198.99

$

Usually ships in 4-12 days

0

10

Ariens 00180100

BRUSH, 18" DIA X 28" WIDE

$581.99

$

In Stock, only 1 left!

0

11

Ariens 01014200

FLANGE, BEARING

$5.99

$

In Stock, only 3 left!

0

12

Ariens 02997600

SHAFT, TRANSMISSION

$39.99

$

Usually ships in 4-12 days

0

13

Ariens 03634600

SPACER, .755x1.250x.370

$7.99

$

Usually ships in 4-12 days

0

14

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, only 2 left!

0

15

Ariens 05480000

BRG, BALL .501 X 1.38 X .438 SEALED

$12.99

$

In Stock, Qty 5

0

16

Ariens 05714600

RG-RTNG-EXT .750x.078

$2.49

$

In Stock, Qty 5

0

17

Ariens 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

18

Ariens 06400828

WSHR-FL-STL .536X1.070X.109 YWZC

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06543500

NUT, LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

20

Ariens 06600300

KEY, WDRF - .188X.75X.313 REV

$1.49

$

In Stock, Qty 7

0

21

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 04363451

COVER, FRONT SHAFT - CE (BLACK)

$

$

Not available

23

Ariens 07400104

SCR, TAP .25-20X.50 LGHWH TR
(Superseded to 07400138)

$1.49

$

In Stock, Qty 7

0
