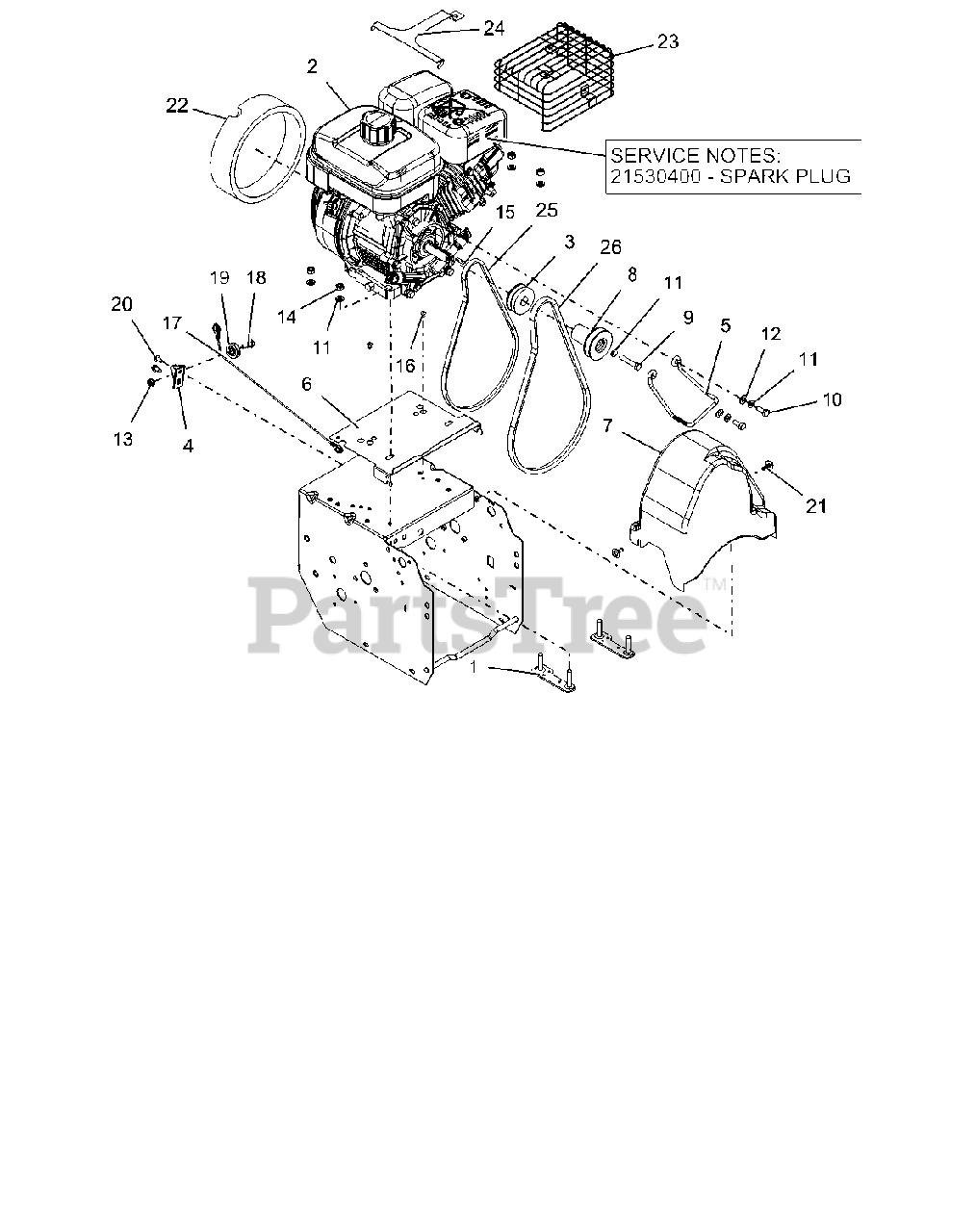

921313 - Ariens 28" Power Brush, 6hp Subaru (SN: 042000 - 054999) Engine Parts Diagram

28" Power Brush, 6hp Subaru

Engine Parts Diagram

  • Title
1

Ariens 00188400

WLDMT, STRAP ENGINE BOLT

$19.12

$

Usually ships in 4-12 days

0

2

Ariens 08200706

ENGINE, SUBARU - EX17 120V ALL SEASON RECOIL

$

$

Not available

2

Ariens 21530400

SPARK PLUG

Note: SERVICE PART

$4.42

$

Usually ships in 4-12 days

0

3

Ariens 00187900

PULLEY, TRACTION

$44.66

$

Usually ships in 4-12 days

0

4

Ariens 00373051

BRKT, CABLE PULLEY

$20.24

$

In Stock, only 1 left!

0

5

Ariens 03731800

FINGER, BELT

$17.39

$

Usually ships in 4-12 days

0

6

Ariens 04895151

BAFFLE, COMPACT

Note: (BLACK)

$6.71

$

Usually ships in 4-12 days

0

7

Ariens 04209900

COVER, BELT

$19.68

$

Usually ships in 4-12 days

0

8

Ariens 04502900

SHEAVE, AUGER DRIVE

$20.07

$

Usually ships in 4-12 days

0

9

Ariens 05901401

BLT-HEX .31-24X1.75 GR5 YWZC
(Superseded to 05902007)

$2.91

$

Usually ships in 4-12 days

0

10

Ariens 05947300

BLT-HEX .31-24X.75 GR5 YWZC
(Superseded to 05902014)

$2.24

$

In Stock, Qty 20+

0

11

Ariens 06307400

WSHR-LK .31X.097 HVY YWZC
(Superseded to 06300123)

$2.24

$

In Stock, Qty 20+

0

12

Ariens 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$2.52

$

In Stock, Qty 20+

0

13

Ariens 06500710

NUT, LK-CTR-FLG .25-20 YWZC
(Superseded to 06500821)

$1.96

$

In Stock, Qty 8

0

14

Ariens 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.96

$

In Stock, Qty 20+

0

15

Ariens 06606100

KEY-SQ .188X.188X.750

$3.58

$

In Stock, only 1 left!

0

16

Ariens 06800028

RVT-POP .187x.250 (#64) YWZC
(Superseded to 06800140)

$1.96

$

In Stock, Qty 5

0

17

Ariens 06900505

CABLE, LOWER TRACTION

Note: (DELUXE)

$21.19

$

In Stock, Qty 7

0

18

Ariens 07000021

BOLT, SHLDR -.375 X .375 X .25-20
(Superseded to 07001737)

$3.58

$

Usually ships in 4-12 days

0

19

Ariens 07300012

PULLEY, CABLE

$6.65

$

In Stock, Qty 8

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$2.24

$

In Stock, Qty 20+

0

21

Ariens 07400108

SCR, TAP .25-20 X.5 CAPTIVE

$2.80

$

In Stock, Qty 7

0

22

Ariens 03972500

COVER, FOAM - SUBARU RECOIL

$20.07

$

Usually ships in 4-12 days

0

23

Ariens 04042300

GUARD, MUFFLER - SUBARU

$17.55

$

Usually ships in 4-12 days

0

24

Ariens 04258451

GUARD, SNO - ASUBARU EX17

Note: BLACK

$27.95

$

Usually ships in 4-12 days

0

25

Ariens 07200111

V-BELT, 3L-WRAPPED CLUTCHING

Note: (NO RUBBER BLEED THRU)

$19.90

$

In Stock, Qty 20+

0

26

Ariens 07238500

V-BELT, HA-Raw Edge Laminated

$30.80

$

In Stock, Qty 20+

0
