921313 - Ariens 28" Power Brush, 6hp Subaru (SN: 042000 - 054999) Reduction Drive Parts Diagram

28" Power Brush, 6hp Subaru

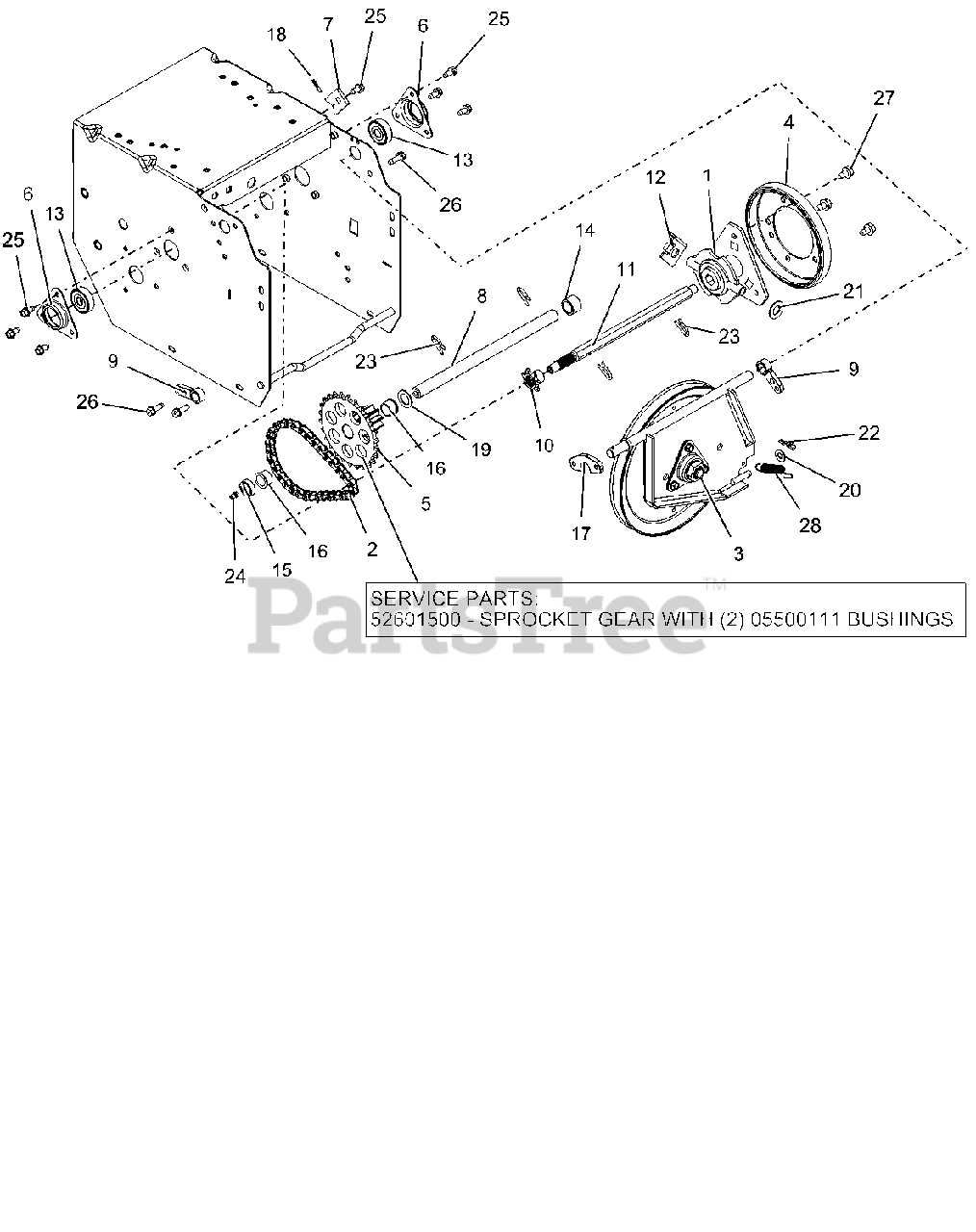

Reduction Drive Parts Diagram

  • Title
1

Ariens 00383100

CARRIER, DRIVE DISK

$58.08

$

In Stock, only 1 left!

0

2

Ariens 02466200

CHAIN, ROLLER - #41 w/32 PITCHES

$5.53

$

In Stock, only 2 left!

0

3

Ariens 52105000

PLATE, SWING-ASSY

$51.60

$

In Stock, only 1 left!

0

4

Ariens 00170800

DISC, FRICTION
(Superseded to 04743700)

$

$

Not available

5

Ariens 00190600

PINION, SPROCKET

$39.07

$

Usually ships in 4-12 days

0

5

Ariens 52601500

SPROCKET GEAR

Note: SERVICE PART

$67.02

$

In Stock, only 1 left!

0

5

Ariens 05500111

BUSHING

Note: SERVICE PART

$3.63

$

In Stock, Qty 20+

0

6

Ariens 00383000

FLANGE, BRG

$12.24

$

In Stock, Qty 6

0

7

Ariens 00503500

TAB, ANTI - ROTATION

$7.32

$

In Stock, only 1 left!

0

8

Ariens 00657900

SHAFT, PINION

$29.68

$

In Stock, Qty 6

0

9

Ariens 03374500

BSHG, SUPPORT - SWING GATE

$3.63

$

In Stock, only 2 left!

0

10

Ariens 04092600

SPROCKET, PINION 7T W/SPLINE

$5.53

$

In Stock, Qty 6

0

11

Ariens 04149500

SHAFT, HEX W/SPLINE

$30.69

$

In Stock, only 1 left!

0

12

Ariens 04671900

BRKT, FORMED - SHIFT FORK

$7.55

$

In Stock, only 1 left!

0

13

Ariens 05435200

BRG-BALL .437X1.375X.437

$16.71

$

In Stock, Qty 20+

0

14

Ariens 05500029

SPCR, .635 X .880 X .611

$3.63

$

In Stock, only 2 left!

0

15

Ariens 05500035

BSHG, SLV , .635X.880X.305

$3.63

$

In Stock, Qty 8

0

16

Ariens 05500111

BSHG, FLG .625 X .750 X .500 X .875

$3.63

$

In Stock, Qty 20+

0

17

Ariens 05500113

SPCR, SWING GATE

$5.53

$

In Stock, only 1 left!

0

18

Ariens 05800205

PIN-GRV .125X1.00 TP E

$2.46

$

In Stock, only 2 left!

0

19

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YWZC
(Superseded to 06401117)

$2.24

$

In Stock, Qty 20+

0

20

Ariens 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$2.52

$

In Stock, Qty 20+

0

21

Ariens 06439200

WSHR-FL-STL .505X1.00X.062 YWZC
(Superseded to 06401112)

$2.52

$

In Stock, Qty 20+

0

22

Ariens 06713500

PIN, HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.96

$

In Stock, Qty 20+

0

23

Ariens 06714500

PIN, SPRING CLIP

$2.24

$

In Stock, Qty 20+

0

24

Ariens 07061300

ZERK, FITTING .25X.125 DRIVE IN

$3.63

$

In Stock, Qty 8

0

25

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$2.24

$

In Stock, Qty 20+

0

26

Ariens 07400111

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$2.24

$

In Stock, Qty 11

0

27

Ariens 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$2.24

$

In Stock, Qty 20+

0

28

Ariens 08300036

SPRG, EXTENSION

$5.53

$

In Stock, Qty 5

0
